Xenon Weatherometer
Irradiance Range:35~150 W/㎡
Bandwidth Measurement:300nm~400nm (340nm or 420nm)
Model:XL-S-750
Specimen Capacity:42pcs
Chamber Temperature Range:Ambient ～ 100 ℃ ±2℃
Black Panel Temperature:BPT 35 ～ 85 ℃ ±2℃
Xenon Weatherometer Manufacturer & Supplier
LIB industry's Xenon Weatherometer, replicates sunlight radiation, allowing for precise testing of materials' response to prolonged exposure to sunlight. It assists in understanding the impact of sunlight radiation on the aging and degradation of various materials, including polymers, composites, and outdoor coatings.
The weatherometer enables colorfastness testing for textiles, paints, and dyes by replicating real-world conditions, including light exposure, humidity, and temperature variations.
Technical Specifications
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Humidification System | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Product Details
|
|
|

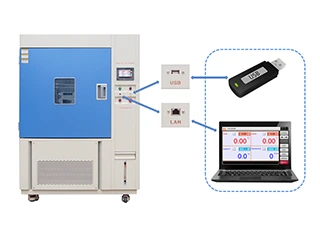

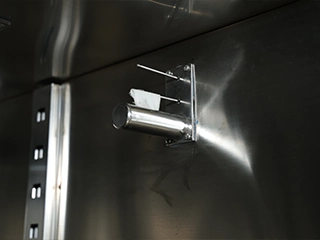

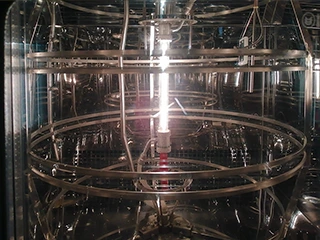

| Irradiation Source Irradiation Source with 1 piece of 4500 W water-cooled xenon lamp Various filters available for choose | Sensor PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees. | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
|
|
Xenon Weatherometer Features
●Customizable Test Cycles: It offers customizable test cycles, allowing users to define specific exposure scenarios, including variable light intensity, temperature ramp rates, and humidity fluctuations.
●Data Logging and Analysis: The instrument is equipped with advanced data logging capabilities, enabling continuous monitoring and recording of key parameters such as irradiance levels, sample temperatures, and relative humidity.
●Uniform Exposure Distribution: it ensures uniform distribution of exposure across the entire test area, providing a consistent evaluation of material performance.
●Remote Monitoring and Control: The instrument supports remote monitoring and control functions, allowing users to oversee testing processes and make real-time adjustments from external devices.
●Compliance with International Standards: It adheres to international testing standards and regulatory requirements, making it an indispensable tool for R&D, quality assurance, and product development efforts worldwide.
Application
Xenon Weatherometer is widely used in various industries, including Automotive: Testing automotive paints, coatings, and interior materials Aerospace: Evaluating the durability of aircraft components and materials Textiles: Assessing the colorfastness and durability of textiles and fabrics Plastics: Testing the weather resistance of plastic products and components Construction: Evaluating the performance of building materials.
FAQ
Q: What type of light source does the Xenon Weatherometers use?
A: It utilizes a water cooled xenon arc lamp for precise simulation of sunlight.
Q: Can the temperature and humidity levels be adjusted during testing?
A: Yes, the xenon chamber allows for precise control and adjustment of temperature and humidity parameters to simulate various environmental conditions.
Q: Is the Xenon Weatherometer suitable for outdoor weathering simulation?
A: Yes, it accurately replicates outdoor weathering conditions, allowing for accelerated testing of material durability.
