Xenon Arc Chamber
Irradiance Range:35~150 W/㎡
Bandwidth Measurement:300nm~400nm (340nm or 420nm)
Black Panel Temperature:BPT 35 ～ 85 ℃ ±2℃
Humidity Range:50% ~ 98% RH
Humidity Deviation:± 5% RH
Water Spray Cycle:1~9999H59M (Adjustable)

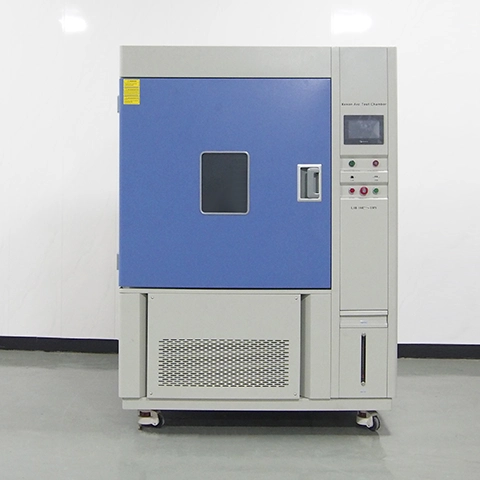

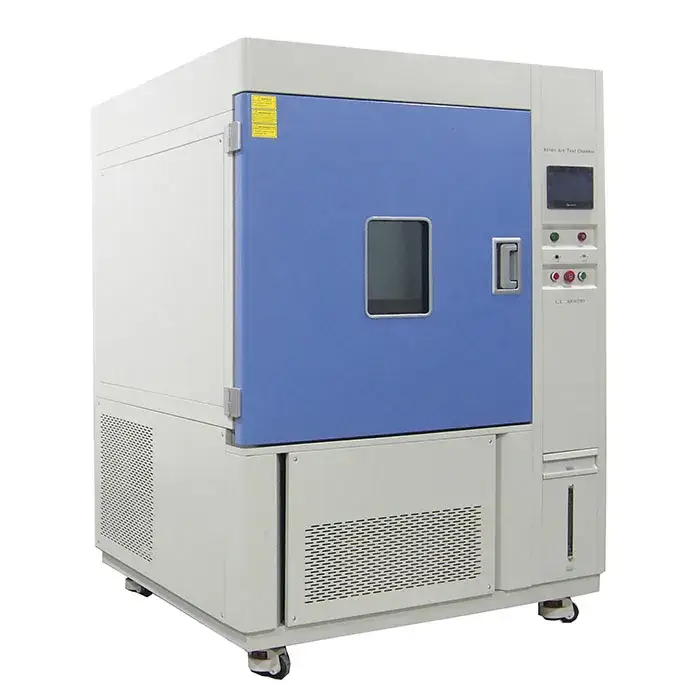

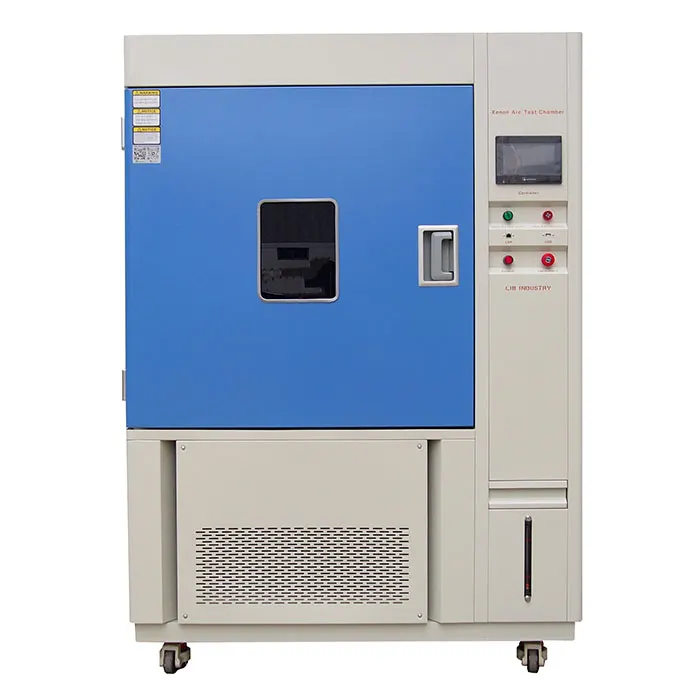

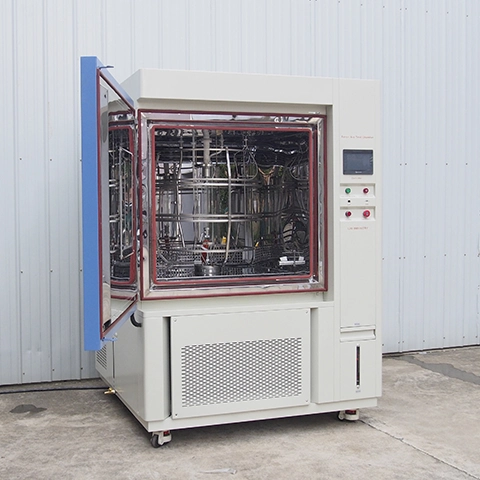

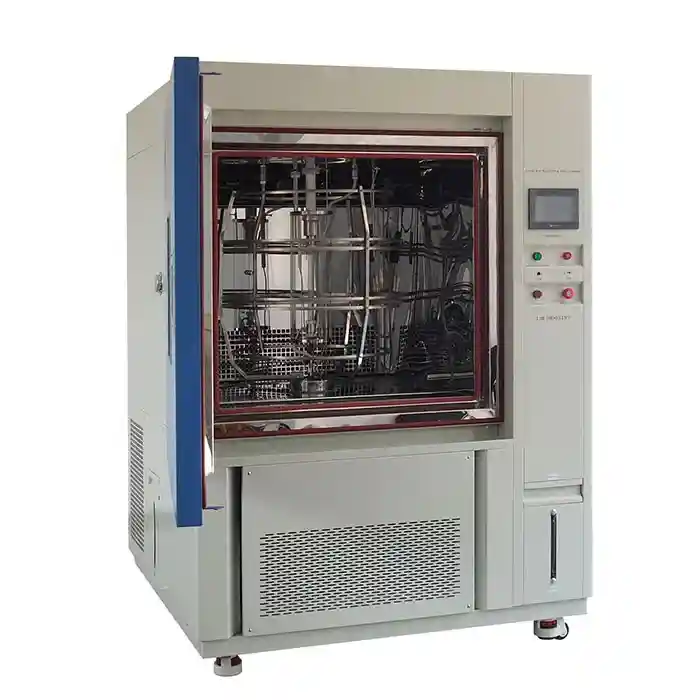

Xenon Arc Chamber Manufacturer & Supplier
The Xenon Arc Chamber, manufactured by LIB industry, is an advanced weathering testing equipment designed to simulate and accelerate the effects of outdoor exposure on various materials. With precise control over light, temperature, and humidity, this chamber provides valuable insights into the durability and performance of materials under harsh environmental conditions.
The xenon lamp aging test chamber complies with industry standards for weathering testing, including ASTM, ISO, ensuring the reliability and accuracy of test results.
Technical Specifications
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Humidification System | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Product Details
|
|
|

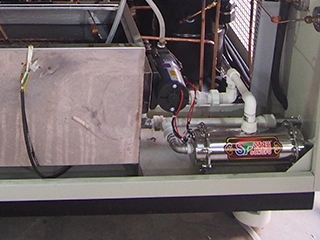

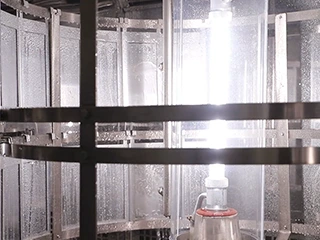

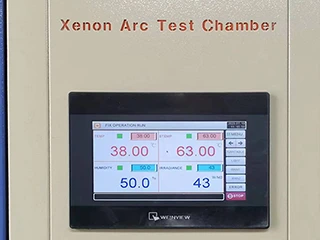

| Controller PID programmable color touch screen controller network connection computer. Can create120 programs 100 segment. | Irradiation Source Irradiation Source with 1 piece of 4500 W water-cooled xenon lamp Various filters available for choose | Water Re-circulation Water purifier: mainly purification from water source to water tank. Automatic water supply |
|
|
Advantages
The xenon arc chamber's key advantages include:
●Customization for diverse testing needs
●Precise and reliable performance
●User-friendly operation
●Durable construction for longevity
●Realistic simulation of outdoor conditions
●Energy-efficient xenon lamps
●Comprehensive data monitoring
Applications
Paints and Coatings
Plastics and Polymers
Textiles and Fabrics
Automotive Components
Building Materials
Aerospace Industry
FAQ
Q: What warranty does the Xenon Arc Chamber come with?
A: LIB offers 36 months long warranty and long life service.
Q: Can the chamber simulate extreme conditions accurately?
A: Yes, the chamber replicates extreme conditions. Tell us about your requirements, let us help you.
