UV Aging Chamber
Irradiation Source: Fluorescent UV lamps (8) - 40 W
Temperature Range:Ambient ～ 90 ℃ ±2℃
Bandwidth:290 ~ 400nm
Humidity Range:≥95% RH
Bandwidth:290 ~ 400nm
Irradiance Control:0.3~20 W/㎡
UV Aging Chamber Manufacturer & Supplier
LIB industry is a leading manufacturer and supplier of UV aging chamber designed to meet the diverse testing needs of industries worldwide. It is engineered to simulate the effects of UV light exposure on various materials and products, ensuring comprehensive evaluation of their durability and performance under accelerated aging conditions.
Our chambers comply with international standards such as ASTM G154, ISO 4892-3, and ASTM D4329.
Technical Specifications
Model | UV-SI-260 |
Internal Dimension (mm) | 450*1170*500 |
Overall Dimension (mm) | 610*1330*1470 |
Specimen Holder Size(mm) | 75*150 |
Specimen Capacity | 56 Pieces |
Irradiation Source | Fluorescent UV lamps (8) - 40 W |
Temperature Range | Ambient ～ 90 ℃ ±2℃ |
Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
Humidity Range | ≥95% RH |
Bandwidth | 290 ~ 400nm |
Irradiance Control | 0.3~20 W/㎡ |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Distance of Specimen and lamp | 50mm |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Water Supply System | Automatic water supply, Water purification system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Product Details
|
|
|

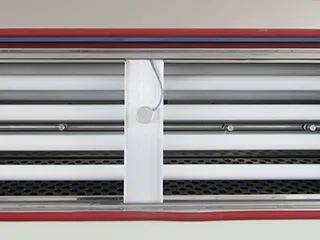

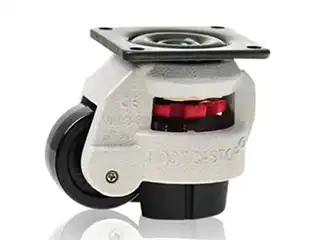

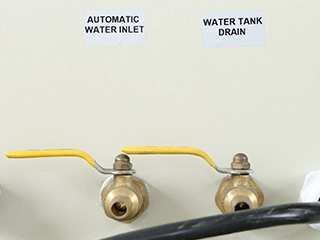

| Irradiation Source UVA 340 nm and UVB 313 nm fluorescent UV lamps are available Easy to change UV lamps | Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable. |
|
|
UV Aging Chamber Key Features
It offers precise control of UV light exposure, temperature, and humidity for accurate simulation of aging conditions. They also provide uniform irradiance distribution for consistent testing results, a user-friendly interface for easy operation and monitoring, compliance with international standards for reliable testing, and comprehensive testing capabilities for evaluating material durability.
UV Aging Chamber Application
Our UV aging chamber finds applications across industries such as plastics, coatings, textiles, and electronics. They are used to test a wide range of products, including plastic materials, coatings, textiles, electronic components, and more, to ensure their long-term performance under UV light exposure.
FAQ
Q: Can the chambers accommodate specific light wavelength requirements?
A: Yes, our chambers can be customized to control the light wavelength for specific testing needs.
Q: What is the lead time for ordering UV aging chamber?
A: 2 weeks, we provide door to door service.
