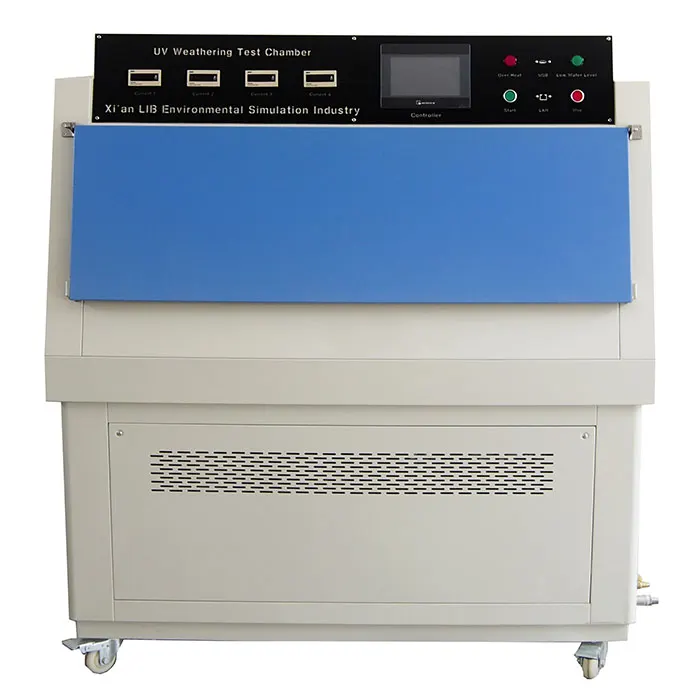

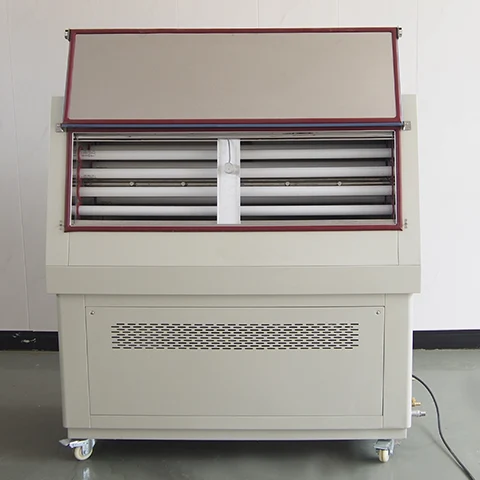

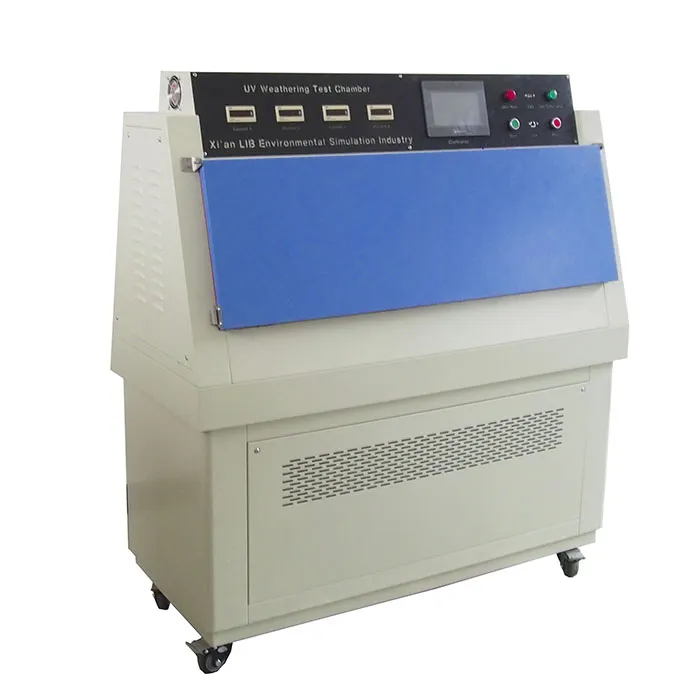

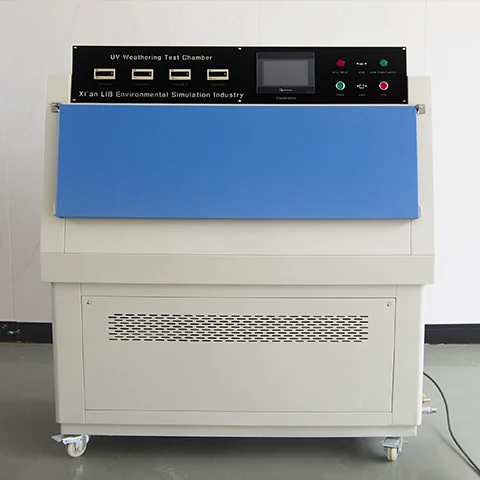

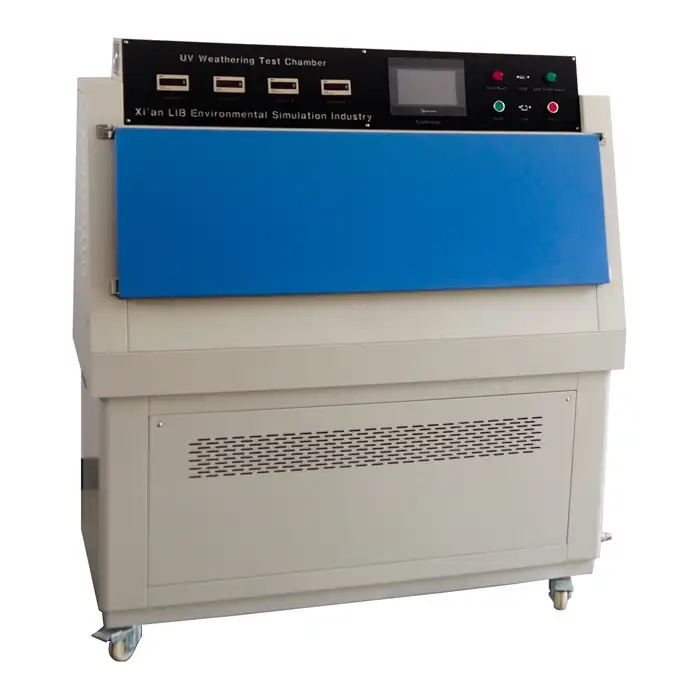

UV Weatherometer
Irradiation Source: Fluorescent UV lamps (8) - 40 W
Temperature Range:Ambient ～ 90 ℃ ±2℃
Humidity Range:≥95% RH
Bandwidth:290 ~ 400nm
Specimen Capacity:56 Pieces
Distance of Specimen and lamp:50mm
UV Weatherometer Manufacturer & Supplier
LIB industry is a leading manufacturer and supplier of advanced uv weatherometer designed to meet the diverse testing needs of industries worldwide. It is meticulously engineered to simulate the effects of outdoor weathering on various materials and products, ensuring comprehensive evaluation of their durability and performance under accelerated weathering conditions.
Our weatherometers adhere to stringent international standards such as ASTM G155, ISO 4892-2, and ASTM D4587.These standards provide guidelines for the operation of weathering chambers, including weatherometers, and specify conditions for exposure that materials should undergo during testing.
Technical Specifications
Model | UV-SI-260 |
Internal Dimension (mm) | 450*1170*500 |
Overall Dimension (mm) | 610*1330*1470 |
Specimen Holder Size(mm) | 75*150 |
Specimen Capacity | 56 Pieces |
Irradiation Source | Fluorescent UV lamps (8) - 40 W |
Temperature Range | Ambient ～ 90 ℃ ±2℃ |
Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
Humidity Range | ≥95% RH |
Bandwidth | 290 ~ 400nm |
Irradiance Control | 0.3~20 W/㎡ |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Distance of Specimen and lamp | 50mm |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Water Supply System | Automatic water supply, Water purification system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Product Details
|
|
|

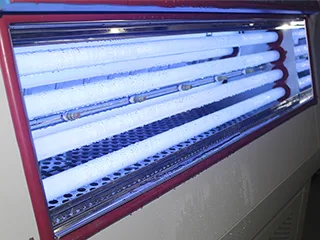

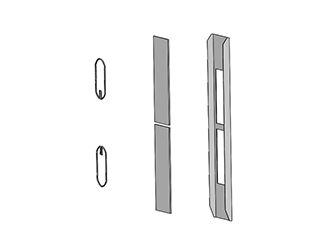

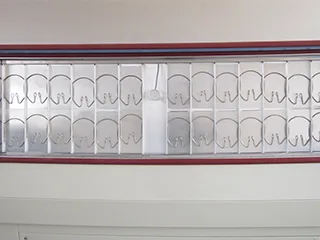

| Workroom The internal material is 304 stainless steel Flat specimen holders, aluminum panels with rings. | Irradiation Source UVA 340 nm and UVB 313 nm fluorescent UV lamps are available Easy to change UV lamps | Sample Shelf Each specimen size is 75mm * 150mm, can hold 56 pieces. Special sample holder can be customized |
|
|
Key Features
Our uv weatherometer offer precise control of light exposure, temperature, and humidity for accurate simulation of outdoor weathering conditions. They also provide uniform irradiance distribution for consistent testing results, a user-friendly interface for easy operation and monitoring, compliance with international standards for reliable testing, and comprehensive testing capabilities for evaluating material durability.
UV Weatherometer Application
Our uv aging test chamber weatherometer finds applications across industries such as automotive, construction, textiles, coatings, and plastics. They are used to test a wide range of products, including paints, coatings, plastics, textiles, automotive components, and more, to ensure their long-term performance under outdoor exposure.
FAQ
Q: Can the UV Weatherometer be programmed for specific exposure cycles?
A: Yes, our weatherometers can be programmed to simulate specific exposure cycles based on your testing requirements.
Q: What is the lead time for ordering weatherometers?
A: 2 weeks, we provide door to door service.
