Weathering Test Chamber
Irradiance Range:35~150 W/㎡
Bandwidth Measurement:300nm~400nm (340nm or 420nm)
Specimen Capacity:42pcs
Chamber Temperature Range:Ambient ～ 100 ℃ ±2℃
Black Panel Temperature:BPT 35 ～ 85 ℃ ±2℃
Humidity Range:50% ~ 98% RH

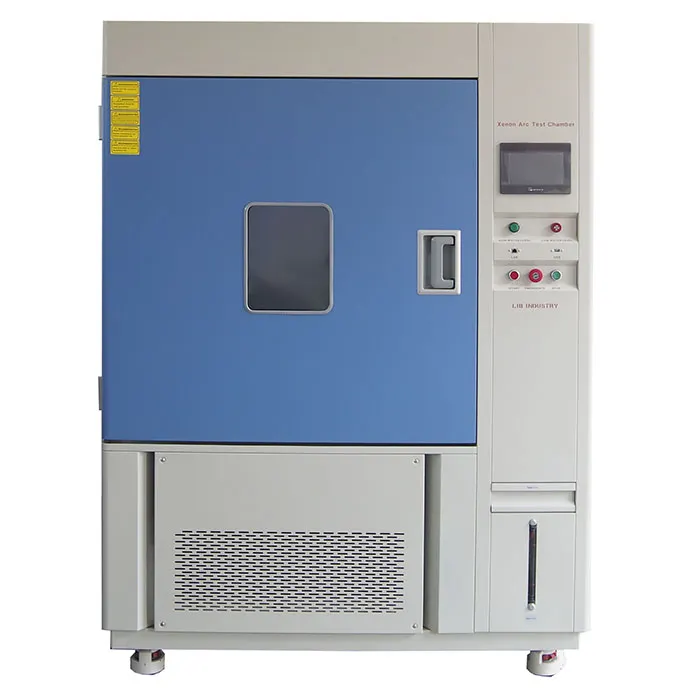

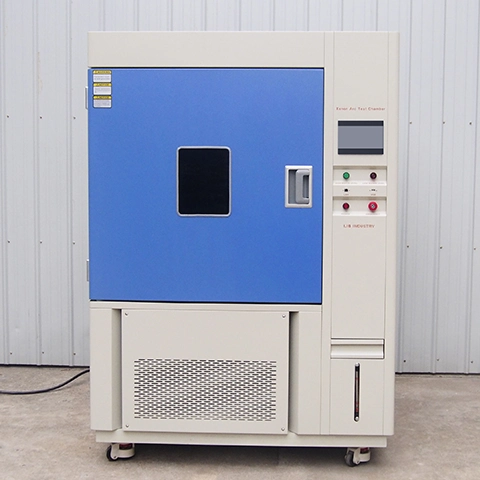

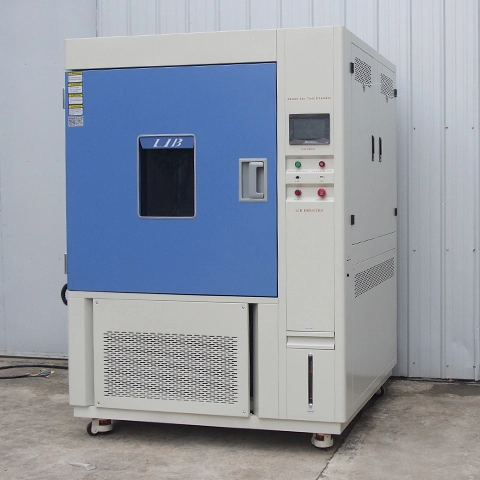

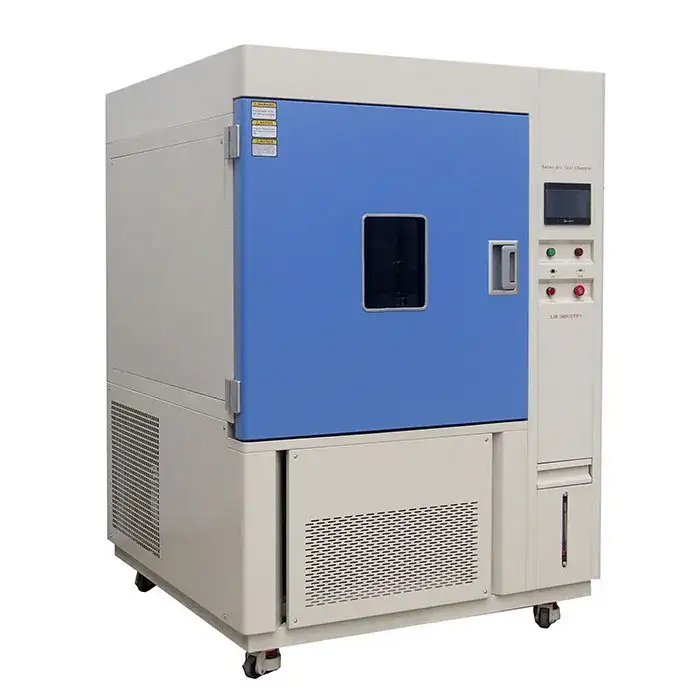

Weathering Test Chamber Manufacturer & Supplier
LIB industry Weathering Test Chamber is designed to meet and exceed industry standards such as ASTM G154, ISO 4892, and DIN EN 927, our weatherometer chamber offers precise and reliable testing methodologies for a wide range of industries.
Equipped with a water-cooled xenon arc lamp, it replicates natural sunlight, providing accurate and consistent irradiance levels.
Specifications Details
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |

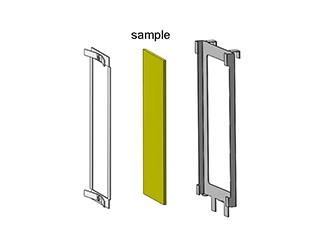

Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Humidification System | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Product Details
|
|
|

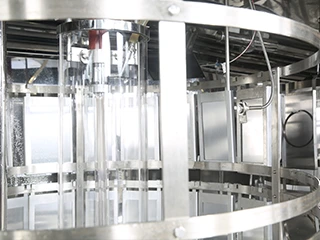

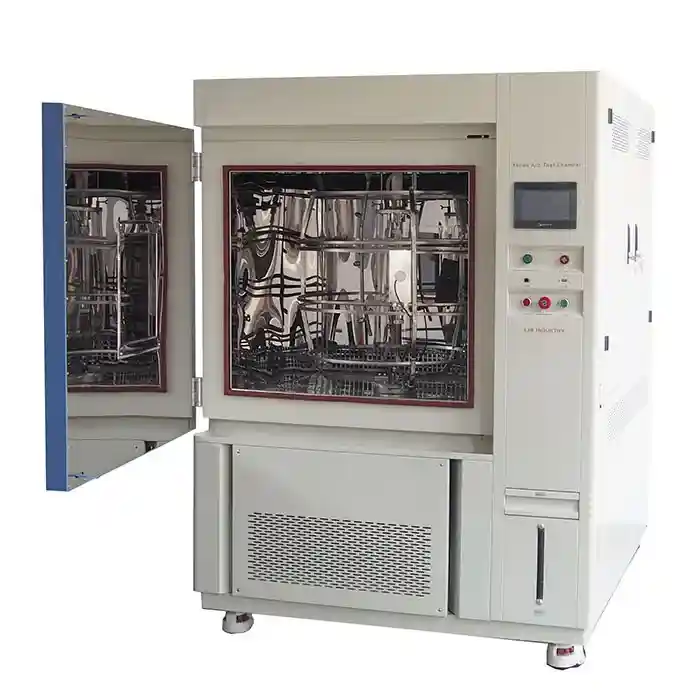

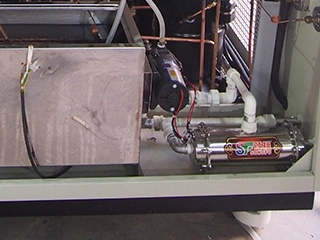

Rotating Specimen Holder Inside there is a rotating specimen holder, which rotates around the xenon lamp. Total can mount 42 pieces of specimen. | Irradiation Source Irradiation Source with 1 piece of 4500 W water-cooled xenon lamp Various filters available for choose | Water Re-circulation Water purifier: mainly purification from water source to water tank. Automatic water supply |
|
|
Weathering Test Chamber Features
●Sunlight Light Sources: Enables simulation of various environmental conditions
●Precise Controls: Allows adjustment of parameters for specific testing requirements
●Durable Construction: Ensures long-term reliability and consistent performance
●Data Logging: Facilitates comprehensive recording and analysis of test results
Application
●Automotive industry: Xenon Weathering Test Chamber is used to test the durability and colorfastness of automotive paints, interior materials, and exterior components.
●Aerospace industry: In the aerospace industry, xenon weathering chambers are used to simulate the harsh conditions that aircraft components may encounter during their operational lifespan.
●Building materials: the chambers are used to test the durability and color stability of various building materials, such as roofing materials, exterior cladding, and window frames.
●Textile industry: Test the colorfastness and durability of textiles, such as clothing, upholstery, and outdoor fabrics.
●Paint and coatings industry: the chambers are widely used in the paint and coatings industry to evaluate the long-term performance and color stability of various coatings, including architectural paints, industrial coatings, and automotive finishes.
FAQ
Q: Can this Weathering Test Chamber simulate specific weather conditions?
A: Yes, it can replicate various environmental stressors such as sunlight, moisture, and temperature fluctuations.
Q: How is the test data recorded and analyzed?
A: The controller can record and store data, and can also analyze curves to analyze the data.
