Xenon Weathering Tester
Irradiance Range:35~150 W/㎡
Bandwidth Measurement:300nm~400nm (340nm or 420nm)
Humidity Range:50% ~ 98% RH
Humidity Deviation:± 5% RH
Water Spray Cycle:1~9999H59M (Adjustable)
Automatic water supply
Xenon Weathering Tester Manufacturer & Supplier
The Xenon Weathering Tester, operates by utilizing advanced xenon lamps to emit light that closely replicates natural sunlight. The emitted light encompasses a broad spectrum, including ultraviolet (UV), visible, and infrared wavelengths, allowing for comprehensive simulation of solar radiation.
Technical Specifications
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Humidification System | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Product Details
|
|
|

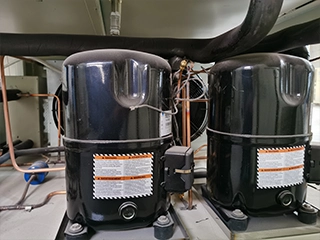

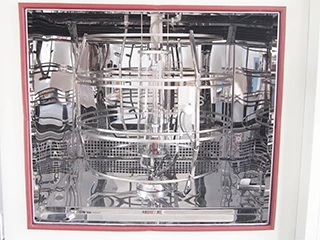

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant | Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing |
|
|
Features
Customization: Tailored solutions for diverse testing needs
Precision: Accurate simulation of outdoor conditions
Ease of Use: Intuitive controls for seamless operation
Robust Design: Ensures durability and longevity
Application
LIB industry's Xenon weathering tester finds wide applications across industries including automotive, aerospace, plastics, and coatings. It is instrumental in evaluating material durability, colorfastness, and performance under varied environmental conditions.
FAQ
Q: What warranty does the product come with?
A: LIB offers 36 months long warranty and long life service.
Q: Can the tester accurately simulate extreme weather conditions?
A: Yes, our xenon weathering tester replicates extreme conditions. Tell us about your requirements, let us help you.
