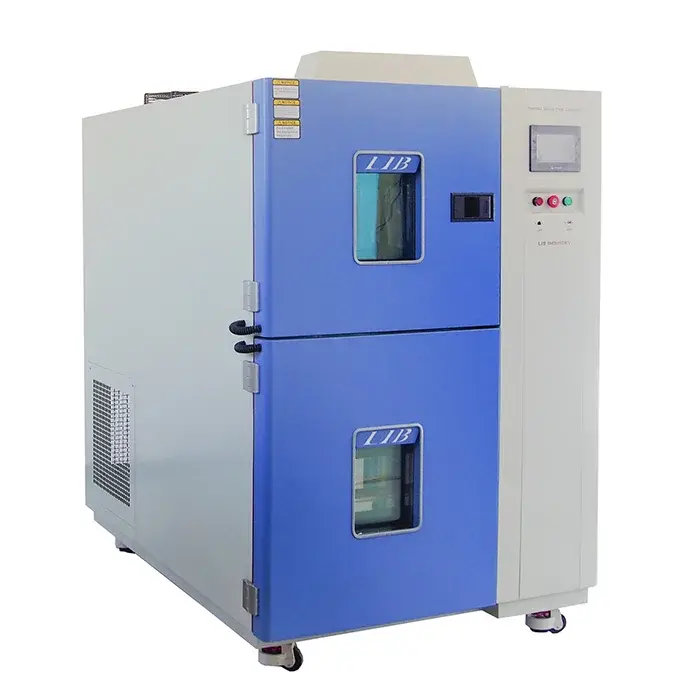

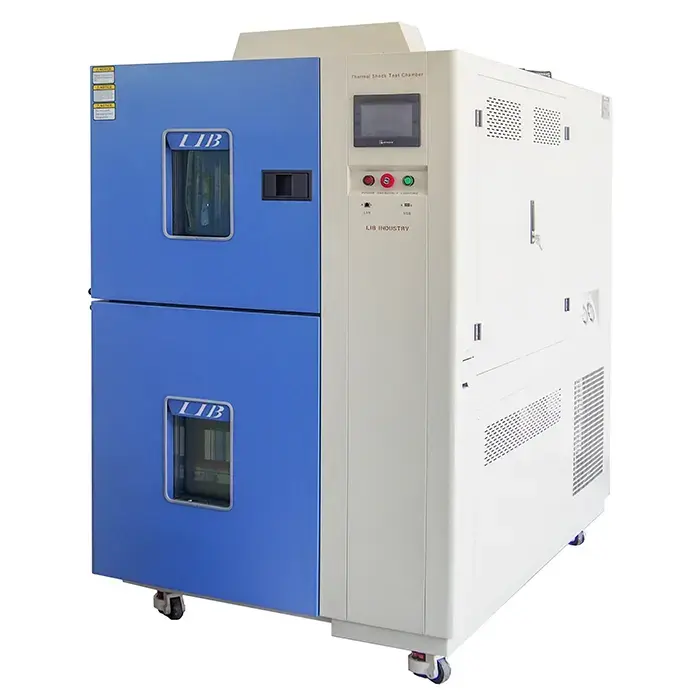

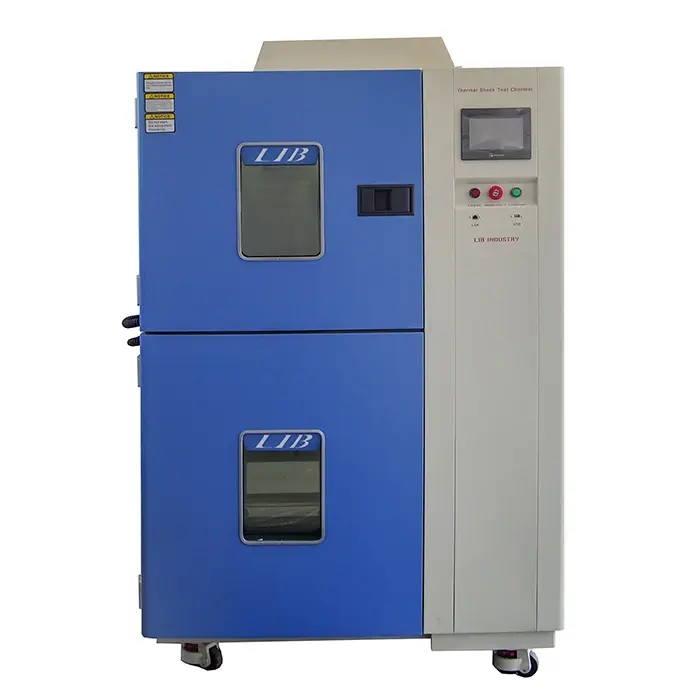

Thermal Shock Equipment

LIB thermal shock equipment can be performed during thermal shock testing from -70 to +200°C, comes in a variety of sizes and performance configurations.
Lower limit Temperature:-75℃
Upper limit Temperature:+220℃
Temperature Range:-70℃～+220 ℃;
Temperature Recovery Time: Within 5 minutes
Refrigerant: Environmental refrigerant;
Touch-screen programmble controller, Ethernet access

Send Inquiry

Product Description

Thermal Shock Equipment Manufacturer & Supplier

Our Thermal Shock Equipment operates on the principle of quickly transferring test samples between extreme temperature environments, inducing thermal stress. This allows for the assessment of material response to abrupt temperature changes.

The products to be tested is placed inside a test basket, which is then transferred between the hot and cold chambers. The temperature difference between the two chambers can range from -120°C to +250°C, depending on the specific requirements of the test.

Technical Specifications

Model	TS-162	TS-340	TS-500	TS-1000
Internal Dimensions (mm)	300300250	450450360	650650500	850850700
Overall Dimension (mm)	15608701545	171010201845	191012202265	211014202665
Interior Volume (mm)	22L	72L	211L	505L
Loading Capacity	20kg	30kg	50kg	60kg
Upper limit Temperature	+220℃
Heating Time	Ambient ~ + 200℃, within 30 minutes
Lower limit Temperature	-75℃
Cooling time	Ambient ~ -70℃, within 30 minutes
High Temperature Exposure Range	Ambient +20 ~ +200°C
Low temperature Exposure Range	–65 ~ -5°C
Temperature Fluctuation	≤±0.5℃
Temperature Deviation	≤±3 ℃
Temperature Recovery Time	Within 5 minutes
Cooling System	Mechanical compression refrigeration system
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	2 shelves

Product Details

Key Features

Rapid temperature changes accurately.
Volume avaiable 160L to 1000L
Oreheating room to +200℃, pre-cooling room to -120℃
Precise temperature control and transition times.

Application

The Thermal Shock Equipment finds applications across industries such as electronics, aerospace, automotive, and materials science. It is vital for assessing the durability of materials subjected to thermal shock test.

FAQ

Q: What is the transition time between extreme temperatures?

A: The transition time is typically less than 15 seconds.

Q: Can this equipment accommodate various sample sizes?

A: Yes, the Thermal Shock Equipment is adjustable to accommodate different sample sizes for comprehensive testing.
