temperature controlled test chamber
Lowest Temperature: -20℃/-40℃/-60℃/-80℃;
Temperature Range:-20℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Refrigerant: Environmental refrigerant;
Temperature and Humidity condition
Touch-screen programmble controller,Ethernet access

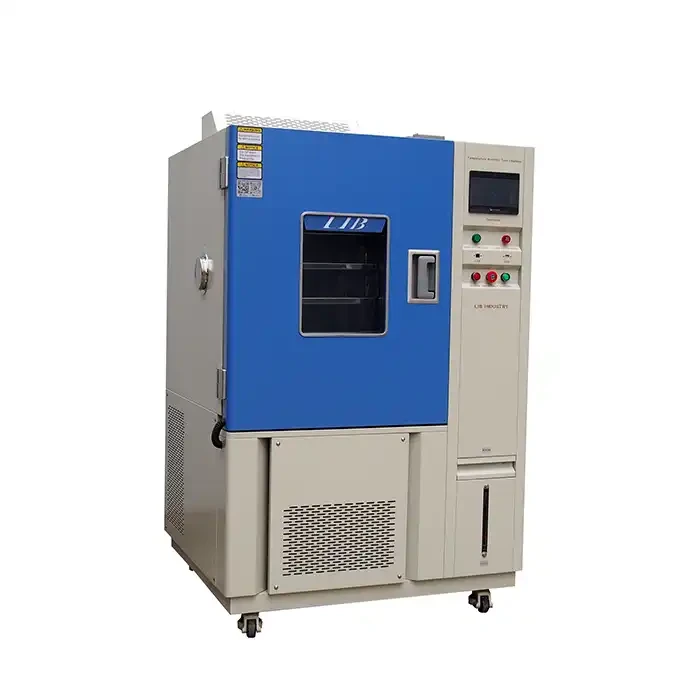

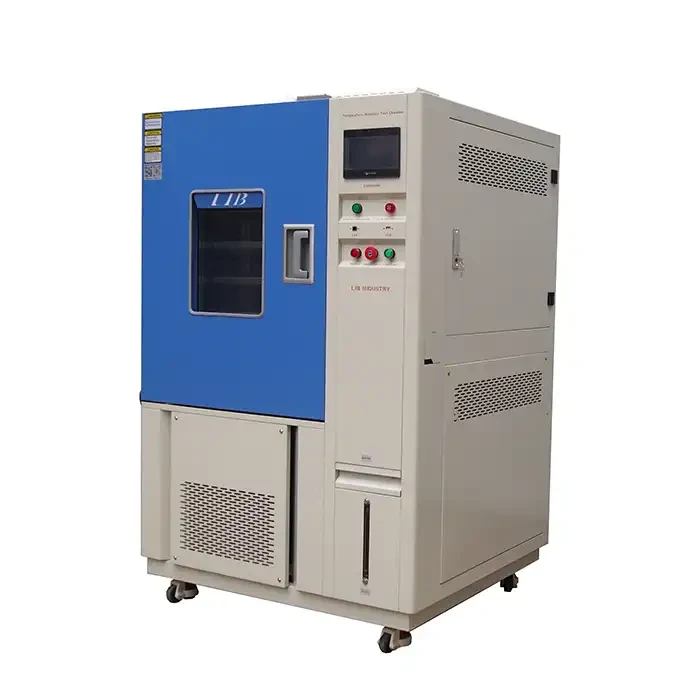

LIB Industry temperature controlled test chamber Manufacturer & Supplier

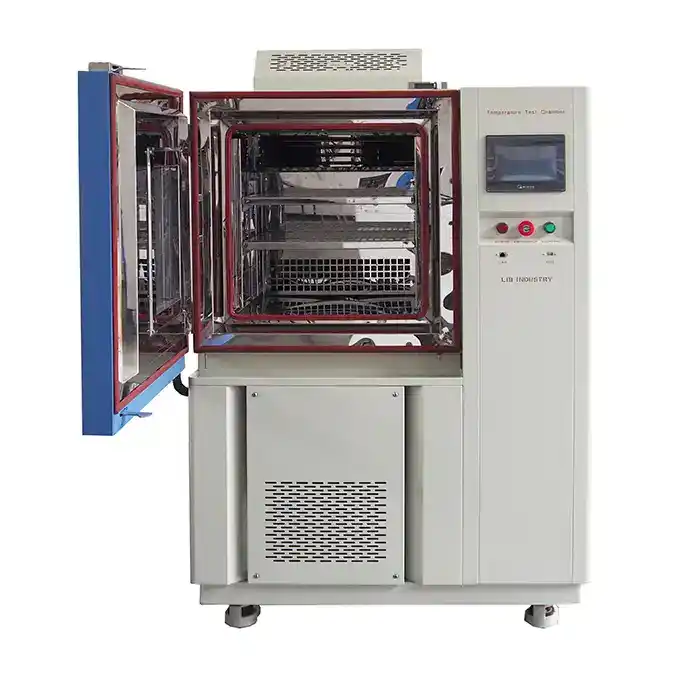

The temperature controlled test chamber is an advanced climate simulation device designed to recreate and maintain a stable temperature environment for testing purposes. With capacities ranging from 100L to 1000L, LIB Industry temperature controlled chambers provide precise temperature control across a wide range from -70°C to +180°C.
The main components include the insulated test space, refrigeration system, heating system, airflow circulation, humidity control, and a microprocessor controller. Temperature is precisely regulated via advanced PID control to maintain stability even with frequent door openings. The insulated chamber walls minimize heat loss for high thermal efficiency. Forced air circulation ensures uniform test conditions throughout the chamber. Optional humidity control allows combined temperature and humidity testing.
Product Parameter
Model | T-100 | T-225 | T-500 | T-800 | T-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 3 ℃ / min | ||||
Heating Rate | 1 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
Air Circulation | Centrifugal wind fan | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Product Details
|
|
|
Cable hole The standard inner hole diameter is 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed | Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant | Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom |
|
|
Key Features
Precise temperature control from -70°C to +180°C: PID control system allows accurate and stable temperature regulation across a wide range.
Excellent thermal uniformity +/-0.5°C: Forced air circulation by fans ensures uniformity within ±0.5°C throughout the chamber.
Intuitive touchscreen controller: User-friendly controller with graphic display allows easy setpoint entry and programming of temperature profiles.
Programmable temperature profiles: Flexible programming of ramp rates, soak temperatures and dwell times to simulate real-world conditions.
Overtemperature protection for safety: Independent thermostats, temperature limiters and low liquid level cutoff provide protection against overheating.
Quality and Certification
LIB Industry temperature controlled test chamber comply with international quality standards and safety regulations:
ISO 9001 certified manufacturing facility
CE marked construction for safety
EMC compliance for electromagnetic compatibility
ISO17025 Calibration
Industry-specific certifications on request
Customization
We offer customization of temperature controlled test chamber as per specific test requirements:
Custom temperature ranges and ramp rates
Integrated humidity and other environmental controls
Casters and shelves for material handling
Data acquisition and communication interfaces
Custom paint
