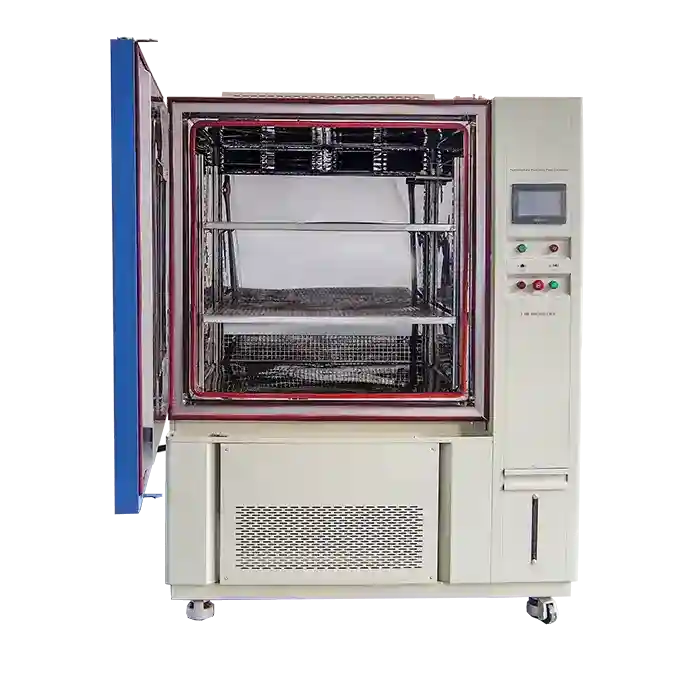

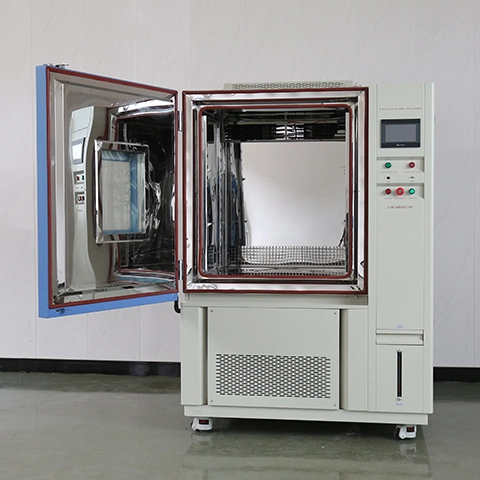

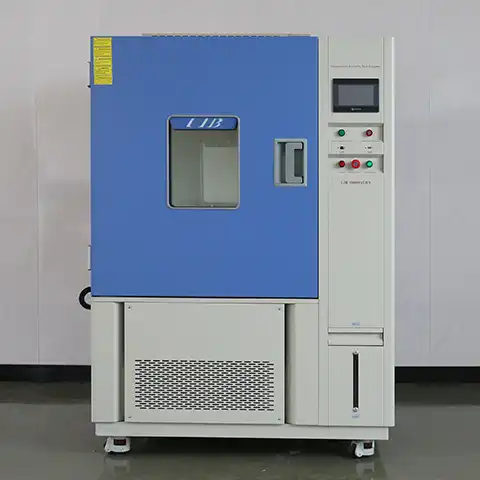

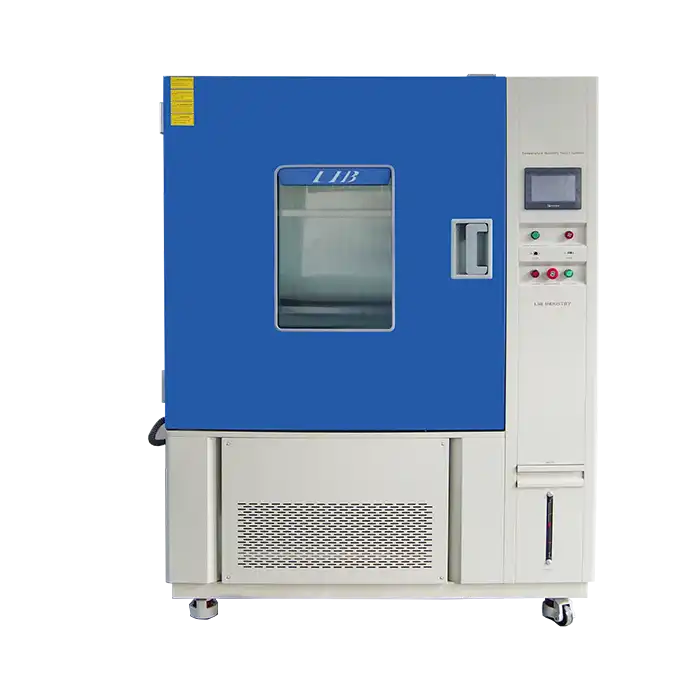

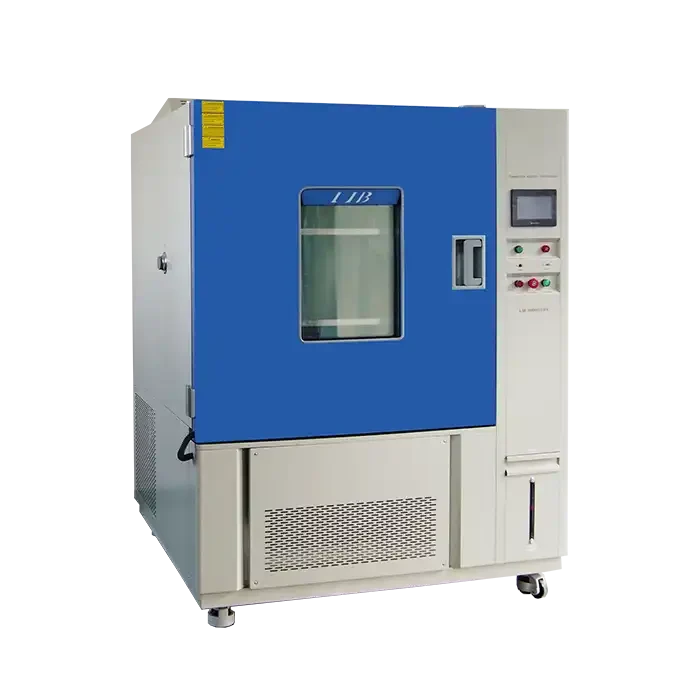

Temperature and Humidity Chamber
Model: TH-225
Temperature Range:-86℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Safety options for testing lithium-ion batteries
Built-in lighting for observing the test
Water purification and recirculation system
Temperature and Humidity Chamber Manufacturer & Supplier
Our Temperature and Humidity Chamber is designed to provide precise control over temperature and humidity levels, allowing for accurate and repeatable testing of products or materials under extreme humidity conditions. The temperature range of the chamber can typically be set anywhere from -40°C to +150°C, and the humidity range can range from 10% to 98% relative humidity.
The low temperature can cool down to -86℃.
Technical Specifications:
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details:
|
|
|

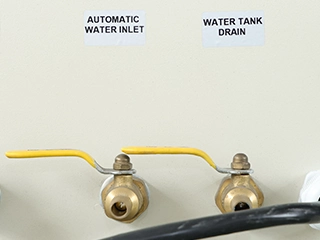

Automatic water inlet Automatic control of the water intake of equipment Water level alarm, water shortage lights and sound | Air circulation

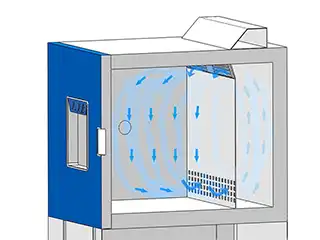

The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom | Sample shelf

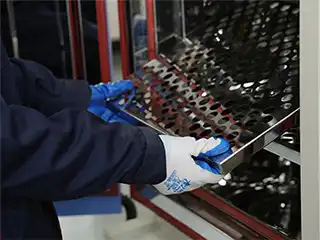

SUS304 stainless steel punching sample shelf 2pcs; Standard load of 50KGS for each layer of sample shelf |
|
|
Advantages:
●Precision and Reliability: Ensuring accurate and consistent test conditions for dependable results in various applications.
●Customization Options: Tailored chambers to suit specific testing needs, ensuring compatibility and efficiency.
●Advanced Technology: Innovative control systems for seamless operation and precise parameter control.
●Certifications and Accreditations: Meeting international quality standards, assuring reliability and safety.
Applications and Fields:
Our chambers find application in industries such as pharmaceuticals, automotive, aerospace, electronics, and materials testing. They are ideal for reliability testing, accelerated aging tests, shelf-life studies, and more.
FAQ:
1. How accurate are these chambers in replicating real-world conditions?
The environmental chamber humidity control is designed to specific temperature and humidity conditions found in real-world environments, providing a high degree of accuracy.
2. Can simultaneous tests be conducted at different conditions within a single chamber?
Yes, these chambers often allow for multiple tests simultaneously, each with different temperature and humidity settings.
3. Are safety measures in place within these chambers?
Yes, they typically have safety features, including alarms for abnormal conditions and fail-safes to protect both the chamber and the test items.
