environmental stress test chamber
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-70℃～+150 ℃;
Humidity Range:10% ~ 98% RH;
Temperature,climate,vibration,corrosion,altitude, pressure or combined test
Type: Benchtop, Floor Stand & Walk In Comprehensive Line of Environmental Chambers
Environmental stress test chamber Manufacturer & Supplier
LIB Industry is proud to introduce our environmental stress test chamber, designed to meet the diverse needs of industries requiring precise environmental testing. This environmental chamber is engineered to provide a controlled environment for testing and evaluating the impact of various stress factors on materials, components, and products.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainlesssteel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details
|
|
|

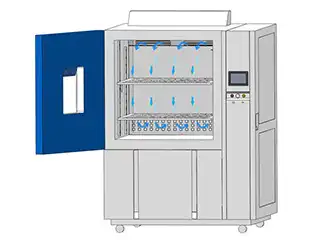

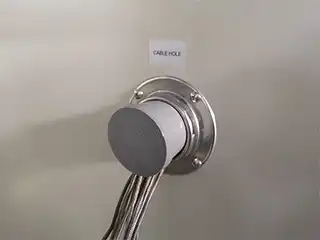

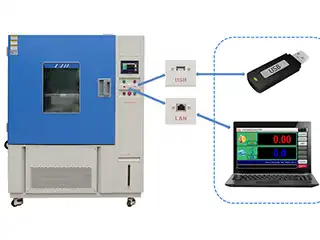

PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Cable hole A standard test hole with plugs 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed | Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom |
|
|
Product Features
Versatility: Our chamber accommodates a wide range of applications, from electronics and aerospace to pharmaceuticals.
User-Friendly Interface: The intuitive LCD touchscreen allows for easy programming and monitoring of test parameters.
Precision Control: Achieve accurate and repeatable test conditions with the chamber's advanced control system.
Durable Construction: The chamber is constructed from high-quality stainless steel, ensuring longevity and resistance to corrosion.
Safety Protection: Equipped with safety features such as over-temperature protection and power failure recovery.
Environmental Stress Test Chamber Applications
Our environmental stress test chamber finds versatile applications across various industries, including but not limited to:
●Electronics Industry
Assessing the performance of electronic components under extreme temperature and humidity conditions.
Evaluating the effects of environmental stresses on circuit boards and semiconductor devices.
●Automotive Sector
Testing the resilience of automotive materials to temperature variations and humidity.
Simulating the impact of different environmental conditions on vehicle components and systems.
●Aerospace and Aviation
Verifying the durability of materials used in aerospace applications under extreme temperature and pressure conditions.
Assessing the impact of environmental factors on the reliability of aviation equipment and components.
●Pharmaceuticals and Life Sciences
Studying the stability of pharmaceutical products under varying temperature and humidity levels.
Ensuring the integrity and quality of medical devices exposed to environmental stressors.
FAQ
Q: Can the chamber be customized for specific testing requirements?
A: Yes, our environmental stress test chamber is customizable to meet the specific needs of different industries.
Q: What after-sales support do you provide?
A: We offer 3-year long warranty, our after sales team will response within 1-12 hours.
