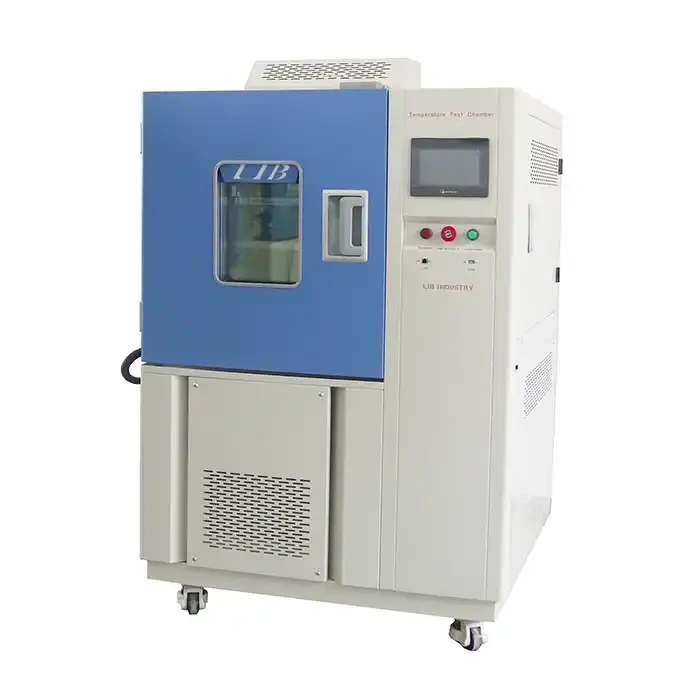

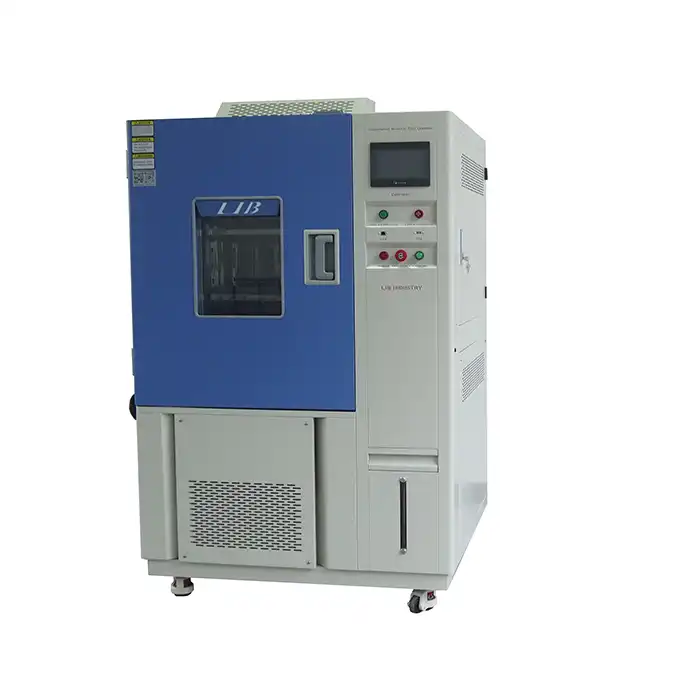

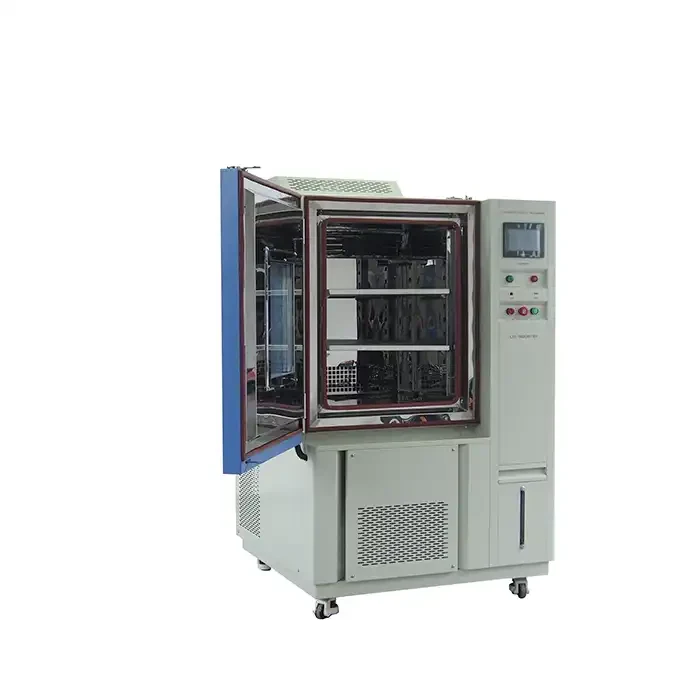

Humidity Test Chamber
Name: humidity test chamber
Model: TH-100
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-20℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Refrigerant: Environmental refrigerant;
Humidity Test Chamber Manufacturer & Supplier
Humidity test chamber allow testing of products under controlled temperature and humidity conditions. They consist of an insulated enclosure with a humidity generator and temperature control system.
75+ Different models for choose. This temperature humidity chambers come in two types including reach-in chambers and walk-in chambers. Extended choice of options fitted to your testing. You can select your chamber from the door, refrigeration system, controller, language and so much more. Provide temperature, climate, vibration, corrosion, altitude, pressure combined test.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details
|
|
|
Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing | Explosion-proof system
Explosion-proof door and viewing window Equip with smoke detector and buzzer Water spray against fire | PC Link
Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
|
|
Product Advantages:
●Precision and Reliability: LIB industry's Humidity Test Chamber offer highly accurate control and uniformity, ensuring reliable test results.
●Customization: Tailored solutions to meet specific testing requirements.
●Quality Control: Rigorous quality checks throughout manufacturing for superior performance.
●Certifications: CE, RoHS, ISO17025, CSA accredited.
Humidity Test Chamber Applications:
Electronics - Used to test resistance of electronic components and devices to humidity during operation and storage.
Automotive - Used for testing performance of automotive parts like lights, switches, connectors under humid conditions.
Pharmaceuticals - Used to analyze moisture absorption and stability of drugs and medical products under humid conditions.
Food - Used to simulate humid conditions during transport and storage of food. Helps determine spoilage rate and optimize packaging.
Packaging - Packaging materials like plastic, paper are tested for seal integrity, strength under humid conditions.
Coatings & Paints - Coatings and paints are tested for adhesion, gloss retention, fungal resistance under humidity.
Cosmetics & Hygiene - Tests stability and preservation effectiveness of cosmetics and hygiene products under humidity.
Building Materials - Assesses moisture resistance and water vapor transmission rate of building materials like insulation, wood.
Aerospace - Components tested for corrosion resistance and material performance in humid conditions.
Agriculture - Humidity Test Chamber is used to simulate humid tropical conditions for research on crop storage and transportation.
FAQ:
Q: Can these chambers simulate extreme humidity conditions?
A: Yes, our humidity test chamber can replicate both high and low humidity extremes with precision.
Q: Are these chambers customizable?
A: Yes, we offer customization to suit specific testing requirements.
