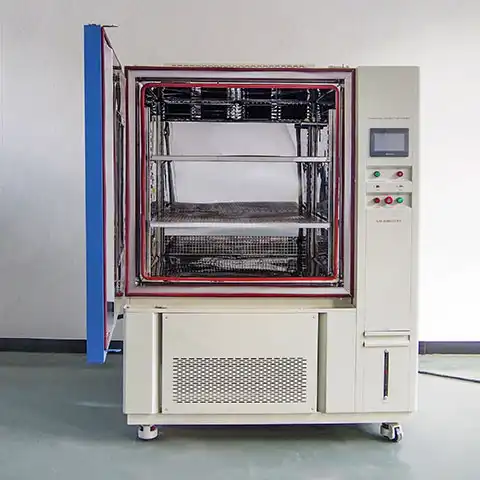

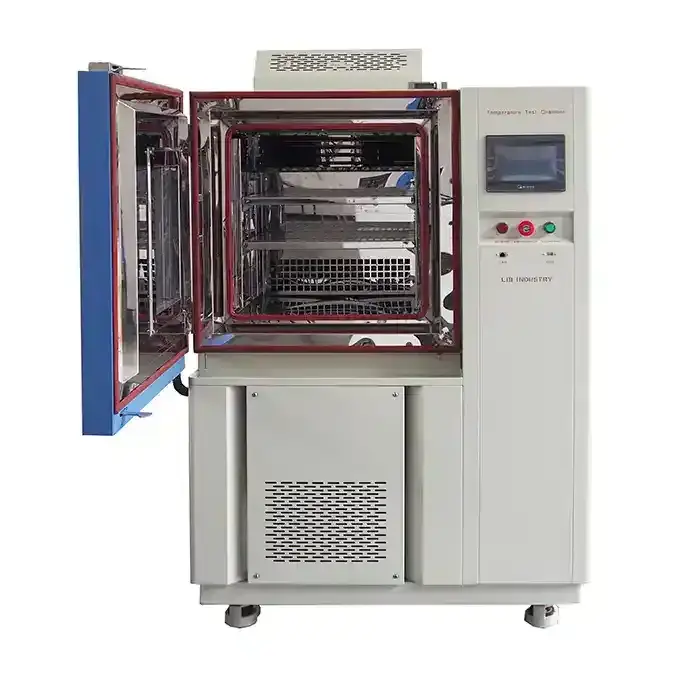

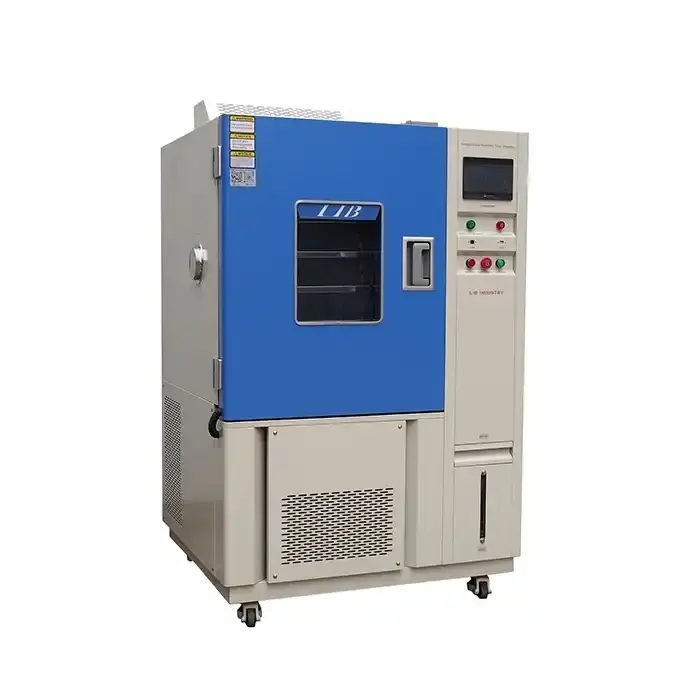

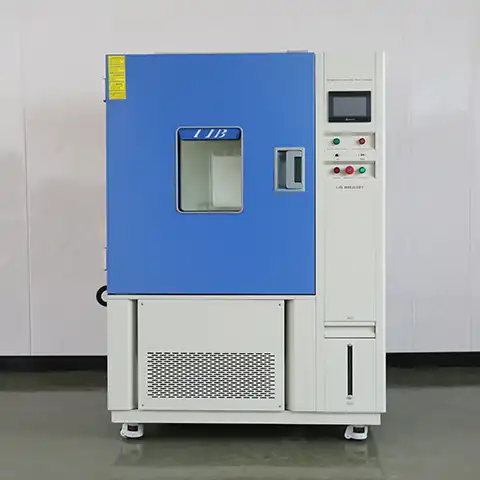

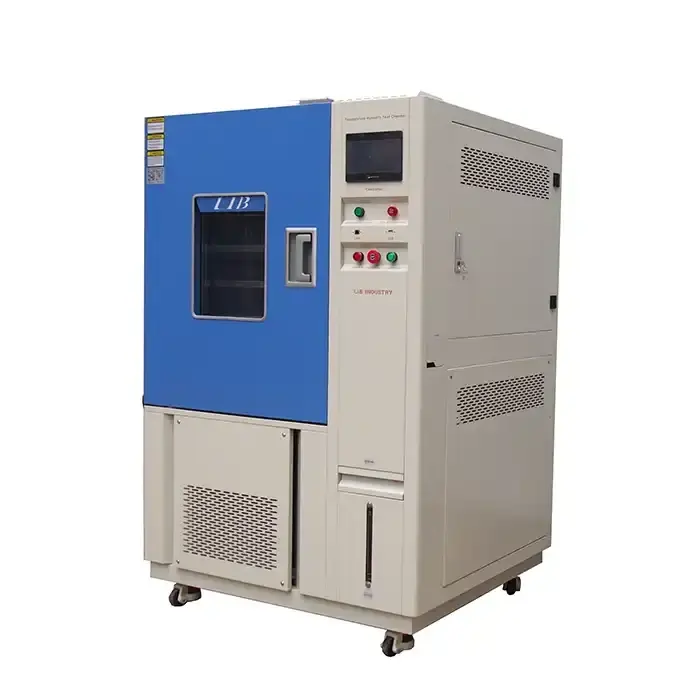

Environmental Simulation Chamber
Name: Temperature Humditiy Chamber
Model: TH-500
Lowest Temperature: -20℃/-40℃/-60℃/-86℃;
Temperature Range:-86℃～+150 ℃;
Cooling Type: Air cooled
Refrigerant: Environmental refrigerant;
Environmental Simulation Chamber Manufacturer & Supplier
The Environmental Simulation Chamber is designed to replicate a wide range of environmental conditions. It consists of a sealed chamber, temperature control unit, humidity control unit, and often includes additional features to simulate other environmental factors such as wind, rain, and sunlight.
The environmental chamber is capable of maintaining a stable environment within the specified temperature and humidity ranges. It can achieve a temperature fluctuation of ±0.5°C and a humidity fluctuation of ±2.5% RH, ensuring accurate and reliable testing conditions.
Technical Parameters
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Performance Details
|
|
|

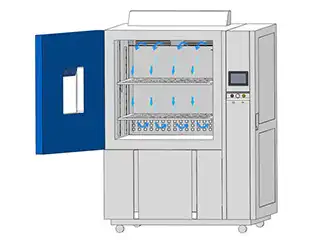

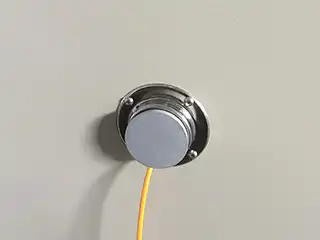

| Cable hole The standard inner hole diameter is 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed | Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable. |
|
|
Environmental Simulation Chamber Key Features
●Its precise control over temperature and humidity allows for accurate and repeatable testing conditions.
●The Environmental Simulation Chamber’s insulation ensures that the conditions within remain stable, even when the external environment changes.
●The chamber is also designed to be durable and reliable, ensuring that it can withstand the rigors of continuous use.
After-Sales Support
We provide comprehensive onsite training on usage and maintenance. Customers can contact our service team for technical queries and troubleshooting. We offer preventive maintenance contracts for regular servicing and annual calibration. Spare parts are available from our warehouse. We provide warranty for 3 year covering parts and service.
The Application of Environmental Simulation Chamber
Environmental Simulation Chambers (ESCs) are specialized devices used in various fields to simulate and study different environmental conditions. Applications of ESCs include:
1. Material testing: ESCs are used to test the performance and durability of materials under different environmental conditions. For example, they can simulate extreme temperatures, high humidity, or corrosive environments to assess how materials react and degrade over time. This is particularly useful in industries like automotive, aerospace, and construction.
2. Biological research: ESCs are used in biological research to create controlled environments for studying the effects of temperature, humidity, and light on various organisms. This includes studying plant growth and development, microbial activity, and the impact of environmental factors on human health.
