environmental temperature chamber
Model: TH-800
Lowest Temperature: -20℃/-40℃/-60℃/-86℃;
Temperature Range:-86℃～+150 ℃;
Refrigerant: Environmental refrigerant;
Temperature and Humidity condition
Touch-screen programmble controller,Ethernet access

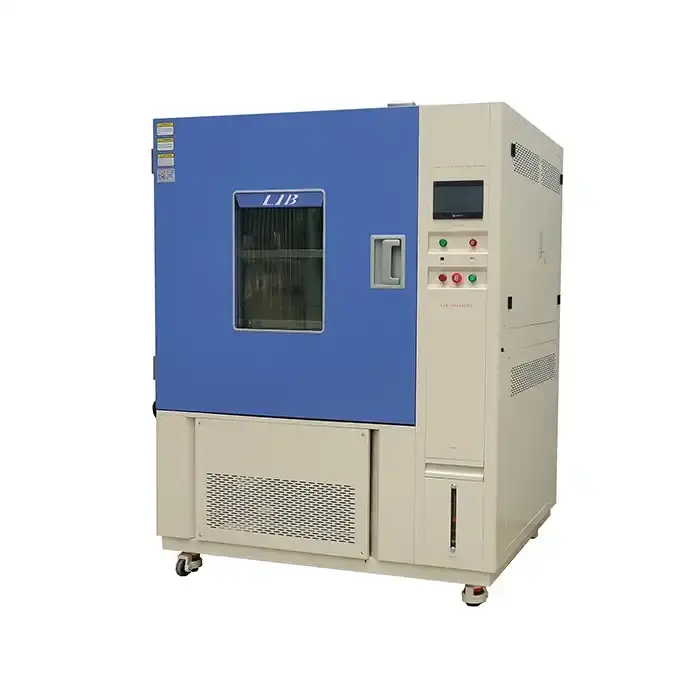

LIB Industry environmental temperature chamber Manufacturer & Supplier
The environmental temperature chamber is an reliable environmental test system that offers exceptional precision in humidity control for a wide range of industrial testing applications. It is specifically designed to create and maintain precise humidity conditions within its insulated stainless steel enclosure, ensuring accurate and consistent test results.
In addition to humidity control, this chamber also features an efficient airflow circulation system. This system ensures that the humidity is evenly distributed across the entire chamber, eliminating any potential variations in test conditions. This guarantees reliable and repeatable test results, making the chamber an indispensable tool for research, development, and quality control processes.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Deatils
|
|
|
| PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant | Cable hole The standard inner hole diameter is 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed |
|
|
Key Features
Humidity range from 10% RH to 98% RH
Humidity stability and uniformity up to ±1% RH
Capacity ranging from 100L to 1500L
Touchscreen controller for setpoint and data monitoring
Programmable humidity test profiles
Stainless steel interior for corrosion resistance
Low liquid level protection and overhumidity cut-off
Optional temperature control from 0°C to +60°C
Casters and shelves for material handling
Certification
LIB Industry's products have been certified by several authorities, including CE\RoHs.
