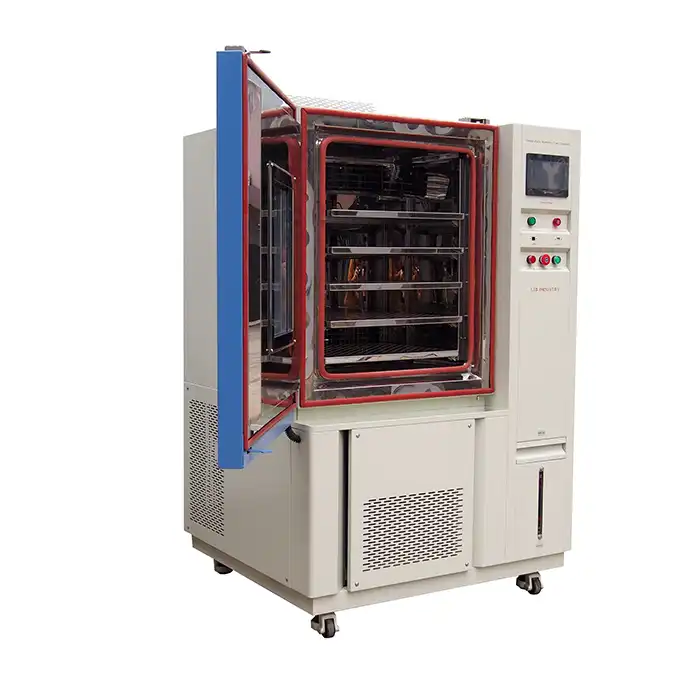

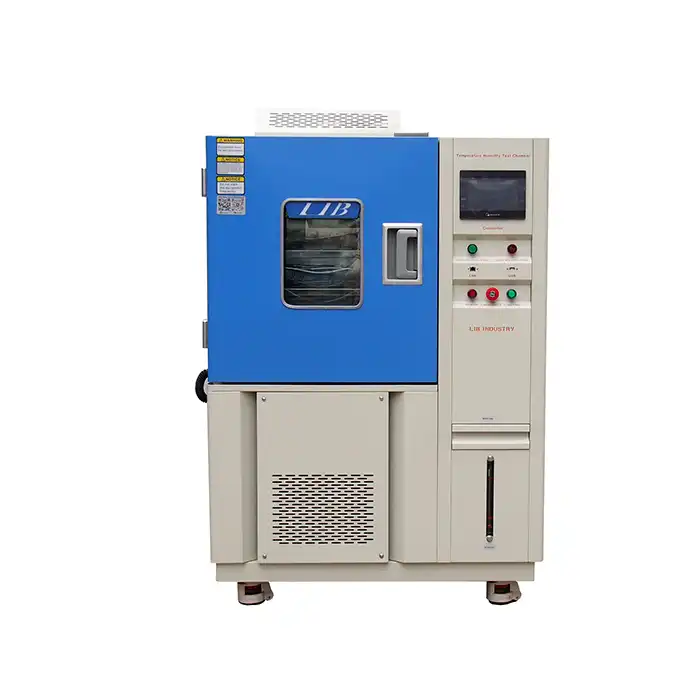

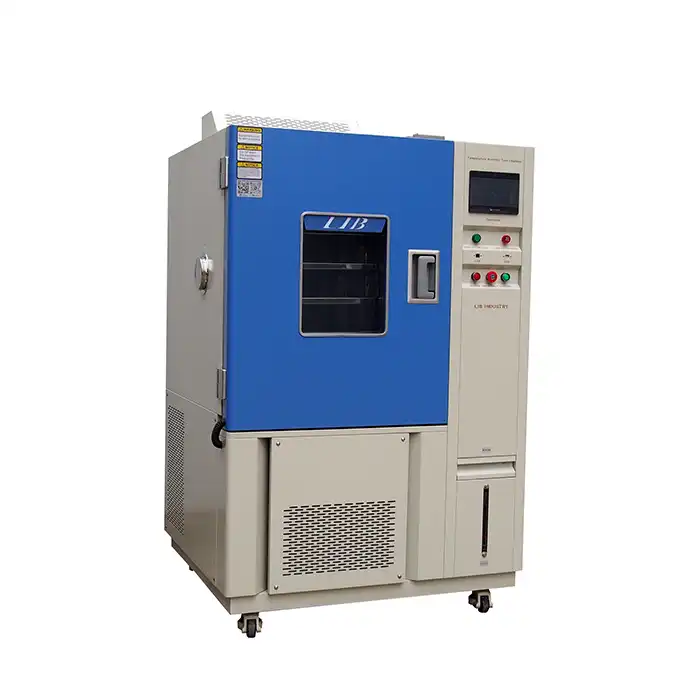

TH-100 Temperature And Humidity Control Chamber

LIB Industry TH-100 Temperature And Humidity Control Chamber provides the widest range of temperature or temperature and humidity environments.
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-20℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Comprehensive Line of Environmental Chambers
50L/80L/100/225L/500/1000/1500L
Ranging in size from small benchtop units to large walk-in chambers.

Send Inquiry

Product Description

TH-100 Temperature And Humidity Control Chamber Manufacturer & Supplier

The TH-100 Temperature And Humidity Control Chamber simulates a wide range of environmental conditions. The temperature range of the test chamber can vary depending on the model, but it is typically capable of reaching temperatures as low as -70°C and as high as 180°C. The humidity range achieves humidity levels from 10% to 98% relative humidity.

Temperature range, humidity range, volume, temperature change speed, and other special configurations are necessary conditions for testing. Please tell us your needs and let us help you to find a suitable controlled RH 100% Laboratory Climate Chamber.

Technical Parameters

Model	TH-100
Internal Dimension (mm)	400500500
Overall Dimension (mm)	90010501620
Interior Volume	100L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Automatic water supply, Water purification system
Humidifier	External isolation, stainless steel surface evaporation humidifier
Safety Device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	1 Cable hole with plug; 2 shelves

Performance Details

Cable hole

A standard test hole with plugs

The standard inner hole diameter is 50mm/100mm/200mm

Add water

Fill water manually through the tank

Access automatic water intake

Water shortage alarm

Sensor

PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees.

TH-100 Temperature And Humidity Control Chamber Applications

1. Electronic testing: TH-100 Temperature And Humidity Control Chamber testing electronic components and devices to ensure their functionality and reliability under different environmental conditions.

2. Pharmaceutical stability testing: Evaluating the stability and shelf life of pharmaceutical products by subjecting them to various temperature and humidity conditions.

3. Automotive testing: Testing the performance and durability of automotive components and materials under extreme weather conditions.

4. Aerospace testing: Simulating the conditions that aerospace components and materials may experience during flight, such as high altitude and temperature variations.

5. Material testing: Assessing the physical and chemical properties of materials, such as plastics, metals, and composites, under different temperature and humidity conditions.

Key Features

●Low Types: -20℃/-40℃/-60℃/-70℃/-86℃

●Humidity range: 10% - 98% RH

●Temperature change rate: 5℃/10℃/Minute

●50L/80L/100/225L/500/1000/1500L

●Type: Benchtop, Reach-in, Walk In.

Quality and Safety

Our manufacturing facility is ISO 9001certified for quality and environmental management. TH-100 Temperature And Humidity Control Chamber comply with international safety standards such as CE, CSA, ISO17025 etc. They meet EMC regulations for electromagnetic compatibility.
