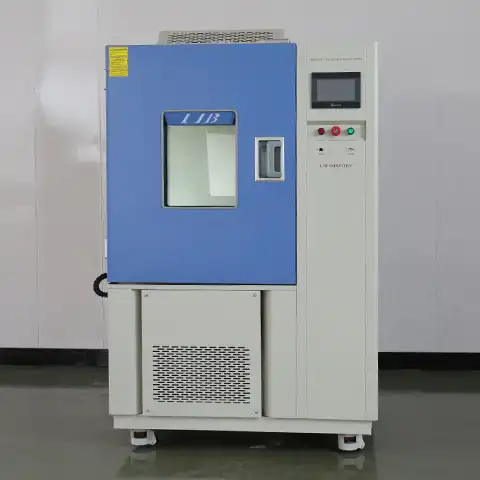

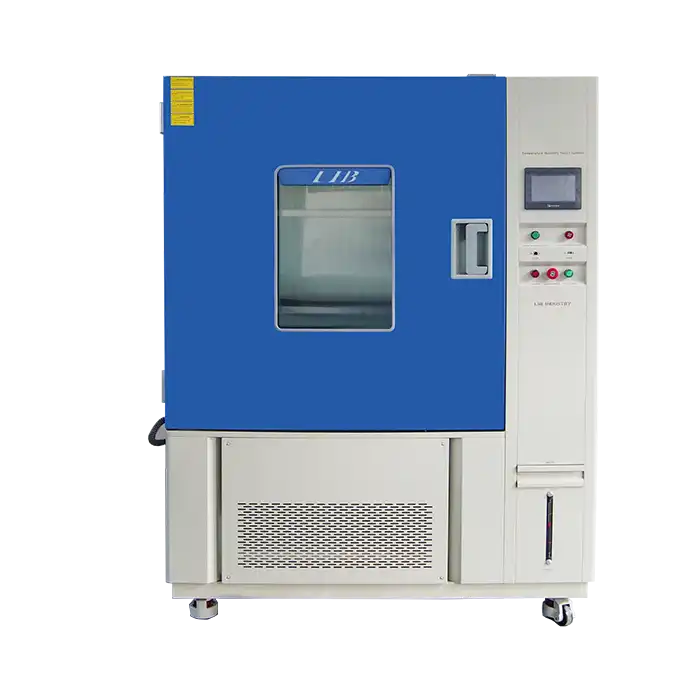

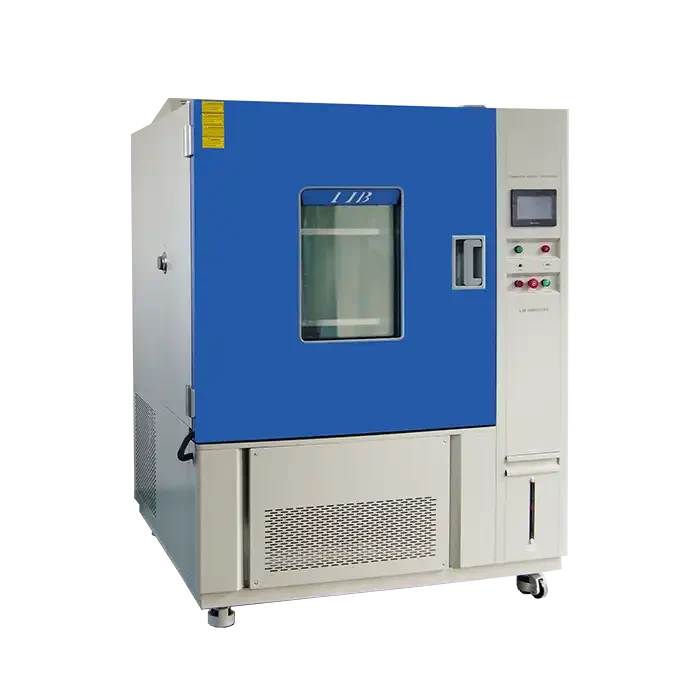

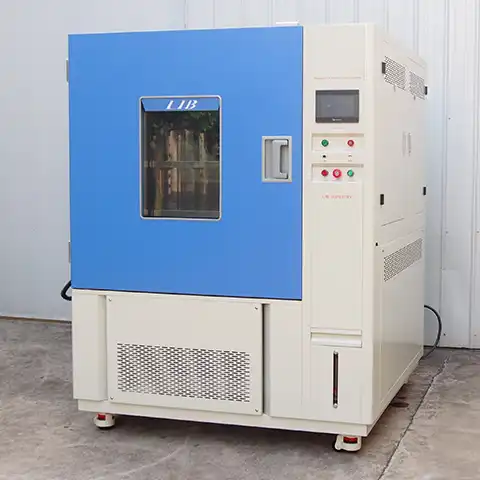

Thermal Chamber For Battery Testing
Model: TH-1000
Lowest Temperature: -20℃/-40℃/-60℃/-86℃;
Temperature Range:-86℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Refrigerant: Environmental refrigerant;
Temperature and Humidity condition
Thermal Chamber For Battery Testing Manufacturer & Supplier
Thermal Chamber For Battery Testing is essential because temperature has a significant impact on battery performance. Extreme temperatures can affect the capacity, cycle life, and overall efficiency of batteries. By subjecting batteries to different temperature conditions, researchers can evaluate their performance, safety, and reliability.
A thermal chamber for battery testing is a controlled environment chamber specifically designed to simulate various temperature conditions for testing batteries. It allows researchers and engineers to assess the performance and behavior of batteries under different temperature ranges.
Technical Parameters
Model | T-100 | T-225 | T-500 | T-800 | T-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 3 ℃ / min | ||||
Heating Rate | 1 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
Air Circulation | Centrifugal wind fan | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Product Details
|
|
|

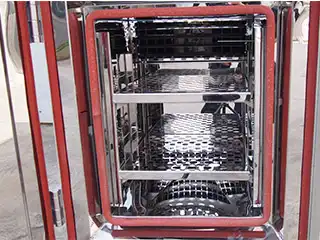

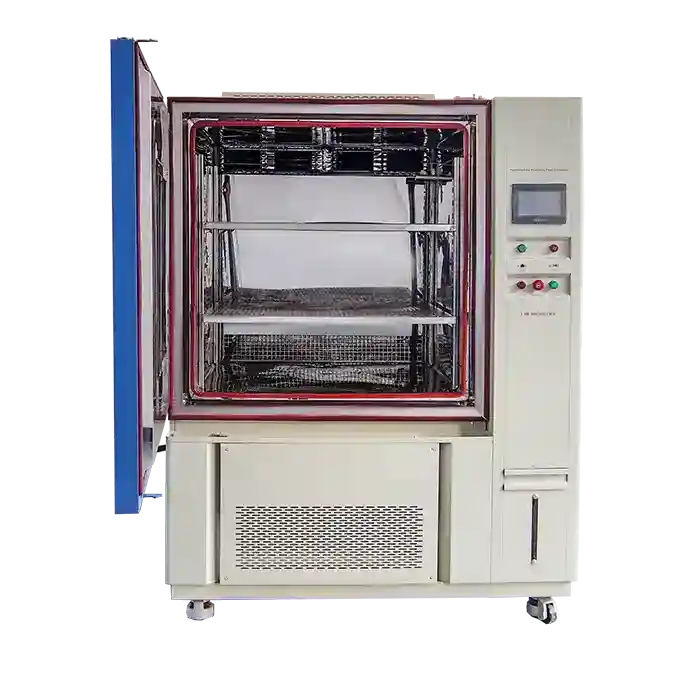

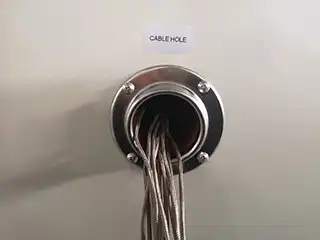

Explosion-proof system Explosion-proof door and viewing window Equip with smoke detector and buzzer Water spray against fire | Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; | Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm |
|
|
Thermal Chamber For Battery Testing Key Features
●Explosion-proof system
●Explosion-proof door and viewing window
●Equip with smoke detector and buzzer
●Water spray against fire
●Safety Features: Overheat and overpressure protection.
Thermal Chamber For Battery Testing Applications
LIB industry'S Thermal Chamber for Battery Testing is ideal for a variety of applications, including:
Lithium-ion battery testing
Electric vehicle battery testing
Energy storage system testing
Consumer electronics battery testing
Aerospace battery testing
FAQ
1. Can the Thermal Chamber For Battery Testing be customized for specific battery sizes?
Yes, our Thermal Chamber is customizable to accommodate various battery sizes.
2. What types of batteries are compatible with this chamber?
The chamber is designed to test a wide range of batteries, including lithium-ion and lead-acid batteries.
3. Is training provided for operating the chamber?
Yes, comprehensive training is included with the purchase of our Thermal Chamber.
