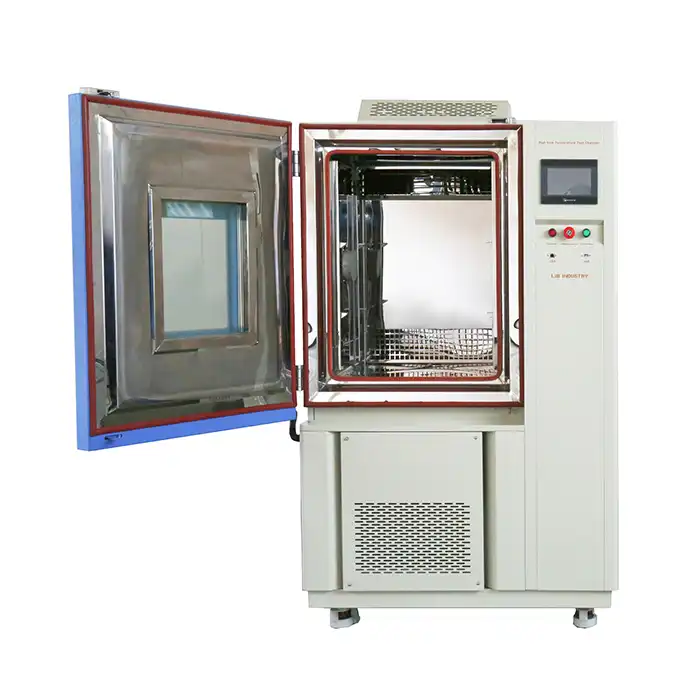

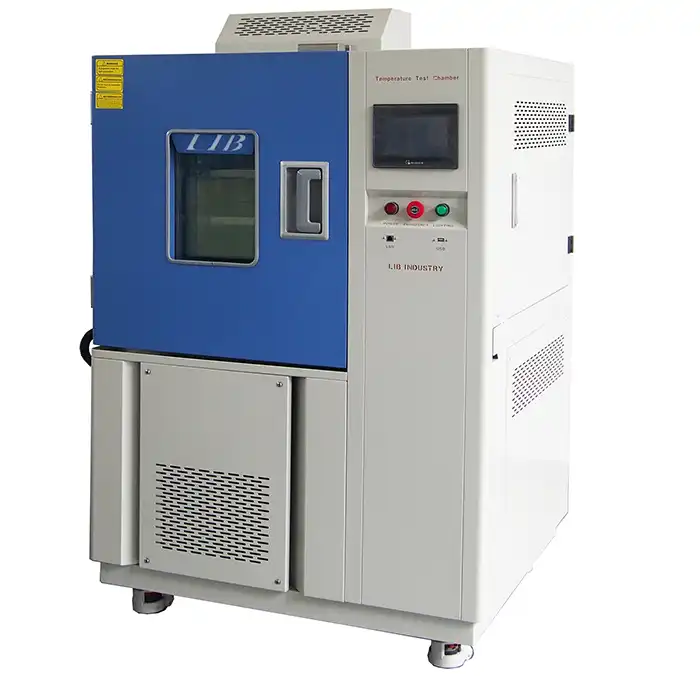

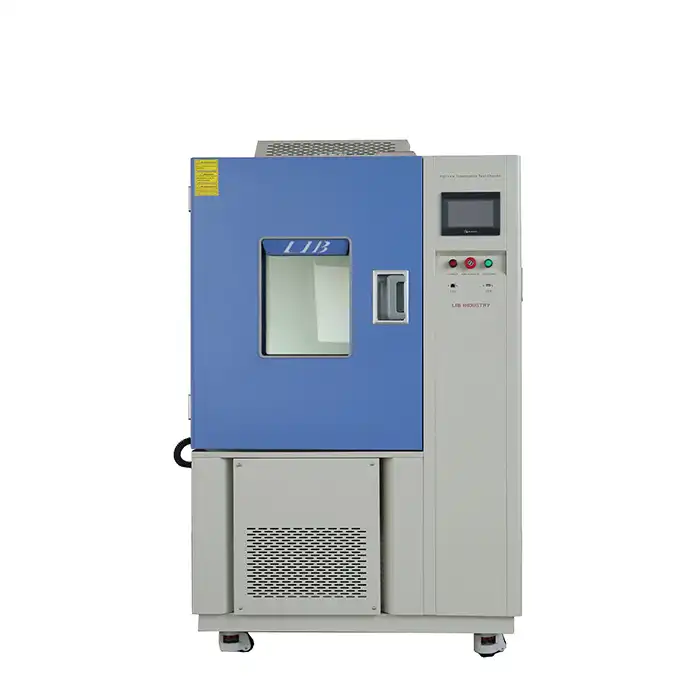

Temp RH Chamber

LIB Temp RH Chamber provides the widest range of temperature or temperature and humidity environments.
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-20℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Comprehensive Line of Environmental Chambers
50L/80L/100/225L/500/1000/1500L
Ranging in size from small benchtop units to large walk-in chambers.
Product Description

Temp RH Chamber Manufacturer & Supplier

The Temp RH Chamber simulates a wide range of environmental conditions. The temperature range of the test chamber can vary depending on the model, but it is typically capable of reaching temperatures as low as -70°C and as high as 180°C. The humidity range achieves humidity levels from 10% to 98% relative humidity.


Temperature range, humidity range, volume, temperature change speed, and other special configurations are necessary conditions for testing. Please tell us your needs and let us help you to find a suitable controlled RH 100% Laboratory Climate Chamber.

Technical Parameters

Model

TH-100

TH-225

TH-500

TH-800

TH-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

800*1000*1000

1000*1000*1000

Overall Dimension (mm)

900*1050*1620

1000*1140*1870

1200*1340*2020

1300*1540*2120

1500*1540*2140

Interior Volume

100L

225L

500L

800L

1000L

Heat load

1000W

Temperature Range

A : -20℃ ～ +150 ℃

B : -40℃ ～ +150 ℃

C: -70℃ ～ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Heating Element

Nichrome heater

Controller

Programmable color LCD touch screen controller, Ethernet connection

Water supply system

Automatic water supply, Water purification system

Humidifier

External isolation, stainless steel surface evaporation humidifier

Safety Device

Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Thermal Insulation

Polyurethane foam and insulation cotton

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

1 Cable hole with plug; 2 shelves

Performance Details




Cable hole

A standard test hole with plugs

The standard inner hole diameter is 50mm/100mm/200mm

Add water

Fill water manually through the tank

Access automatic water intake

Water shortage alarm

Sensor

PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees.



Applications

1. Electronic testing: Testing electronic components and devices to ensure their functionality and reliability under different environmental conditions.

2. Pharmaceutical stability testing: Evaluating the stability and shelf life of pharmaceutical products by subjecting them to various temperature and humidity conditions.

3. Automotive testing: Testing the performance and durability of automotive components and materials under extreme weather conditions.

4. Aerospace testing: Simulating the conditions that aerospace components and materials may experience during flight, such as high altitude and temperature variations.

5. Material testing: Assessing the physical and chemical properties of materials, such as plastics, metals, and composites, under different temperature and humidity conditions.

Key Features

●Low Types: -20℃/-40℃/-60℃/-70℃/-86℃

●Humidity range: 10% - 98% RH

●Temperature change rate: 5℃/10℃/Minute

●50L/80L/100/225L/500/1000/1500L

●Type: Benchtop, Reach-in, Walk In.

Quality and Safety

Our manufacturing facility is ISO 9001certified for quality and environmental management. Temp RH chambers comply with international safety standards such as CE, CSA, ISO17025 etc. They meet EMC regulations for electromagnetic compatibility.
