Corrosion Test Chamber
Temperature Range:+10 ℃ ～ +90 ℃
Humidity Range:30% ~ 98% RH
Temperature Fluctuation:± 0.5 ℃
Temperature Deviation:± 2.0 ℃
Salt Fog Deposition:1～2ml / 80cm2 · h
Cooling system Mechanical compression refrigeration system
Corrosion Test Chamber Manufacturer & Supplier

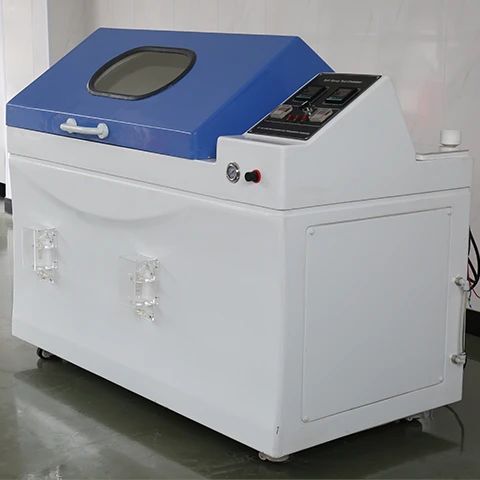

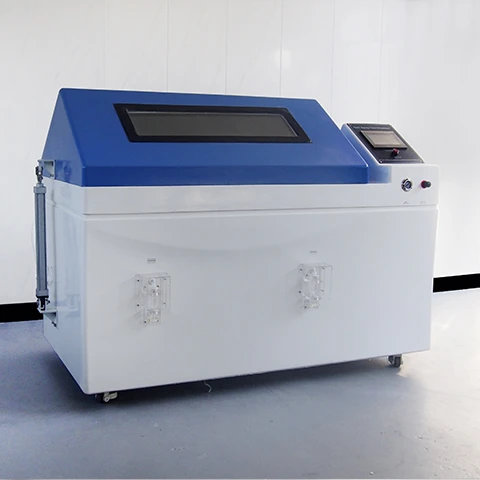

The Corrosion Test Chamber, manufactured by LIB industry, serves as a vital instrument in assessing material resilience against corrosion and rust formation. It replicates harsh environmental conditions, enabling precise evaluations of material durability. Our Corrosion Test Chamber complies with international standards ASTM B117, IEC60068, ISO9227 and many others.
Technical Parameters
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details
|
|
|

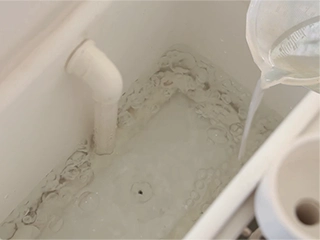

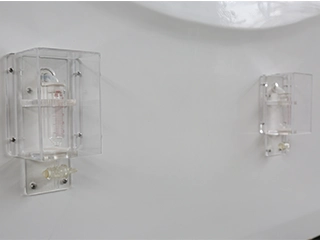

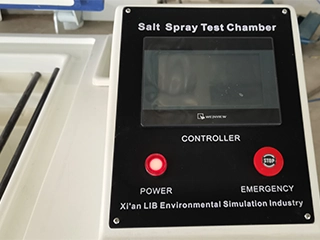

| Salt Water Tank Built-in salt solution tank and external salt water tank Brine mixing system to keep the salt solution even | Controller PID control system Network connection computer. English/French/Spanish/German/Russian | Collecting cup A spray tower comes with a collection cup The two cups collect the salt spray in opposite directions |
|
|
Corrosion Test Chamber Features and Advantages
●Accurate Corrosion Simulation: Mimics harsh environments with precision.
●Consistent Testing Results: Ensures reproducible corrosion test outcomes.
●Flexible Sample Capacity: Accommodates various sample types and sizes.
●So2 corrosion gas test as option
Application Fields
The Corrosion Test Chamber finds applications across industries such as automotive, aerospace, coatings, metals, and more. It is instrumental in developing corrosion-resistant materials crucial for product reliability and longevity.
FAQ
Q: What is the typical test duration in the chamber?
A: The test cycle duration is programmable and can extend up to 2000 hours, simulating prolonged exposure to corrosive environments.
Q: Can this chamber accommodate samples of different sizes and materials?
A: Yes, the Corrosion Test Chamber can accommodate multiple samples of varying sizes and materials for comprehensive testing.
