Salt Fog Chamber
Temperature Range:Ambient: ～ +60 ℃
Humidity Range:95% ~ 98% RH
Materials: Glass fiber reinforced plastics
Standard:ASTMB117, ISO9227
Volume:110L, 250L, 7500L,1000L, 1500L
Ranging size from 110L to 3000L different models for you test
Salt Fog Chamber Manufacturer & Supplier
LIB industry's salt fog chamber have 3 series to choose from, including basic salt spray chambers, cyclic salt spray chambers and SO2+salt fog corrosion chambers.
Depending on the test conditions, different series can be selected for salt spray corrosion testing. For test specimens of different sizes, LIB also provides models with different volumes to choose from. Volume ranging from 150L to 3000L.
Technical Specifications
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||

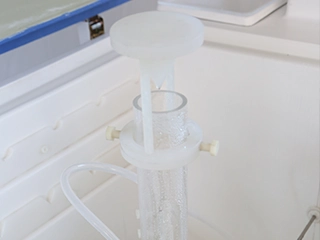

Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details
|
|
|

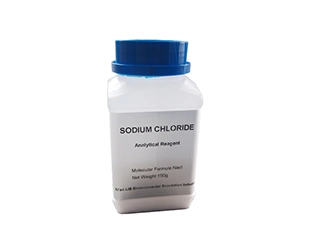

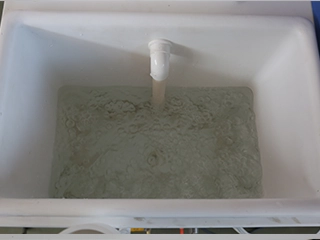

| Salt The salt is used for salt spray corrosion test The purity of the salt is 99.5% | Salt Spray Device Spray tower is adjustable in height and spray volume to meet different test standards | Salt Water Tank Built-in salt solution tank and external salt water tank Brine mixing system to keep the salt solution even |
|
|
Salt Fog Chamber Features
●Built-in salt spray stirring system can keep the salt water uniform
●10kgs of salt are provided for free for convenience and can be tested in time
●Quartz nozzle is not easy to clog
●You can customize the size, configuration, sample holder according to your needs
Application Fields
The Salt Fog Chamber finds application in automotive, aerospace, coatings, metals, and more. It is instrumental in developing corrosion-resistant materials crucial for product reliability and longevity.
FAQ
Q: What is the typical test duration in the chamber?
A: The test cycle duration is programmable and can extend up to 2000 hours, simulating prolonged exposure to corrosive environments.
Q: Can this chamber accommodate samples of different sizes and materials?
A: Yes, the Salt Fog Chamber can accommodate multiple samples of varying sizes and materials for comprehensive testing.
