Salt Spray Apparatus
Temperature Range:Ambient: ～ +60 ℃
Humidity Range:95% ~ 98% RH
Temperature Fluctuation:± 0.5 ℃
Temperature Deviation:± 2.0 ℃
Salt Fog Deposition:1～2ml / 80cm2 · h
Spray Type: Continuous / Periodic
Salt Spray Apparatus Manufacturer & Supplier
LIB industry's Salt Spray Apparatus, serves to simulate harsh environmental conditions, evaluating material resilience against corrosion and rust formation.
The equipment operates on the principle of atomizing a salt water solution into a mist, exposing test samples to accelerate corrosion processes. It replicates the corrosive effects of salt-laden environments on various materials.
Technical Specifications
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details
|
|
|

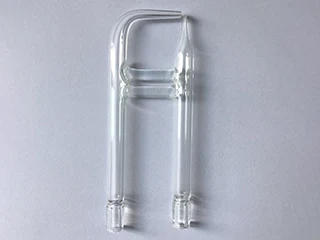

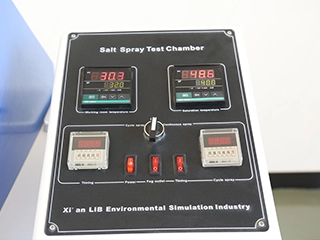

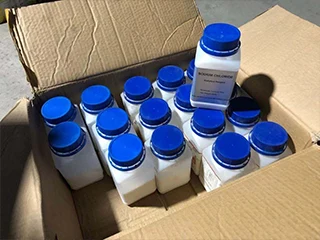

| Controller Network connection computer. Language can be selected, English/French/Spanish/German/Russian | Salt The salt is used for salt spray corrosion test The purity of the salt is 99.5% | Salt Spray Device Salt spray nozzles are easy to clean and resistant to high temperatures, corrosion, and clogging |
|
|
Features and Advantages
●Precise Corrosion Simulation: Accurate replication of harsh environments.
●Reliable Testing: Ensures consistent and reproducible corrosion test results.
●Glass fiber reinforced plastics Construction: Resistant to corrosion for prolonged apparatus lifespan.
●Versatile Sample Capacity: Accommodates various sample types and sizes.
Salt Spray Apparatus Application Fields
The Salt Spray Apparatus finds application in industries such as automotive, aerospace, coatings, metals, and more. It is instrumental in developing corrosion-resistant materials vital for product reliability and longevity.
FAQ
Q: What is the typical test duration in the apparatus?
A: The test cycle duration is programmable and can extend up to 3000 hours, simulating prolonged exposure to corrosive environments.
Q: Can this apparatus accommodate samples of various sizes and materials?
A: Yes, the Salt Spray Apparatus can accommodate multiple samples of varying sizes and materials for comprehensive testing.
Q: Is the chamber complied with ASTM B117?
A: Yes, comply with ASTM B117, ISO9227 and more others.
