Salt Spray Test Apparatus
Temperature Range:Ambient: ～ +60 ℃
Humidity Range:95% ~ 98% RH
Spray Type: Continuous / Periodic
Materials: Glass fiber reinforced plastics
Standard:ASTMB117, ISO9227
Volume:110L, 250L, 7500L,1000L, 1500L

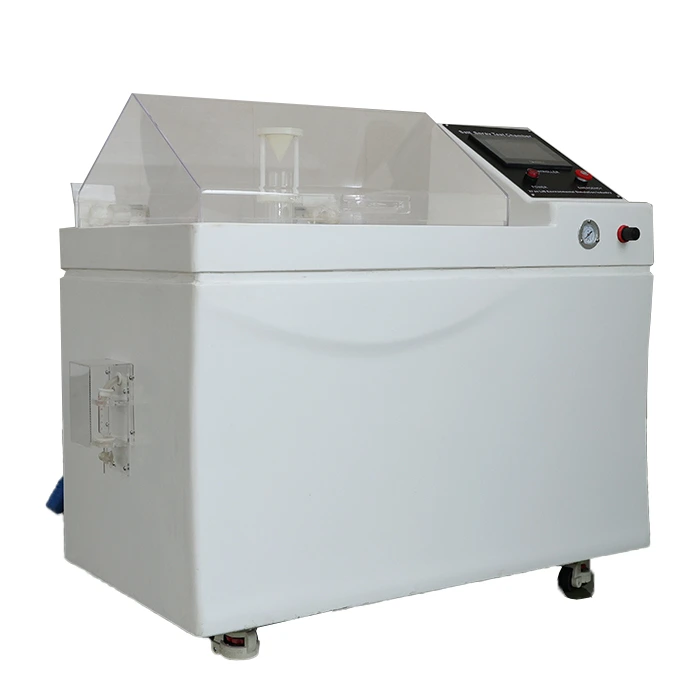

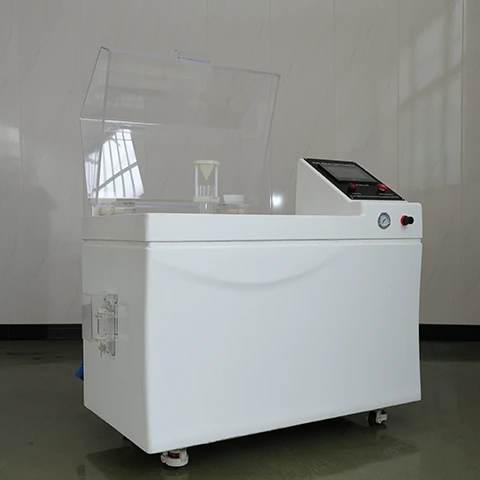

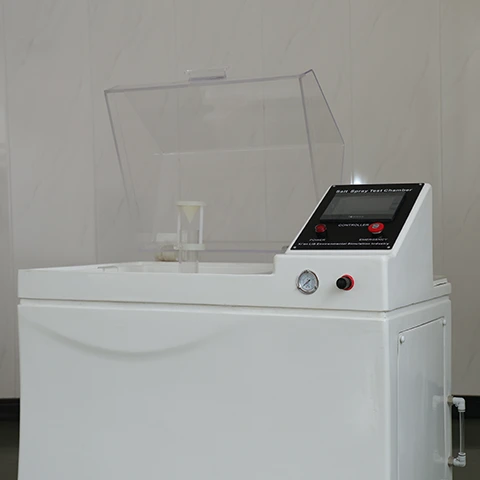

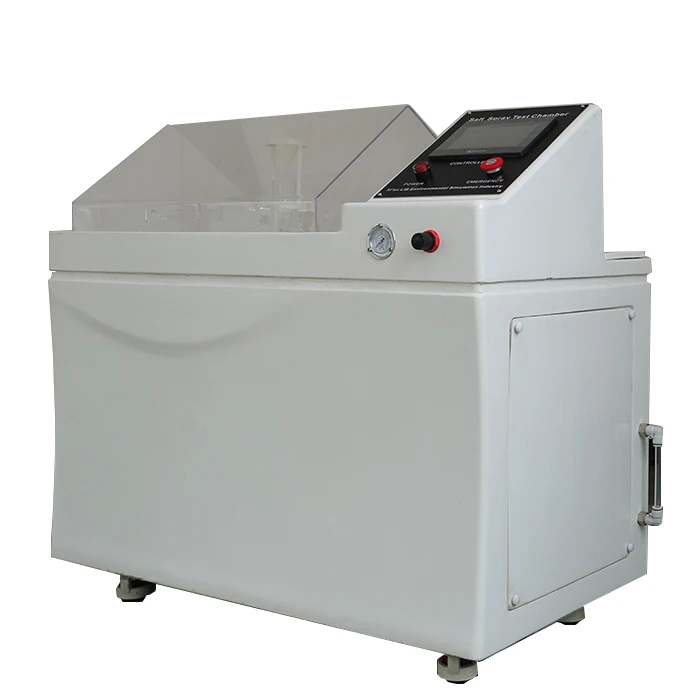

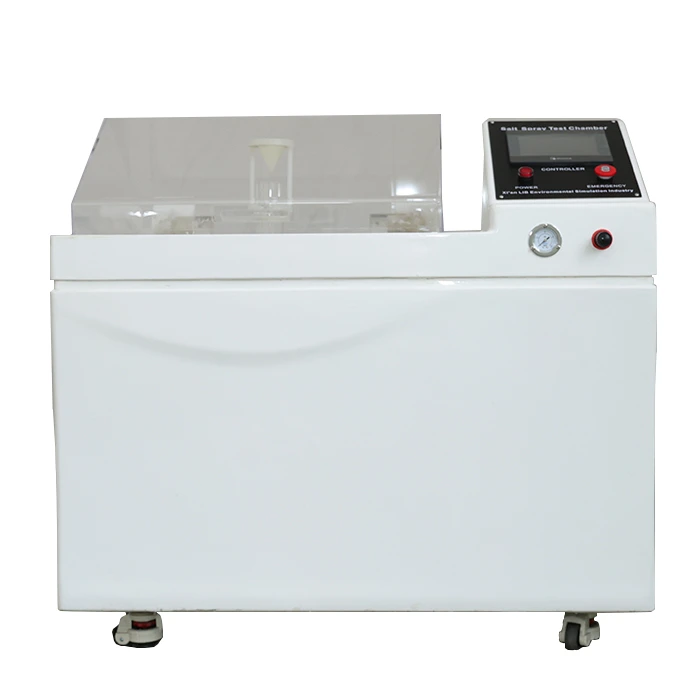

Salt Spray Test Apparatus Manufacturer & Supplier
Our Salt Spray Test Apparatus is designed to assess the corrosion resistance of materials and coatings in various industries. This apparatus, manufactured by LIB industry, has more that 23 models for vairous tests.
A salt spray test machine is used to evaluate the corrosion resistance of various surface treatments applied to materials. These treatments include coatings, electroplating, organic and inorganic films, anodizing, and anti-rust oils. By subjecting samples to a corrosive salt spray environment, the machine helps determine the effectiveness of anti-corrosion treatments and assists in establishing product quality standards.
Compliant with international quality standards such as ASTM B117, ISO 9227, and ASTM G85, our apparatus ensures accuracy and reliability in corrosion testing.
Technical Specifications:
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details:
|
|
|

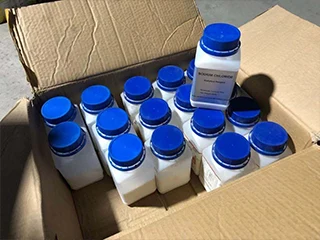

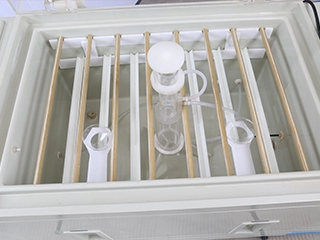

| Salt The salt is used for salt spray corrosion test The purity of the salt is 99.5% | Sample shelf Standard sample holder contains 6 round bars and 5 V-shaped grooves for different tests. Special holders can be customized | Controller PID control system Network connection computer. English/French/Spanish/German/Russian |
|
|
Product Functions & Working Principles:Utilizing a controlled salt fog environment, our apparatus simulates accelerated corrosion conditions. Samples are exposed to this fog, allowing professionals to assess their resistance levels accurately.
Features and Advantages:
●Precise simulation of corrosive conditions
●Programmable test periods for varied assessments
●Flexible chamber sizes for diverse testing needs
●Reliable results comply with international standards
●User-friendly interface for ease of operation
The Importance of Salt Spray Test Apparatus:
1. Corrosion resistance assessment: The primary purpose of the salt spray test apparatus is to assess the corrosion resistance of materials and coatings. It allows manufacturers to determine the durability and performance of their products when exposed to salt fog environmental conditions.
2. Quality control: By subjecting materials and coatings to a controlled salt spray environment, the salt spray apparatus helps manufacturers maintain consistent quality control standards. It enables them to identify any potential weaknesses or flaws in their products' corrosion resistance, allowing for improvements in design, formulation, or manufacturing processes.
3. Research and development: The salt spray test apparatus is also valuable for research and development purposes. It allows engineers to study the effects of corrosion on different materials, coatings, or surface treatments. This knowledge can lead to the development of improved corrosion-resistant materials and coatings, enhancing product performance and extending their lifespan.
