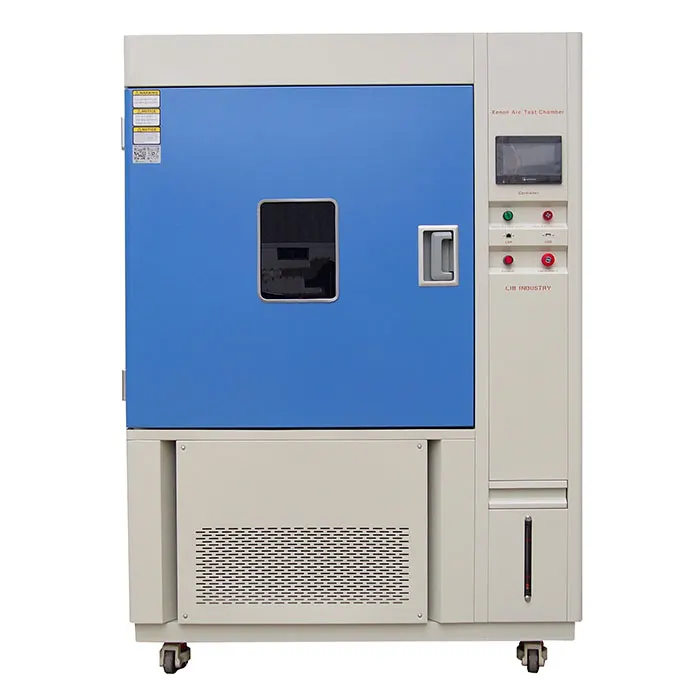

Xenon Light Fastness Chamber

LIB Xenon light fastness Chamber is used for Material Testing against sunlight, temperature, humidity and rain. It is a a full-featured color fastness test chamber.
Irradiance Range:35~150 W/㎡
Bandwidth Measurement:300nm~400nm (340nm or 420nm)
Humidity Deviation:± 5% RH
Water Spray Cycle:1~9999H59M (Adjustable)
Automatic water supply
Radiometer:UV Radiometer, Tolerance: ±5%

Send Inquiry

Product Description

Xenon Light Fastness Chamber Manufacturer & Supplier

LIB industry's Xenon Light Fastness Chamber adheres to international standards, ensuring high-quality and reliable testing capabilities. The following industry-recognized standards are incorporated into the design and performance of our chambers:

1. ASTM G155: Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials

This standard specifies the procedure for exposing various non-metallic materials to xenon arc light under controlled environmental conditions, allowing for the assessment of material degradation and colorfastness.

2. ISO 105-B02: Textiles - Tests for Colour Fastness - Part B02: Colour Fastness to Artificial Light: Xenon Arc Fading Lamp Test

ISO 105-B02 outlines the method for determining the colorfastness of textiles when subjected to the simulated conditions of natural daylight using a xenon arc light source.

3. AATCC TM16: Colorfastness to Light (Option 3) Xenon-Arc

AATCC TM16 provides guidelines for evaluating the colorfastness of textiles when exposed to xenon arc light, allowing for the assessment of color change and overall durability.

Technical Specifications

Model	XL-S-750
Internal Dimension (mm)	950950850 mm
Overall Dimension (mm)	140014001950 mm
Specimen Holder Size(mm)	95*200
Specimen Capacity	42pcs
Chamber Type	Rotating Holder
Irradiation Source	1 piece of 4500w water-cooled xenon arc lamp
Irradiance Range	35~150 W/㎡
Bandwidth Measurement	300nm~400nm (340nm or 420nm)
Chamber Temperature Range	Ambient ～ 100 ℃ ±2℃
Black Panel Temperature	BPT 35 ～ 85 ℃ ±2℃
Humidity Range	50% ~ 98% RH
Humidity Deviation	± 5% RH
Water Spray Cycle	1~9999H59M (Adjustable)
Controller	Programmable color LCD touch screen controller
Water supply system	Automatic water supply, Water purification system
Radiometer	UV Radiometer, Tolerance: ±5%
Cooling System	Mechanical compression refrigeration system
Humidification System	External isolation, stainless steel surface evaporation humidifier
Safety Device	Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material	Steel plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing

Product Details

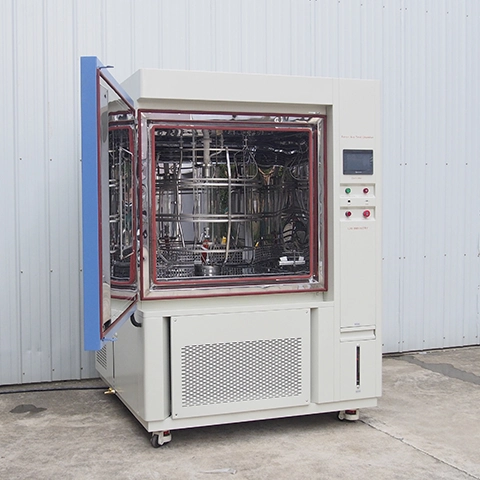

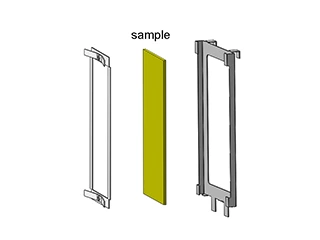

Rotating Specimen Holder

Inside there is a rotating specimen holder, which rotates around the xenon lamp. Total can mount 42 pieces of specimen.

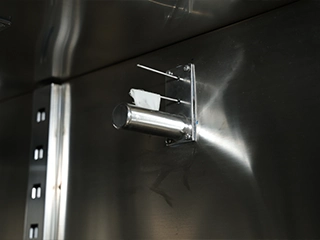

Sensor

PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees.

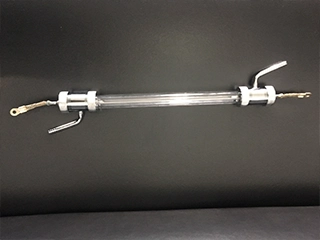

Irradiation Source

Irradiation Source with 1 piece of 4500 W water-cooled xenon lamp

Various filters available for choose

Xenon Light Fastness Chamber Advantages

Accurate simulation of natural sunlight and weathering
Reliable performance evaluation for product development
Time-saving compared to real-time outdoor exposure testing
Customizable options to meet specific testing requirements

Applications

The Xenon Light Fastness Chamber is widely used in industries such as textiles, plastics, coatings, automotive, and aerospace for testing materials like fabrics, dyes, paints, and polymers.

FAQ

Q: What is the typical duration of a test cycle?
A: Test cycles can range from a few days to several months, depending on the material and the simulated environmental conditions.

Q: Can the Xenon Light Fastness Chamber accommodate large sample sizes?
A: Yes, we offer chambers with various exposure areas to accommodate different sample sizes and quantities.
