uv weathering tester

LIB Industry UV weathering tester is an environmental simulation chamber that carries out UV light accelerated weathering tests on materials.
Irradiation Source: Fluorescent UV lamps (8) - 40 W
Temperature Range:Ambient ～ 90 ℃ ±2℃
Bandwidth:290 ~ 400nm
Irradiance Control:0.3~20 W/㎡
Water Spray Cycle:1~9999H59M (Adjustable)
Distance of Specimen and lamp:50mm

Send Inquiry

Product Description

LIB Industry UV weathering tester Manufacturer & Supplier

LIB Industry introduces UV weathering tester designed meticulously to assess material durability against UV exposure. This chamber, built adhering to industry standards, provides precise and reliable testing for various applications.

The uv weathering tester simulates UV exposure, replicating the conditions materials would face in outdoor environments.

Product Standards & Technical Specifications

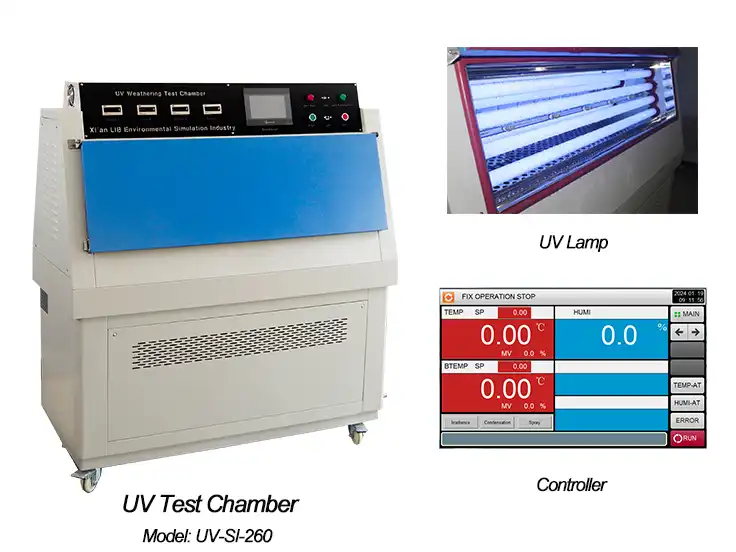

Model	UV-SI-260
Internal Dimension (mm)	4501170500
Overall Dimension (mm)	61013301470
Specimen Holder Size(mm)	75*150
Specimen Capacity	56 Pieces
Irradiation Source	Fluorescent UV lamps (8) - 40 W
Temperature Range	Ambient ～ 90 ℃ ±2℃
Black Panel Temperature (BPT)	35 ～ 80 ℃
Humidity Range	≥95% RH
Bandwidth	290 ~ 400nm
Irradiance Control	0.3~20 W/㎡
Water Spray Cycle	1~9999H59M (Adjustable)
Distance of Specimen and lamp	50mm
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water Supply System	Automatic water supply, Water purification system
Safety Device	Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel

Product Details

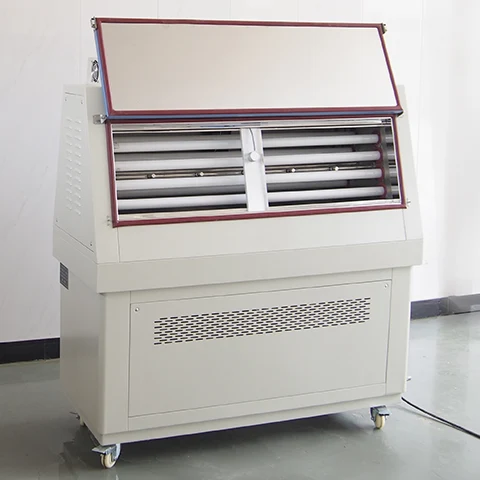

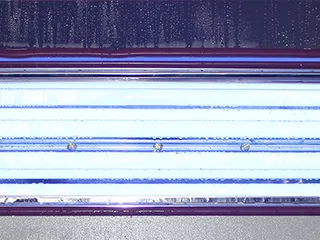

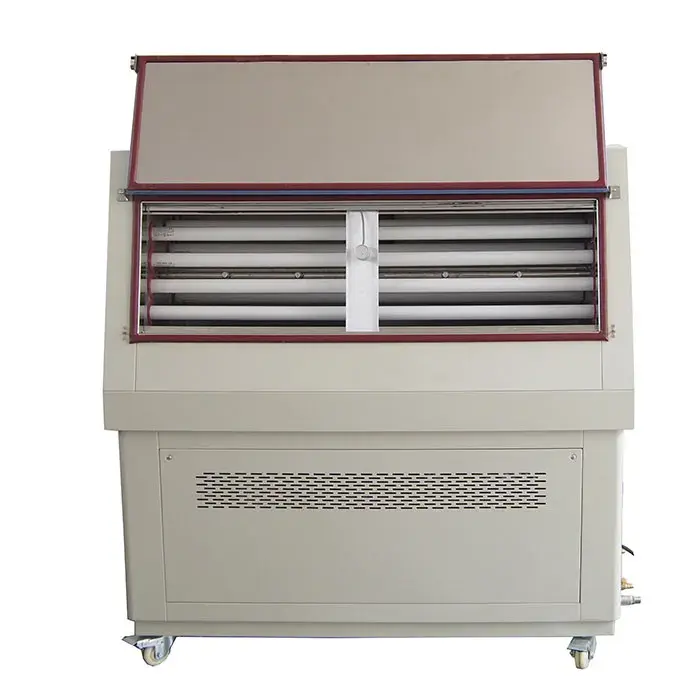

Irradiation Source

The chamber is equipped with total of 8 lamps, each 40W.

Easy to change UV lamps

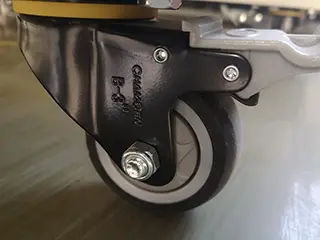

Castors

Install 4 castors for ease moving, and with brakes function.

Caster height adjustable.

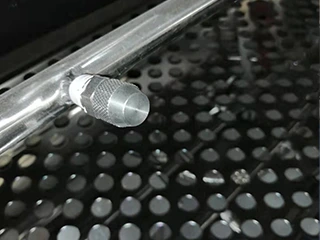

Water Spraying

Equipped with ten nozzles, the diameter of the nozzle is 0.5mm, the settlement is 0.8 ~ 1.0mm / 80cm2 / H

Functions

1.UV Exposure Simulation:

The UV weathering tester simulates UV exposure, replicating the conditions materials would face in outdoor environments.

2.UV Spectrum Control:

Allows for control over the UV spectrum, enabling simulation of specific wavelengths of UV light to match real-world conditions.

3.Temperature Control:

Includes mechanisms to control and adjust temperature levels, mimicking outdoor environmental variations.

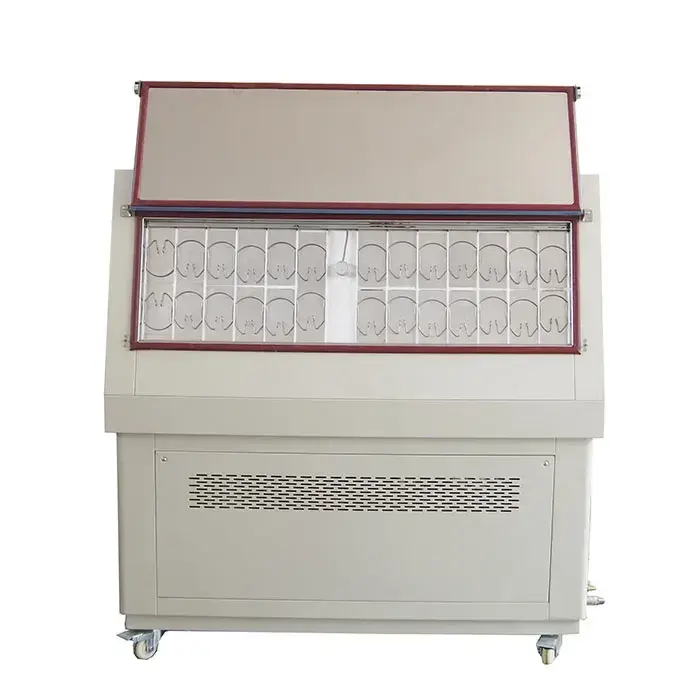

4.Sample Placement:

Provides a controlled environment for placing test samples, including various materials or finished products.

5.Automatic Monitoring and Control Systems:

Features automatic systems that monitor and control parameters such as UV intensity, temperature, humidity, and exposure time, ensuring precision and consistency.
