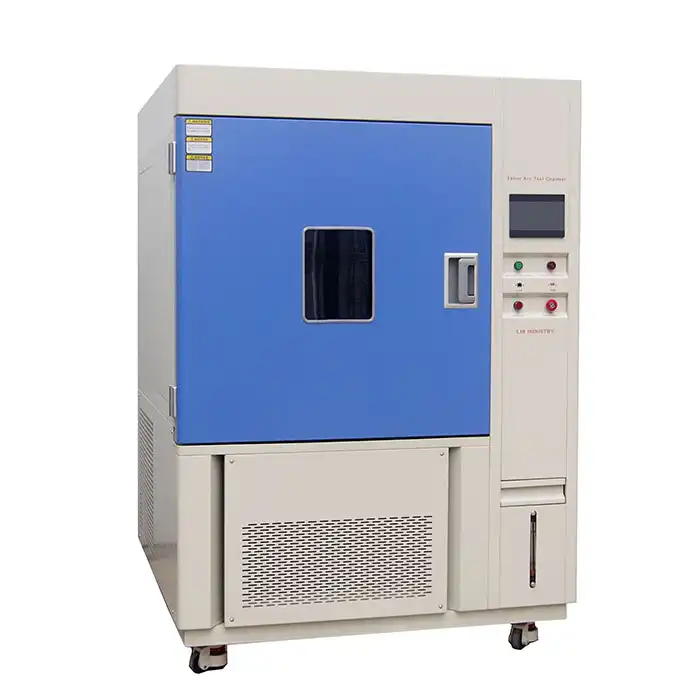

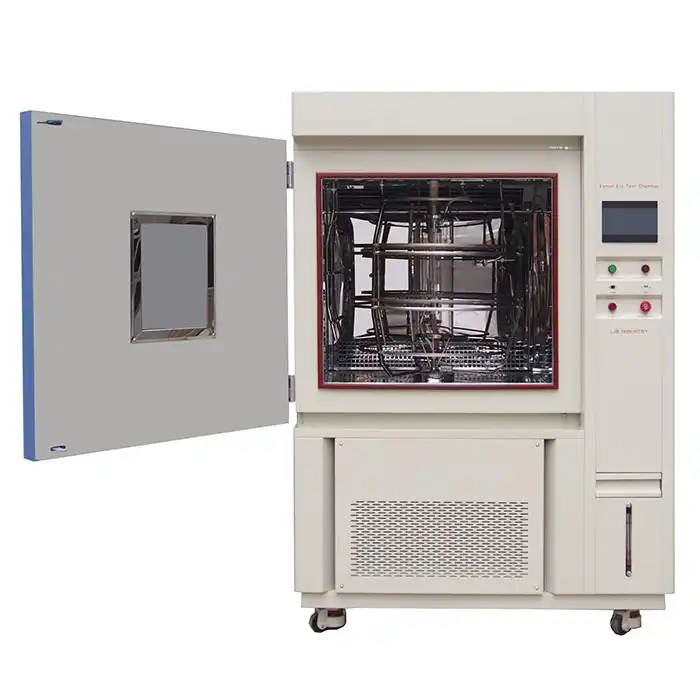

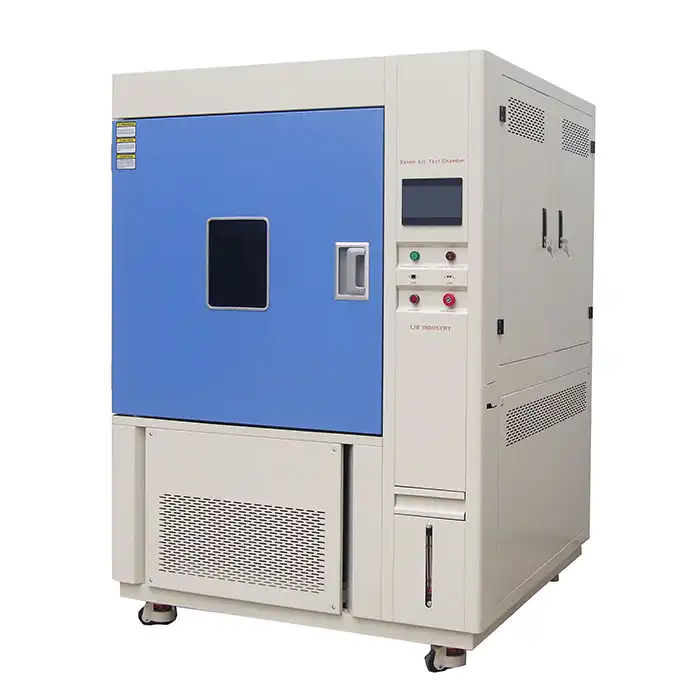

Xenon Arc Aging Test Chamber
Name:xenon test chamber
Model:XL-S-750
Irradiance Range:35~150 W/㎡
Bandwidth Measurement:300nm~400nm (340nm or 420nm)
Specimen Capacity:42pcs
Xenon Weatherometer Temperature Range:Ambient ～ 100 ℃ ±2℃
Xenon Arc Aging Test Chamber Manufacturer & Supplier
LIB Industry is a manufacturer and supplier of Xenon Arc Aging Test Chamber, It is designed to accurately simulate and assess the effects of sunlight exposure, including UV radiation, on various materials and products. With the use of the UV test chamber, businesses can significantly reduce product failure rates, minimize the risk of product recalls, and safeguard the integrity of their products.
Our uv weathering chamber complys with international standards such as ASTM G155, ISO 4892, and SAE J1960/J2527, which define the requirements for testing the weathering and lightfastness of materials.
Technical Specifications
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Humidification System | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Product Details
|
|
|
| Cooling system Mechanical compression refrigeration system. French TECUMSEH compressor Environmentally friendly refrigerant | Irradiation Source Irradiation Source with 1 piece of 4500 W water-cooled xenon lamp Various filters available for choose | Sensor PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees. |
|
|
Xenon Arc Aging Test Chamber Features
Our xenon arc aging test chamber offer precise control of irradiance, temperature, and humidity for accurate simulation of sunlight exposure, customizable exposure areas to accommodate different sample sizes, user-friendly interface for easy operation and monitoring, compliance with international standards for reliable testing, and comprehensive testing capabilities for evaluating material durability.
Application
Our xenon arc aging test chamber find applications across industries such as automotive, aerospace, coatings, plastics, textiles, and outdoor equipment. They are used to test a wide range of products, including automotive components, exterior coatings, plastic materials, textile fabrics, and outdoor furniture.
FAQ
Q: Can the weathering chambers accommodate specific sunlight exposure simulation requirements?
A: Yes, our chambers can be customized to simulate specific sunlight exposure conditions, including sunlight spectrum, temperature, and humidity, to meet specific testing standards.
Q: What is the lead time for ordering the xenon weatherometers?
A: 2 weeks, we provide door to door service.
