water immersion tank
Name:IPX7 IPX8 immersion tester
Model: R78-600
Pressure: 50m water depth pressure

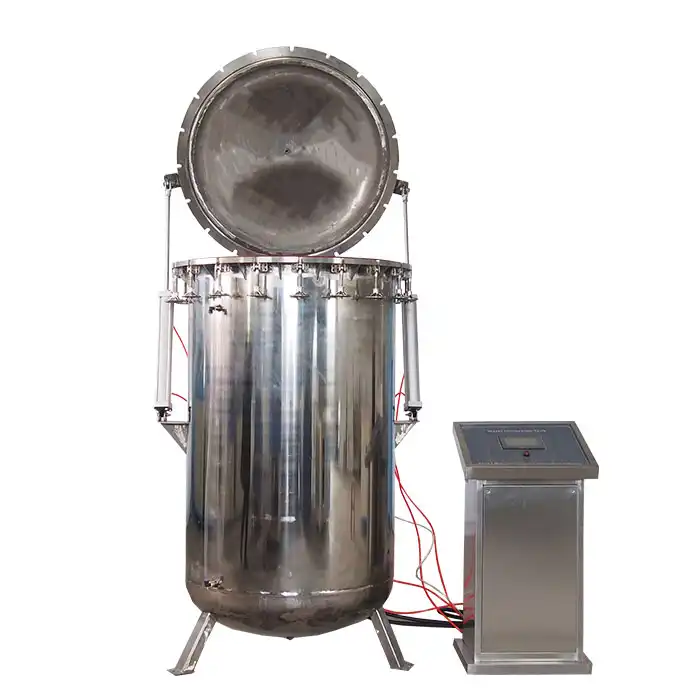

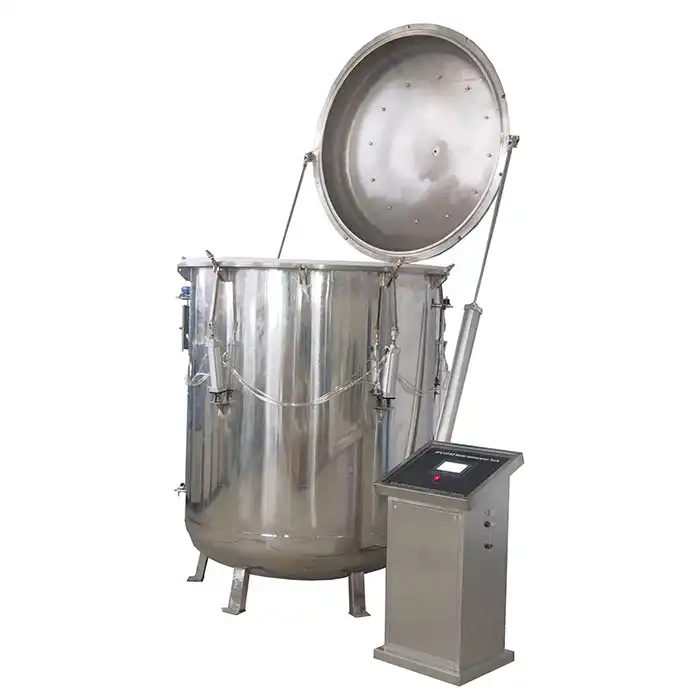

Open mode: Pneumatic lid
Material : A3 steel plate, wall thickness 15mm
Controller: Programmable touch screen controller
Water Supply System: Storage water tank, Automatic water supply

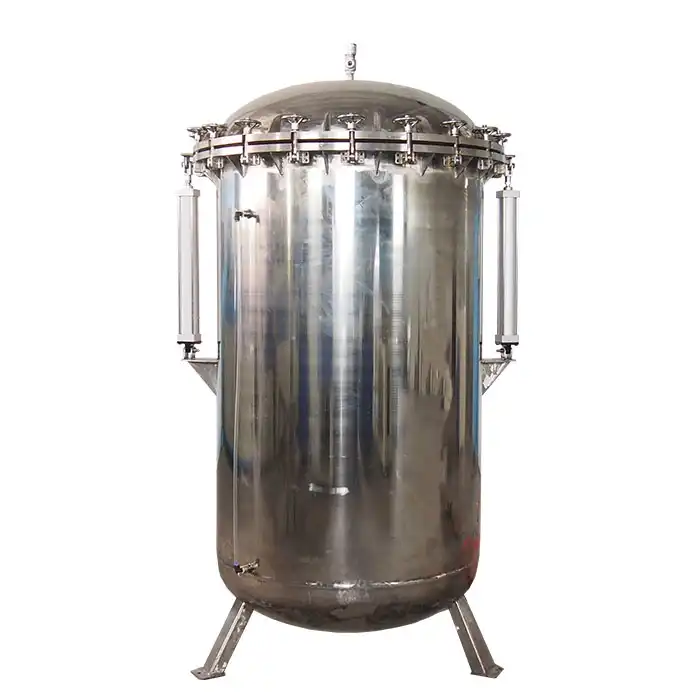

The tank is of cylindrical design, and the bottom must be supported by a tripod.
- Product Description
water immersion tank Manufacturer & Supplier
The water immersion tank is a robust and reliable testing instrument designed to assess the water resistance of electronic devices, components, and other products. With its advanced features and precise testing capabilities, this immersion tester is an essential tool for evaluating the waterproof performance of various items in accordance with international standards.
Technical Specifications
Model | R78-600 |
Internal Dimension (mm) | Diameter 600mm * Height 1500 mm |
Overall Dimension (mm) | Diameter 800mm * Height 1800 mm |
Pressure | 50m water depth pressure |
Open mode | Pneumatic lid |
Material | A3 steel plate, wall thickness 15mm |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Water Supply System | Storage water tank, Automatic water supply |
Product Details
|
|
|

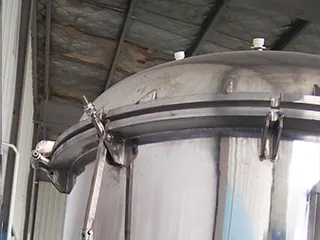

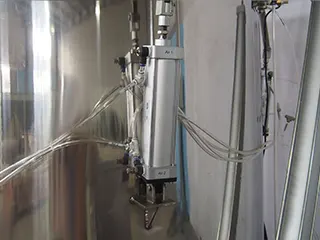

Fastening valve A3 steel plate with galvanized coating; wall thickness 15mm. Electrostatic treatment | Hydraulic Rod The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Lan & USB USB can download test data, LAN interface is used to connect to the Internet to achieve remote control of the machine. |
|
|
Key Features
Sure, here's a detailed expansion on the features of the water immersion tank:
1. Precise and automated testing for IPX7 and IPX8 compliance:
It is equipped with advanced sensors and control systems that enable precise and automated testing according to the IPX7 and IPX8 standards.
2. Durable stainless steel construction for long-term usage:
This immersion tester is constructed from high-quality stainless steel, providing exceptional durability and resistance to corrosion.

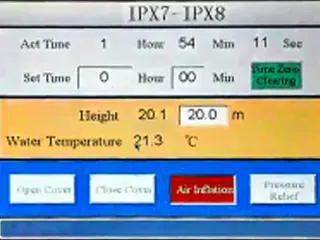

3. Intuitive touch-screen interface for easy operation:
The immersion tester features an intuitive touch-screen interface that simplifies the operation process. Users can easily input testing parameters, monitor the testing progress, and retrieve results with minimal training or technical expertise, enhancing overall usability and efficiency.
4. Accurate pressure control system for consistent testing conditions:
With its advanced pressure control system, the immersion tester maintains precise and consistent testing conditions throughout the entire testing process. lts.
5. Supports customized testing solutions to meet specific requirements:
The immersion tester is designed to accommodate customized testing protocols and specific industry requirements. Whether it's adjusting immersion depths, modifying pressure settings, or implementing unique testing procedures, the system can be tailored to address diverse testing needs, offering flexibility and adaptability for various applications.
About LIB
LIB industry is a leading manufacturer and supplier of IPX7 IPX8 Immersion Tester. We provide a wide range of standard and custom testing solutions with comprehensive products and service. We also can build a IP lab for you. Tell us your requirements, let us help you.
