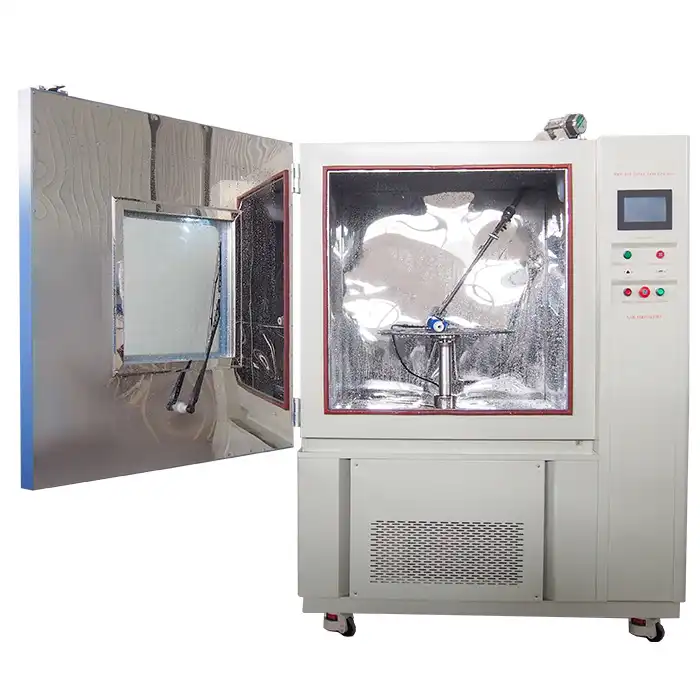

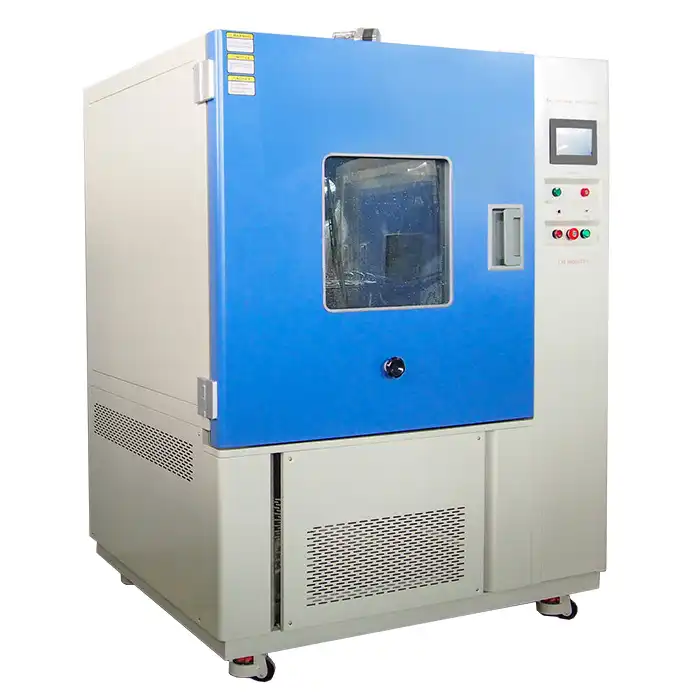

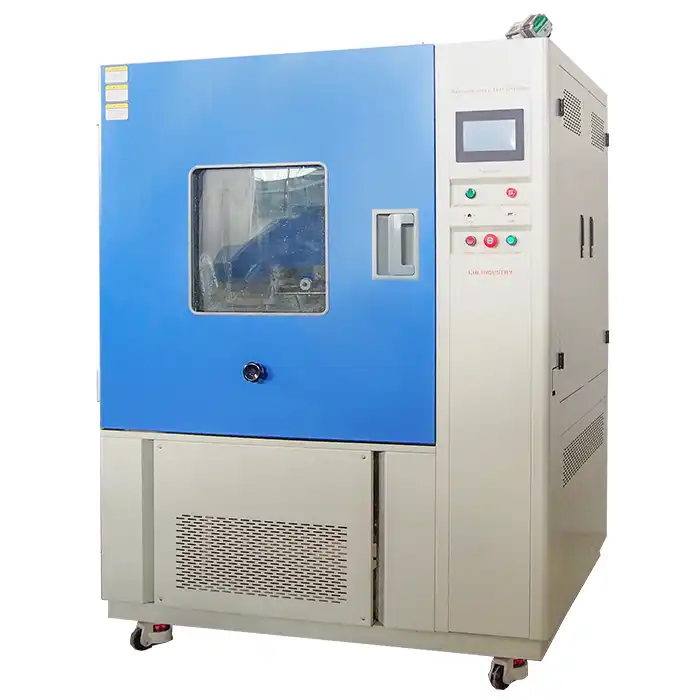

JIS D0203 Rain Test Chamber

JIS D0203 Rain Test Chamber can perform the combined test of IPX3 X4 X5 X6 in one chamber.
Model: R-1000JIS Capacity: 1000L/1500L/2000L and more
Door Lock: Electromagnetic lock;
Application: Lamps, Electric cabinets;
Standard: JIS D0203;
Product Description

JIS D0203 Rain Test Chamber Manufacturer & Supplier

At LIB Industry, we specialize in the manufacturing and supply JIS D0203 Rain Test Chamber that are essential for evaluating the ingress protection of enclosures against water. Our extensive range of standard and customized chambers is designed to meet the diverse needs of laboratories and industrial applications.

It complies with international standards such as IEC 60529 (IP code), ISO 20653, and MIL-STD-810. These standards define the requirements for testing the degree of protection against water ingress for various electrical and mechanical enclosures, ensuring that our chambers meet the water ingerss protection test.

Technical Specifications

Model

R-1000JIS

Internal Dimensions (mm)

1000*1000*1000 D*W*H

Overall Dimensions (mm)

1100*1460*1900 D*W*H

Interior Volume (L)

1000

Distance from Specimen to Nozzle

Approx.400mm

Rain Nozzle

2 holes

Rain Nozzle Hole

Φ0.5mm

R1 Water Flow Rate

1.9L/min.

R2 Water Flow Rate

3.3L/min.

Spray Nozzle

40 holes

Spray Nozzle Hole

Φ1.2mm

S1 Water Flow Rate

24.5L/min

S2 Water Flow Rate

39.2L/min

Water Pressure at Nozzle

0.03 ~ 0.30MPA

Turntable Rotation Speed

17r/min

Water Pressure Control

Flow meter

Controller

Programmable color LCD touch screen controller


Ethernet connection, PC Link, USB

Build-in Water Tank(mm)

370*375*950

View Window Size(mm)

475*475

Water supply system

Water tank, booster pump, Automatic water supply, Water purification system

Safety Device

Over-temperature Protection; Over-current Protection;

Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Observation Window

Double layer insulating glass with wiper

Power Supply

380V 50Hz

Maximum Noise

65 dBA

Environmental Conditional

5℃～+35 ℃   ≤85% RH

Standard

JIS D0203

Product Details

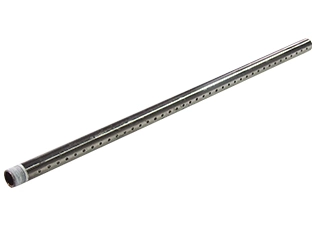

Spray Nozzle

The test device consists of pressurized water pump, flow meter, water pipe, shunt device, spray bracket and spray nozzles.

Turntable

The turntable is made of 304 stainless steel

Speed and angle can be adjusted

Sample should be firmly fixed.

PC Link

Ethernet connect to PC for easy operation

Match to the local laboratory software

USB to download data




JIS D0203 Rain Test Chamber Key Features

●Our chambers offer precise control of water pressure and temperature for accurate testing, an adjustable spray angle to simulate different water spray conditions.

●Customizable test parameters to meet specific testing requirements.

●a user-friendly interface for easy operation and monitoring, and compliance with international standards for reliable testing.

APPLICATION

The JIS D0203 Rain Test Chamber finds applications in industries such as electronics, lighting, and automotive, ensuring products meet specific IP rating standards for water ingress protection.

FAQ

Q: Can the JIS D0203 Rain Test Chamber accommodate specific water spray simulation requirements?
A: Yes, our chambers can be customized to simulate specific water spray conditions, including intensity, angle, and duration, to meet specific testing standards.

Q: What is the lead time for ordering chambers?
A: Standard delivery time is 2 weeks, and some models are in ready to ship.
