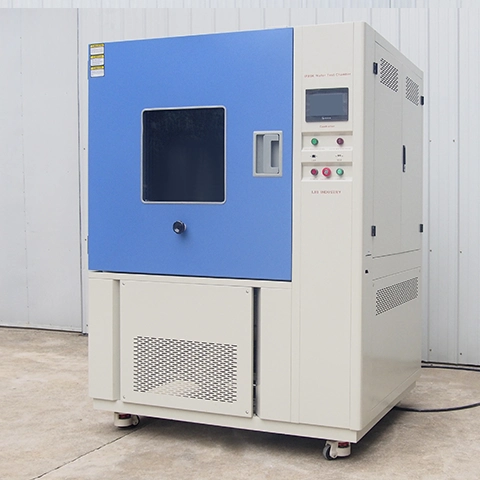

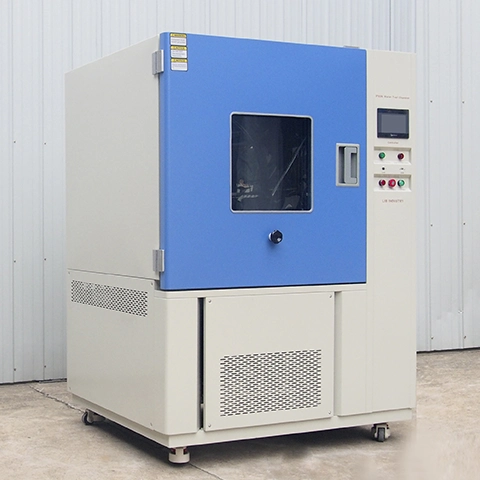

Water Ingress Test Chamber
Name: water ingress test chamber
Model: RD-800C
Capacity: 800L/1000L/1500L/2000L and more
Standard: IEC 60529, ISO20653
Drip Tray Size: 800*800
IP Rate: IPX1 X2 X3 X4 X5 X6, IPX6K
Water Ingress Test Chamber Manufacturer & Supplier
LIB industry Water Ingress Test Chamber is an essential apparatus designed to assess products' resistance to water intrusion, simulating various environmental conditions. It is crucial in evaluating products' durability and reliability, especially in industries where protection against water ingress is vital.
Our product adheres to international standards such as IEC 60529 ensuring precise and reliable testing outcomes. It validates the level of protection provided by enclosures against water ingress.
Technical Specifications
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
Overall Dimensions (mm) | 1180*1420*1920 | 1540*1820*2200 |
Useful Volume (L) | 810 | 2400 |
Oscillating Tube Radius | 400mm | 600mm |
Drip Tray Size | 600*600 | 1000*1000 |
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Turntable Rotation Speed | 1r/min (Adjustable speed) | |
Water Pressure Control | Flow meter | |
Controller | Programmable color LCD touch screen controller, Ethernet connection | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Observation Window | Double layer insulating glass with wiper | |
Product Details
|
|
|

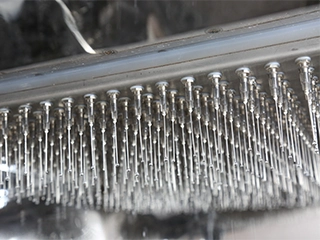

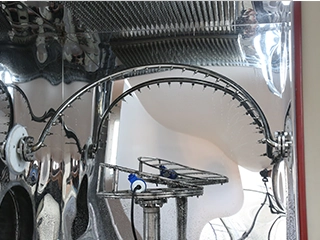

| Drip Tray The drip tray is made of stainless steel Drip holes are evenly distributed | Build-in lighting The built-in dustproof LED lighting inside the workroom Makes it clear to observe the test specimen. | Oscillating Tube Oscillating tube is made of stainless steel. Oscillating tube range can be reached to ±45°, ±60°, ±90°, ±180° |
|
|
Features and Advantages
Versatile Testing Modes: Simulates various water intrusion scenarios.
Adjustable Water Pressure: Allows testing at different pressure levels.
Adaptable Test Area: Accommodates different product sizes.
Precise Control System: Ensures accurate and repeatable testing.
Water Ingress Test Chamber Application
The Water Ingress Test Chamber has wide-ranging applications across industries that require testing products against water exposure. In the automotive industry, it can be used to test the water resistance of vehicle components like lights, wiring harnesses, and control modules. Automakers need to ensure their vehicles can withstand rain, splashes, car washes, and other wet conditions. The chamber allows systematic testing of different water spray intensities and angles to simulate real-world conditions.
In electronics, the chamber is critical for verifying waterproof ratings of devices like smartphones, tablets, and wearables. Tech companies must validate that devices maintain functionality when splashed or even fully submerged. Different spray types and durations can be programmed into the chamber.
FAQ
Q: What standards does the chamber comply with?
A: The chamber adheres to international standards such as IEC 60529 IPX1 X2 X3 X4 X5 and X6.
Q: Can this chamber accommodate various product sizes?
A: Yes, the Water Ingress Test Chamber can be adjusted to accommodate different product sizes for comprehensive testing.
