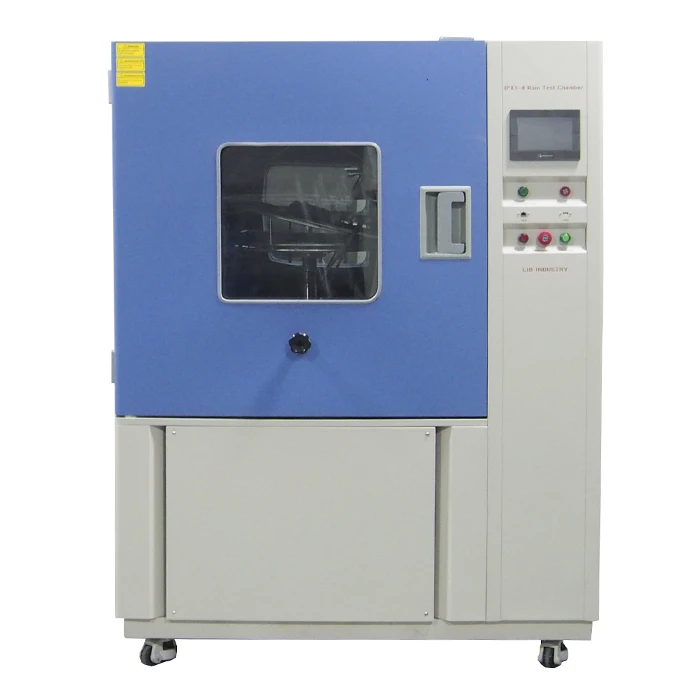

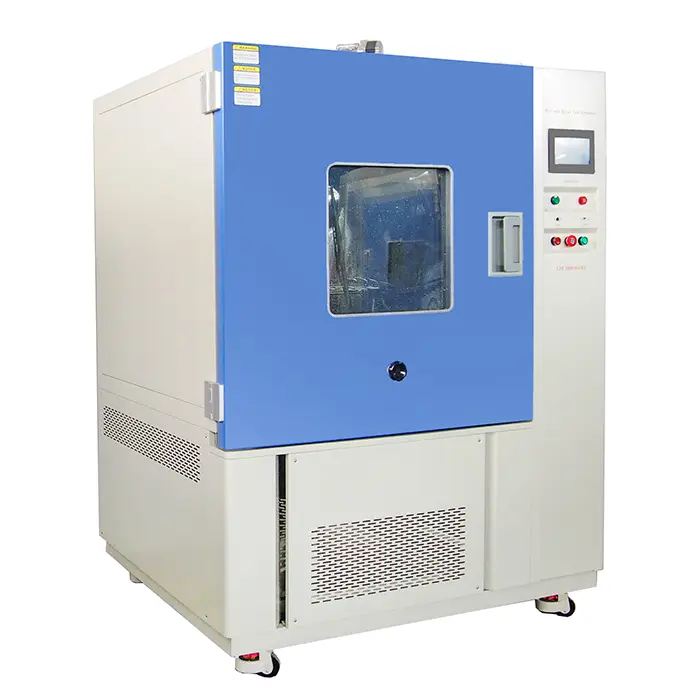

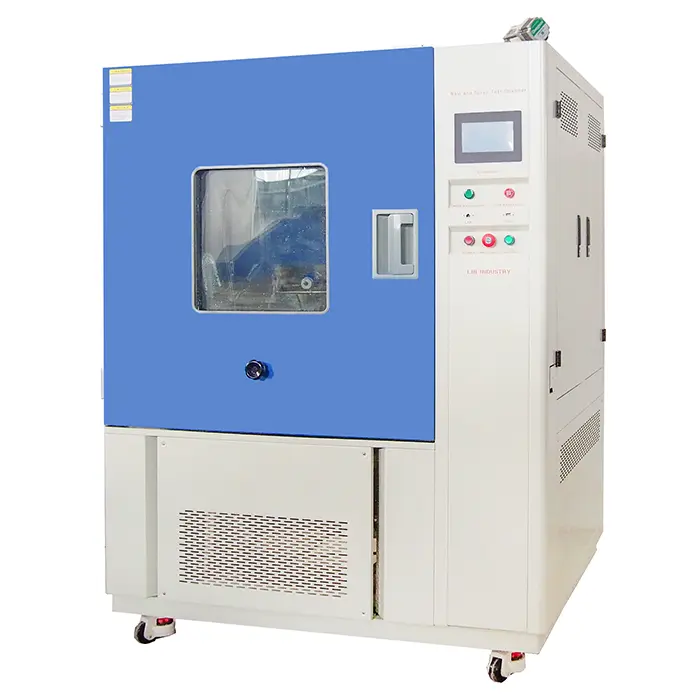

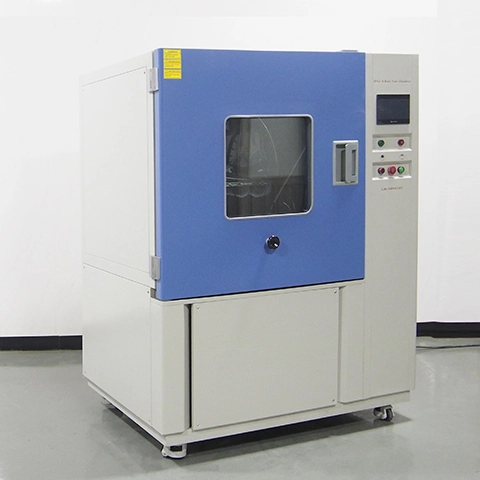

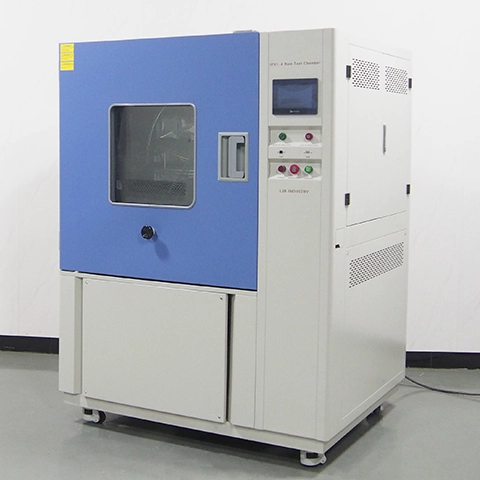

IP Test Chamber
Name: ip test chamber
Model: RD-800C
Capacity: 800L/1000L/1500L/2000L and more
Standard: IEC 60529, ISO20653
Drip Tray Size: 800*800
Hole Spacing: 50 mm
IP Test Chamber Manufacturer & Supplier
LIB industry is a leading manufacturer and supplier of IP test chamber, offering a diverse range of standard and customized solutions with comprehensive certification and test reports. Our IP test chambers are designed to assess the degree of protection provided by enclosures against the ingress of solid particles and liquids, ensuring the reliability and durability of electronic and mechanical products in challenging environmental conditions.
Our IP test chambers comply with international standards such as IEC 60529 (IP code). These standards define the requirements for testing the degree of protection against solid objects and water ingress for various electrical and mechanical enclosures.
Technical Specifications
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
Overall Dimensions (mm) | 1180*1420*1920 | 1540*1820*2200 |
Useful Volume (L) | 810 | 2400 |
Oscillating Tube Radius | 400mm | 600mm |
Drip Tray Size | 600*600 | 1000*1000 |
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Turntable Rotation Speed | 1r/min (Adjustable speed) | |
Water Pressure Control | Flow meter | |
Controller | Programmable color LCD touch screen controller, Ethernet connection | |

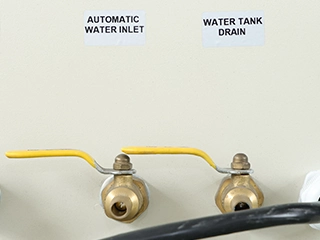

Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Observation Window | Double layer insulating glass with wiper | |
Product Details
|
|
|

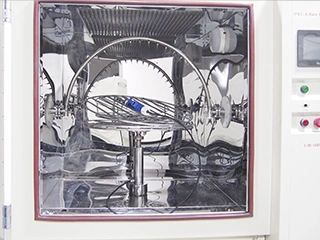

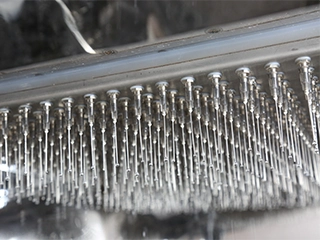

| Drip Tray The drip tray is made of stainless steel Drip holes are evenly distributed | Oscillating Tube Spray nozzle is detachable special nozzle. Oscillating tube range can be reached to ±45°, ±60°, ±90°, ±180° | Water Re-circulation Water purifier: mainly purification from water source to water tank. Water re-circulation system that reduced |
|
|
IP Test Chamber Features and Advantages
Precise control of water flow and temperature accurate testing
Customizable test parameters to meet specific IP code requirements
User-friendly interface for easy operation and monitoring
Compliance with international standards for reliable testing
Comprehensive evaluation of product protection against dust and water ingress
Application Areas
Our sand and dust IP test chamber find applications across industries such as electronics, automotive, aerospace, and telecommunications. They are used to test a wide range of products, including electronic devices, automotive components, outdoor equipment, and lighting fixtures, among others.
FAQ
Q: Can the IP test chamber accommodate specific IP code testing requirements?
A: Yes, our IP test chambers can be customized to conduct tests according to specific IP code classifications, ensuring compliance with relevant industry standards.
Q: What is the lead time?
A: 2 weeks, and provide door to door service. Contact us to get details.
