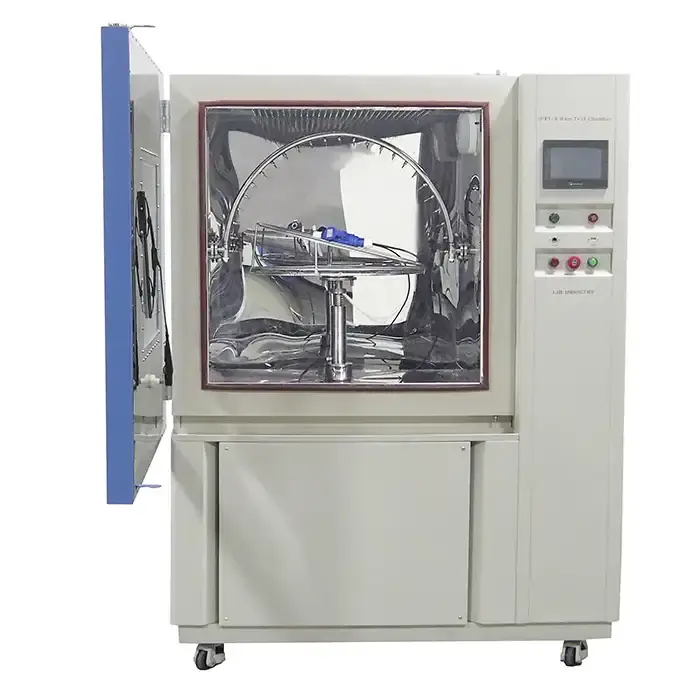

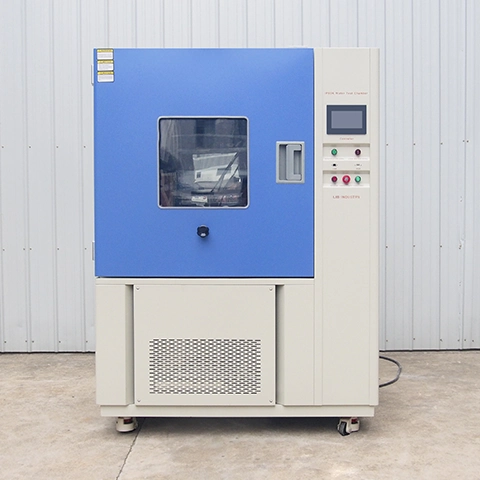

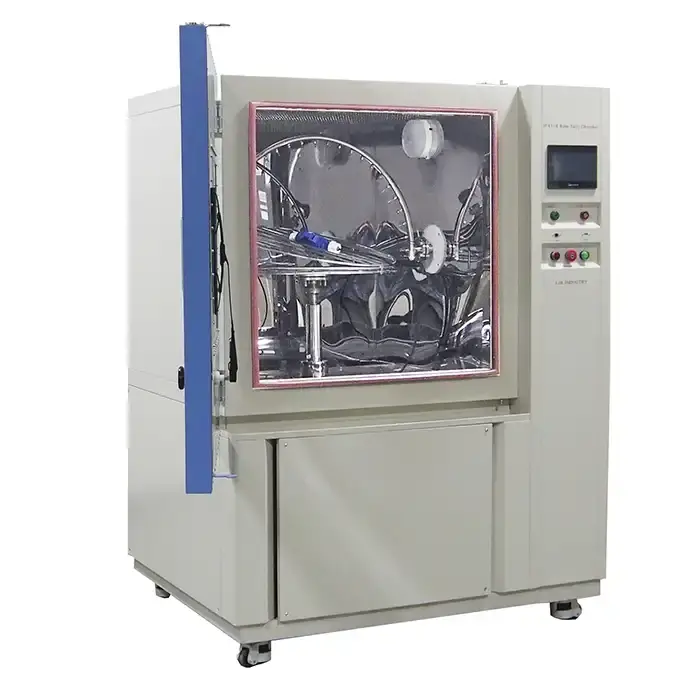

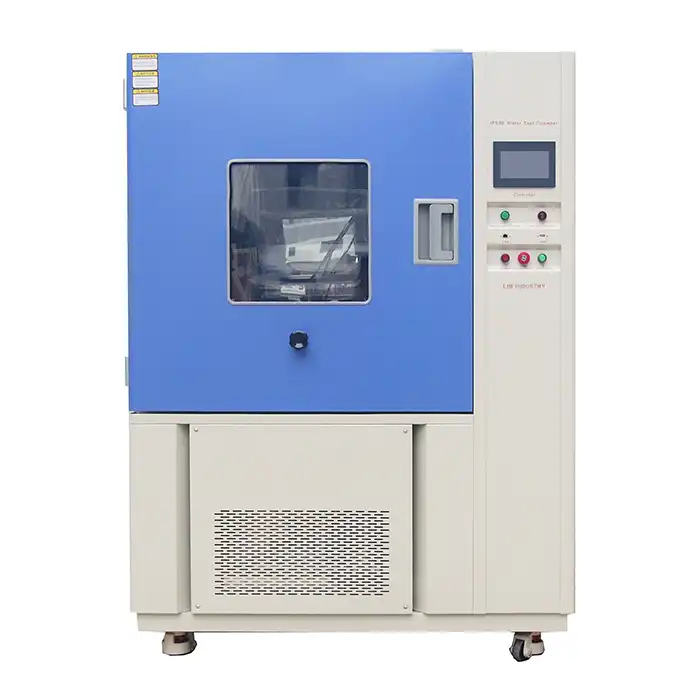

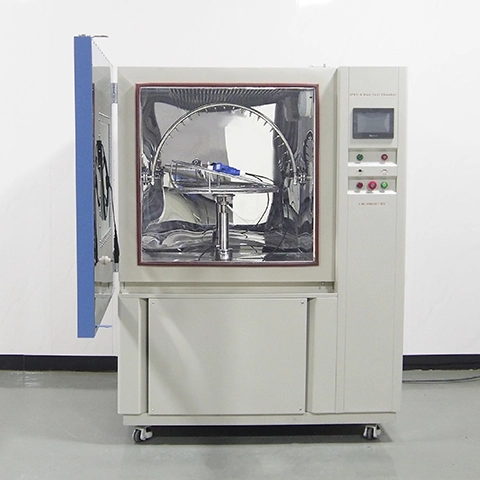

R-800C IPX3 Rain Spray Head

LIB Industry's R-800C IPX3 Rain Spray Head

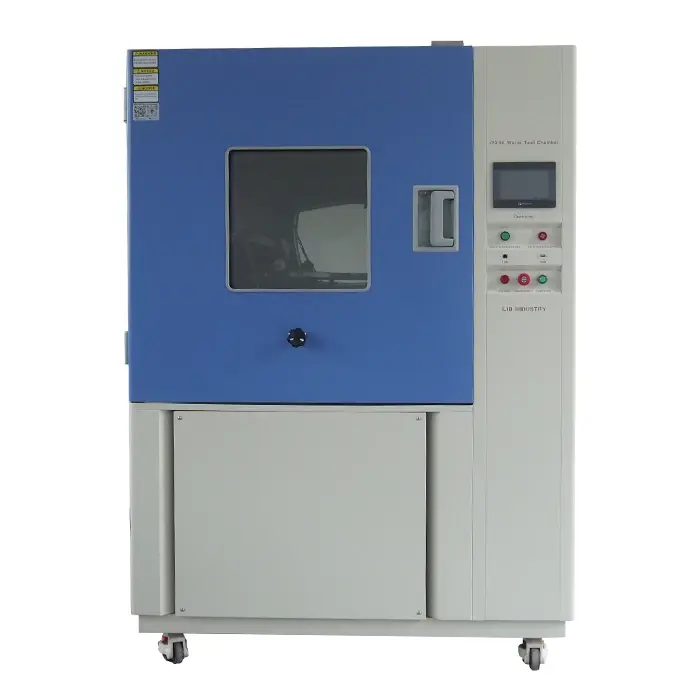

The R-800C IPX3 Rain Spray Head is a specialized apparatus designed to assess the resistance of products against water ingress, specifically against spraying and splashing water. This chamber is available in 800L, 1200L, and 2000L capacity, and more large size.

Product Standards

1.IPX3: Spraying Water

Description: Protected against spraying water at any angle up to 60 degrees from vertical.

Test Procedure: The test involves spraying water on the product in a manner that simulates exposure to rain or water splashes.

2.IPX4: Splashing Water

Description: Protected against splashing water from any direction.

Test Procedure: This test is similar to IPX3 but involves a higher level of water volume and pressure, as it is designed to assess resistance to water splashes.

Technical Specifications

Product Details

R-800C IPX3 Rain Spray Head Functions

1.Simulating Environmental Conditions:

The R-800C IPX3 Rain Spray Head is designed to replicate specific environmental conditions where products may be exposed to spraying and splashing water.

2.Applying Controlled Water Exposure:

The chamber allows for controlled and standardized application of water exposure to the product under test.

3.Testing Different Angles and Water Volumes:

For IPX3 testing, the chamber facilitates the controlled spraying of water at various angles up to 60 degrees from vertical. For IPX4 testing, higher water volumes and pressures are used to simulate water splashing from any direction. This variation helps assess the product's resistance under different water exposure scenarios.

4.Assessing Water Resistance Levels:

The primary function is to evaluate the degree of water resistance exhibited by the product. This assessment is based on the IPX3 or IPX4 rating, indicating the product's capability to resist water under specific testing conditions.

Key Features

●Versatility:

The chamber is adaptable to conduct both IPX3 and IPX4 tests, allowing for a comprehensive assessment of a product's water resistance under various simulated conditions.

●Controlled Water Application:

The chamber provides precise control over the spraying and splashing of water, ensuring consistent and repeatable testing conditions. This control is essential for accurate comparisons between different products.

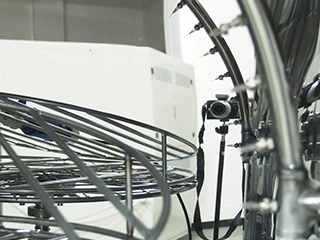

●Adjustable Spray Angles:

For IPX3 testing, the chamber allows the spraying of water at different angles up to 60 degrees from vertical, simulating conditions such as rain or water splashes. This feature enables a thorough evaluation of a product's resistance to water from different directions.

●Water re-cycle system:

The automatic water inlet system realizes automatic water inlet into the equipment water tank. The water circulation system realizes water recycling, which saves water resources and facilitates testing.

Application Areas

The R-800C IPX3 Rain Spray Head finds applications in industries such as electronics, lighting, and automotive, ensuring products meet specific IP rating standards for water ingress protection.
