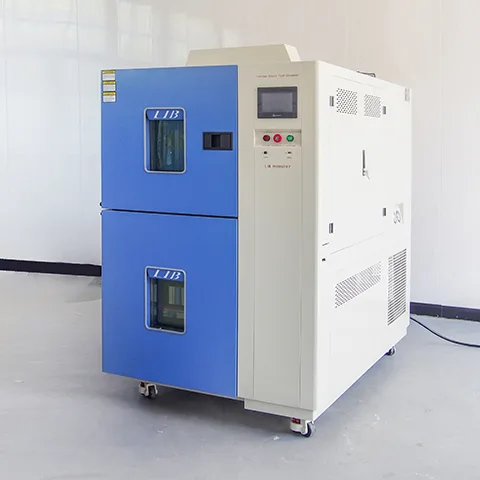

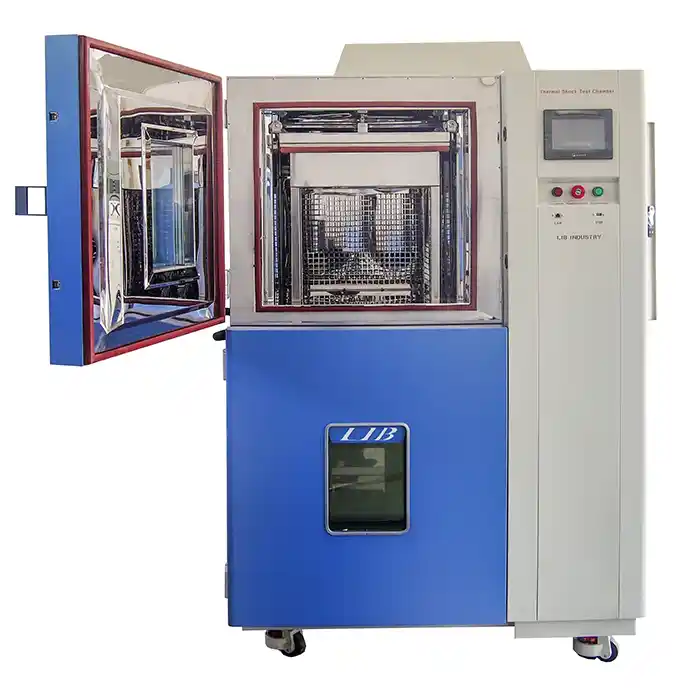

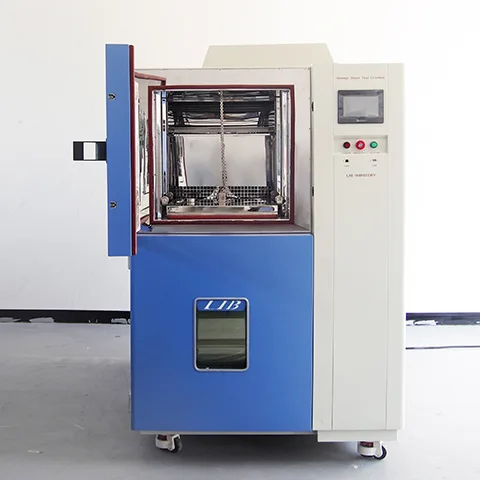

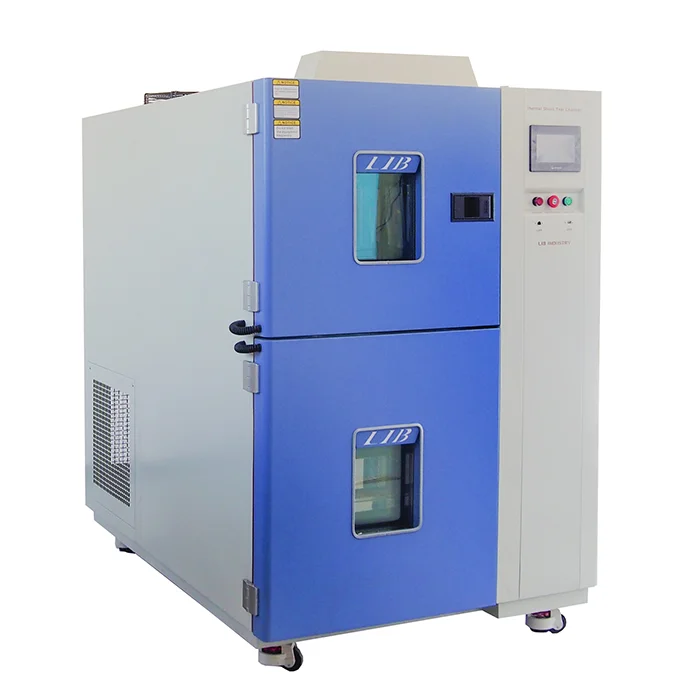

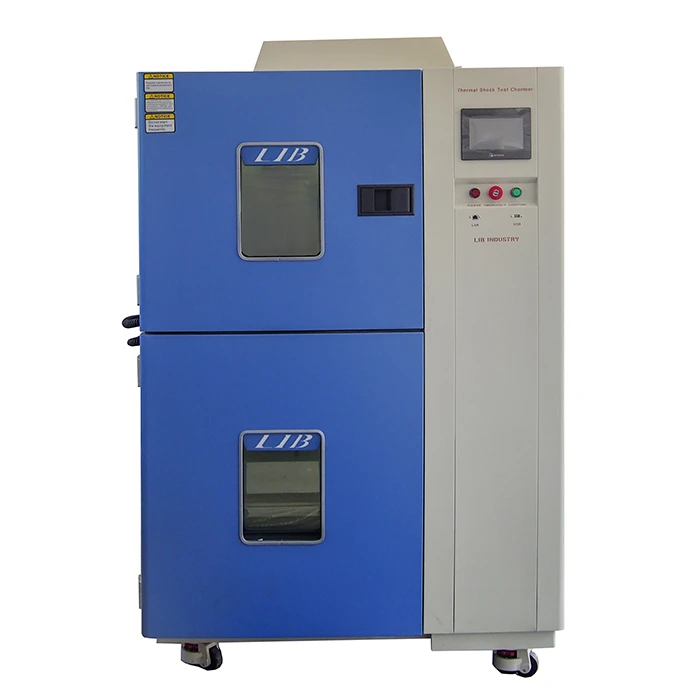

Temperature Shock Chamber

LIB temperature shock chamber can be performed during thermal shock testing from -70 to +200°C, comes in a variety of sizes and performance configurations. Lower limit Temperature:-75℃ Upper limit Temperature:+220℃ Temperature Range:-70℃～+220 ℃ Temperature Recovery Time: Within 5 minutes The specimen automatic transferred from cold chamber to hot chamber by basket. Refrigerant: Environmental refrigerant

Send Inquiry

Product Description

Temperature Shock Chamber Manufacturer & Supplier

LIB industry's Temperature Shock Chamber designed to meet the demanding requirements of diverse industries. Our chamber facilitates precise simulation of extreme temperature changes, ensuring robust product quality and reliability. Compliant with international standards such as ASTM, ISO, and IE.

Technical Specifications:

Model	TS-162	TS-340	TS-500	TS-1000
Internal Dimensions (mm)	300300250	450450360	650650500	850850700
Overall Dimension (mm)	15608701545	171010201845	191012202265	211014202665
Interior Volume (mm)	22L	72L	211L	505L
Loading Capacity	20kg	30kg	50kg	60kg
Upper limit Temperature	+220℃
Heating Time	Ambient ~ + 200℃, within 30 minutes
Lower limit Temperature	-75℃
Cooling time	Ambient ~ -70℃, within 30 minutes
High Temperature Exposure Range	Ambient +20 ~ +200°C
Low temperature Exposure Range	–65 ~ -5°C
Temperature Fluctuation	≤±0.5℃
Temperature Deviation	≤±3 ℃
Temperature Recovery Time	Within 5 minutes
Cooling System	Mechanical compression refrigeration system
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	2 shelves

Product Details

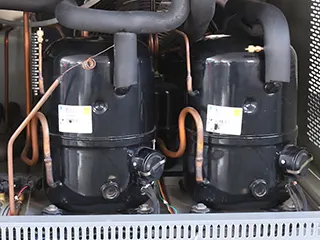

Cooling system

Mechanical compression refrigeration system

French TECUMSEH compressor

Environmentally friendly refrigerant

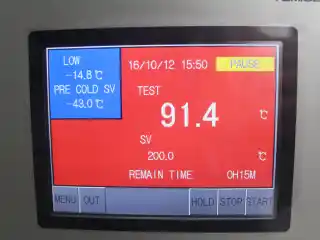

Controller

PID programmable color touch screen controller

Network connection computer.

Can create120 programs 100 segment.

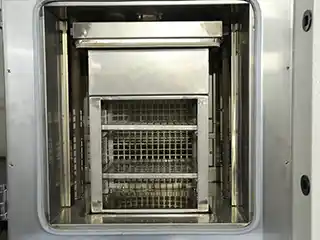

Basket

The internal material is 304 stainless steel

Two sample holderds

There are test holes at the top

Temperature Shock Chamber Key Features:

●Temperature Shock Chamber with rapid and precise temperature changes

●User-friendly interface for easy operation

●Robust construction for durability

●Automatic defrost configuration

Temperature Shock Chamber Application

Temperature shock chamber is suitable for testing electronic components, automotive parts, aerospace materials, and various consumer goods prone to extreme temperature variations.

FAQ:

Q: What is the lead time for orders?

A: Lead times vary based on customization requirements but typically range from 2 to 4 weeks.

Q: What's the cooling type ?

A: Air cooled and water cooled types. We will choose the suitable cooling type according to parameters.
