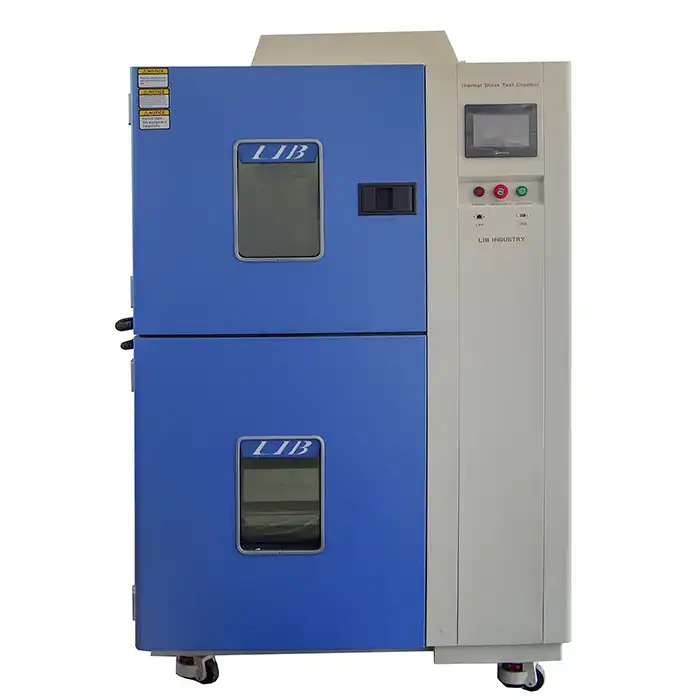

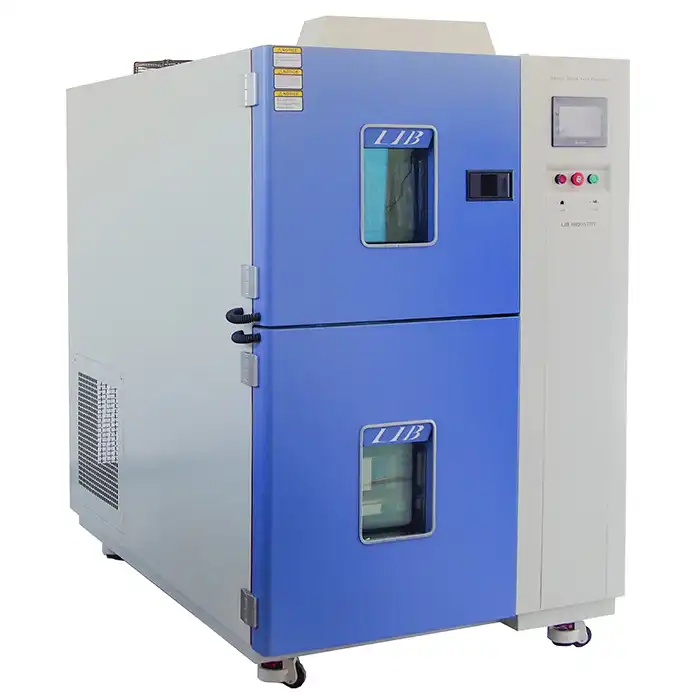

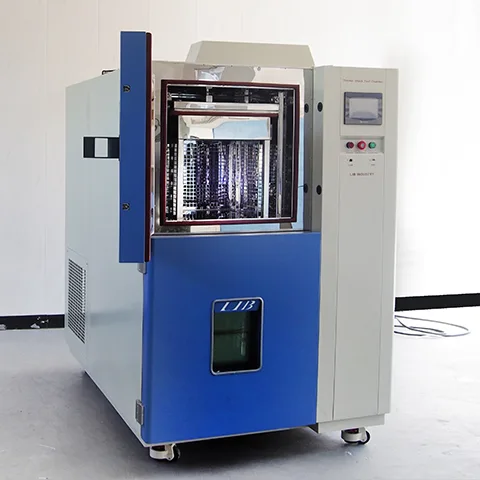

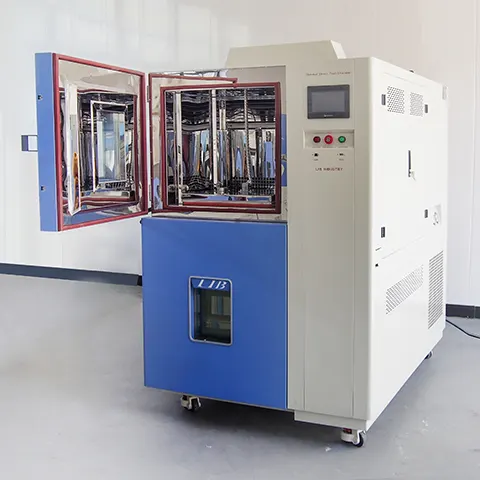

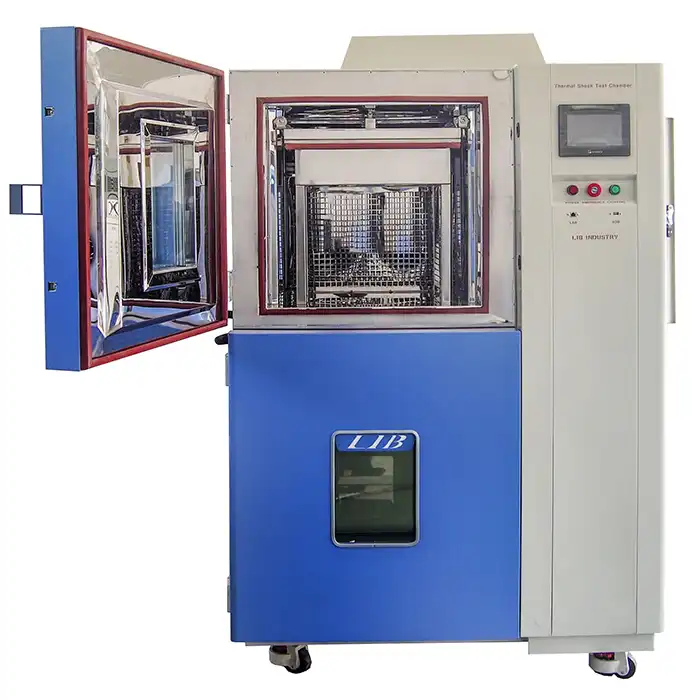

Temperature Shock Tester
Lower limit Temperature:-75℃
Upper limit Temperature:+220℃
Temperature Range:-70℃～+220℃
Temperature Recovery Time: Within 5 minutes
Refrigerant: Environmental refrigerant
Touch-screen programmble controller,Ethernet access
Temperature Shock Tester Manufacturer & Supplier
The Temperature Shock Tester is designed to subject specimens to extreme temperature variations for rigorous analysis and validation.
During the thermal shock test, the material or product is exposed to extreme temperature changes within a short period of time, typically in the range of seconds or minutes. This rapid temperature cycling can cause thermal stress, which can lead to cracking, delamination, or other types of failure.
Technical Specifications:
Model | TS-162 | TS-340 | TS-500 | TS-1000 |
Internal Dimensions (mm) | 300*300*250 | 450*450*360 | 650*650*500 | 850*850*700 |
Overall Dimension (mm) | 1560*870*1545 | 1710*1020*1845 | 1910*1220*2265 | 2110*1420*2665 |
Interior Volume (mm) | 22L | 72L | 211L | 505L |
Loading Capacity | 20kg | 30kg | 50kg | 60kg |
Upper limit Temperature | +220℃ | |||
Heating Time | Ambient ~ + 200℃, within 30 minutes | |||
Lower limit Temperature | -75℃ | |||
Cooling time | Ambient ~ -70℃, within 30 minutes | |||
High Temperature Exposure Range | Ambient +20 ~ +200°C | |||
Low temperature Exposure Range | –65 ~ -5°C | |||
Temperature Fluctuation | ≤±0.5℃ | |||
Temperature Deviation | ≤±3 ℃ | |||
Temperature Recovery Time | Within 5 minutes | |||
Cooling System | Mechanical compression refrigeration system | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Safety Device | Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection | |||
Exterior Material | Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
Standard Configuration | 2 shelves | |||
Product Details
|
|
|

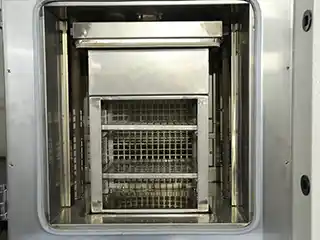

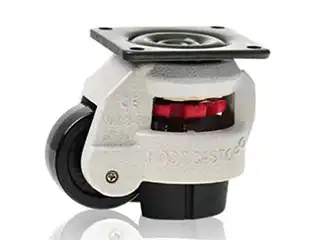

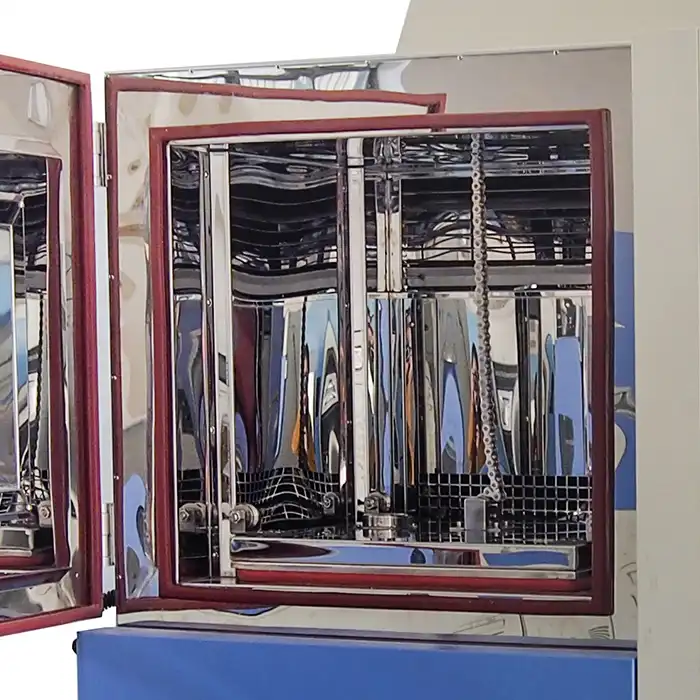

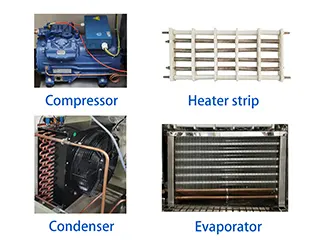

| Basket The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Cooling system & Heating system Mechanical compression refrigeration system French TECUMSEH compressor Nickel-chromium alloy heating wire | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable. |
|
|
Temperature Shock Tester Key Features
●Versatility: Adaptable to various specimen sizes and materials.
●Intuitive Controls: User-friendly interface for easy operation and programming.
●Reliability: Consistent and repeatable test cycles for accurate results.
●Automatic Defrost Configuration
Application Areas
The temperature shock tester finds application across diverse industries like aerospace, automotive, electronics, and material sciences, enabling comprehensive testing of products, materials, and components for reliability and performance under extreme conditions.
Certifications
All Temperature Shock Tester come with complete test reports and CE certifications.
Xi' An LIB Environmental Simulation Industry manufactures and sells environmental test chambers since 2009, including design, manufacuring, as well as sales and service around the world.
Our complete production line, from cutting, sheet metal, welding, coating, assembly, inspection to calibration, there are rigorously trained technicians working in the industry.The annual ISO9001: 2010 system certification ensures the efficiency and safety of the production process.
