thermal shock test equipment

LIB Industry thermal shock test equipment is designed to provide rapid transitions between hot and cold temperature zones.2-zone and 3-zone thermal shock chambers are available.
Lower limit Temperature:-75℃
Upper limit Temperature:+220℃
Temperature Range:-70℃～+220℃
The specimen automatic transferred from cold chamber to hot chamber by basket.
Temperature Recovery Time: Within 5 minutes
Refrigerant: Environmental refrigerant

Send Inquiry

Product Description

Thermal Shock Machine Manufacturer & Supplier

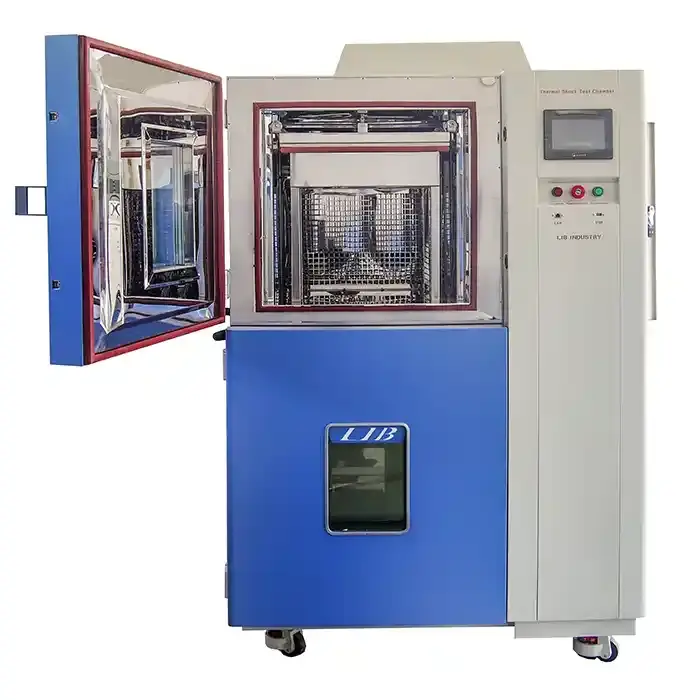

The LIB Industry thermal shock test equipment stands as a pinnacle in precision testing equipment, designed meticulously to endure extreme thermal conditions for various industrial applications. Its robust structure comprises three chambers: the high-temperature chamber, low-temperature chamber, and a transition chamber, facilitating rapid and precise temperature transitions within a short time.

Technical Specifications:

Model	TS-162	TS-340	TS-500	TS-1000
Internal Dimensions (mm)	300300250	450450360	650650500	850850700
Overall Dimension (mm)	15608701545	171010201845	191012202265	211014202665
Interior Volume (mm)	22L	72L	211L	505L
Loading Capacity	20kg	30kg	50kg	60kg
Upper limit Temperature	+220℃
Heating Time	Ambient ~ + 200℃, within 30 minutes
Lower limit Temperature	-75℃
Cooling time	Ambient ~ -70℃, within 30 minutes
High Temperature Exposure Range	Ambient +20 ~ +200°C
Low temperature Exposure Range	–65 ~ -5°C
Temperature Fluctuation	≤±0.5℃
Temperature Deviation	≤±3 ℃
Temperature Recovery Time	Within 5 minutes
Cooling System	Mechanical compression refrigeration system
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	2 shelves

Product Details

Basket

The internal material is 304 stainless steel, rust-proof to high and low temperature and moisture corrosion; double layer sample racks

Cooling system

The two-zone thermal shock chamber has two cooling options, air cooling and water cooling. Water cooling requires a water tower

PC Link

Ethernet connect to PC for easy operation

Match to the local laboratory software

USB to download data

Key Advantages:

●Rapid temperature transitions for efficient testing

●Accurate and uniform temperature distribution

●Robust construction for prolonged durability

●Friendly user interface for easy operation

●Comprehensive safety features for operator protection

●Customizable chamber sizes for diverse testing needs

Application:

The LIB Industry's thermal shock test equipment finds applications across various industries such as aerospace, automotive, electronics, and materials science. It's indispensable in testing the resilience of materials and components used in these sectors under extreme temperature changes.

FAQ:

1. What is the warranty period for the thermal shock test equipment?

LIB Industry provides a standard warranty period of 36 months.

2. Can the machine be customized for specific chamber sizes?

Yes, LIB Industry offers customization options for chamber sizes.

Do you provide installation services?

Yes, we offer installation and training services upon request.
