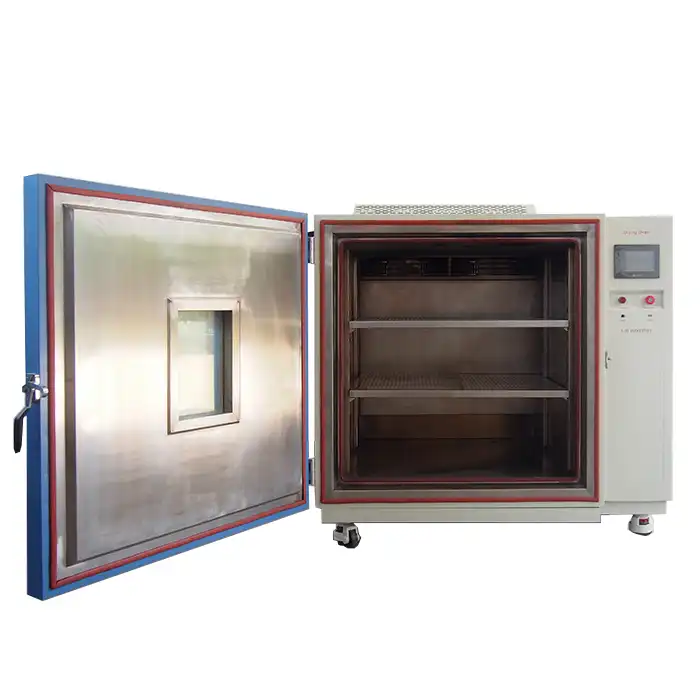

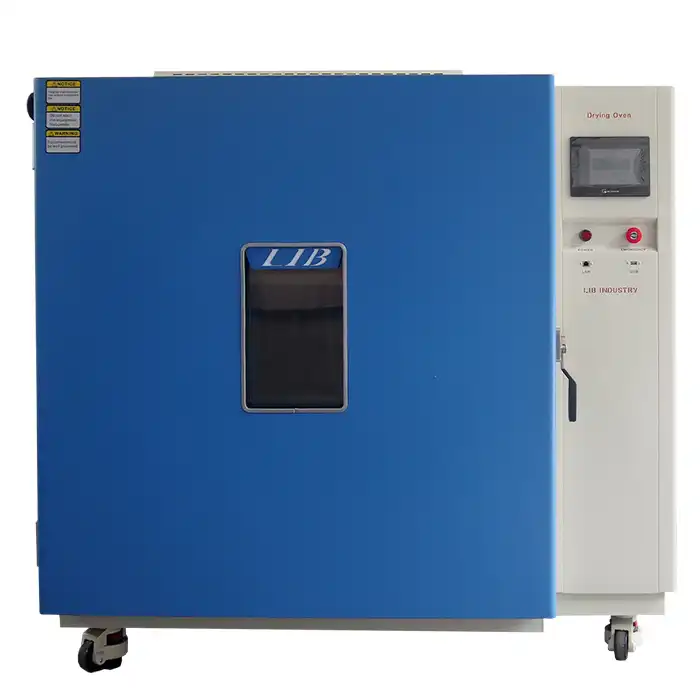

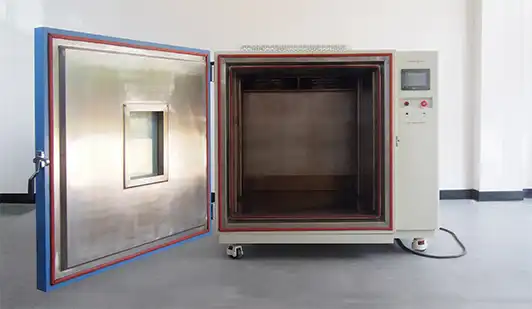

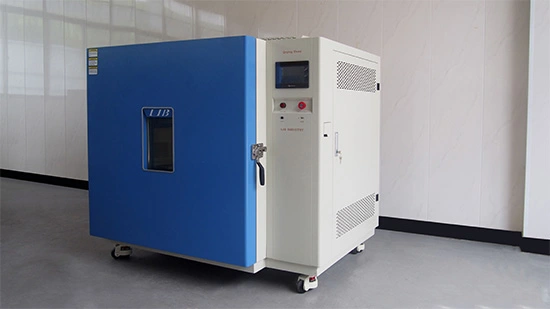

Industry Oven

LIB industry oven provides the widest range of temperature conditions.
Temperature Range:Ambient ~+250 ℃ / +400 ℃/+900 ℃
Heating Rate: 6℃/min
Controller: PID controller, programmble
Send Inquiry
  • Product Description

LIB Industry oven are used across various industries for heating, drying, curing, and baking processes. For example, in Chemical & Plastics industry – It is used for polymer curing, drying chemicals, and removing moisture from material

Features

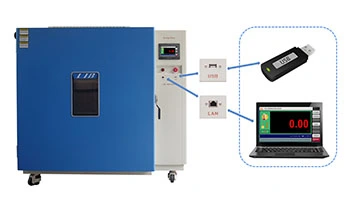

Remote control

You can connect to your computer and control the device remotely

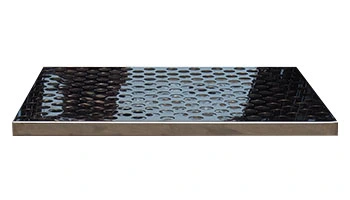

Sample racks

Punch type sample holder to ensure air circulation

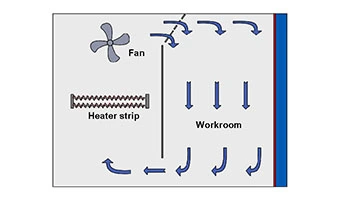

Air circulation

The effective circulation of hot air makes the temperature in the working room uniform


  • PID color LCD touch screen controller; Ethernet connection, PC Link (Option)

  • Temperature Sensor

  • PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃

  • Air Circulation·Observation Window

  • Centrifugal wind fan; Interior lighting, double-layer thermo stability silicone rubber sealing

  • Safety Device

  • Over-temperature Protection; Over-current Protection; Phase Sequence Protection; Earth leakage Protection

  • Exterior Material·Interior Material·Thermal Insulation

  • Steel Plate with protective coating; SUS304 stainless steel; Polyurethane foam (Refractory brick)

Specification



Model

O-100O-225O-500O-800O-1000

Internal Dimension

400*500*500500*600*750700*800*900800*1000*10001000*1000*1000

Overall Dimension

750*880*850800*950*10001100*1100*13001100*1450*14001300*1400*1400

Interior Volume

100L225L500L800L1000L

Temperature Range

Ambient ~+250 ℃ / +400 ℃/+900 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Heating Rate

6℃/min

View Window Size120*150(mm)
