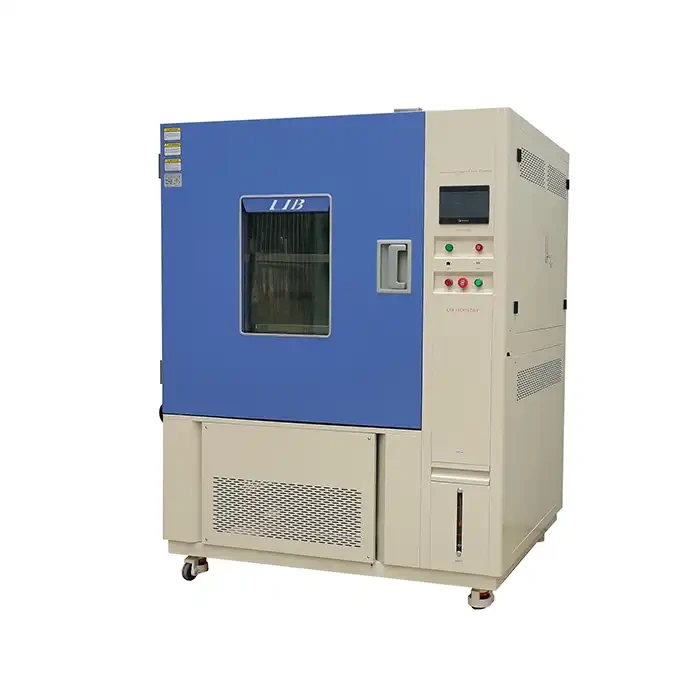

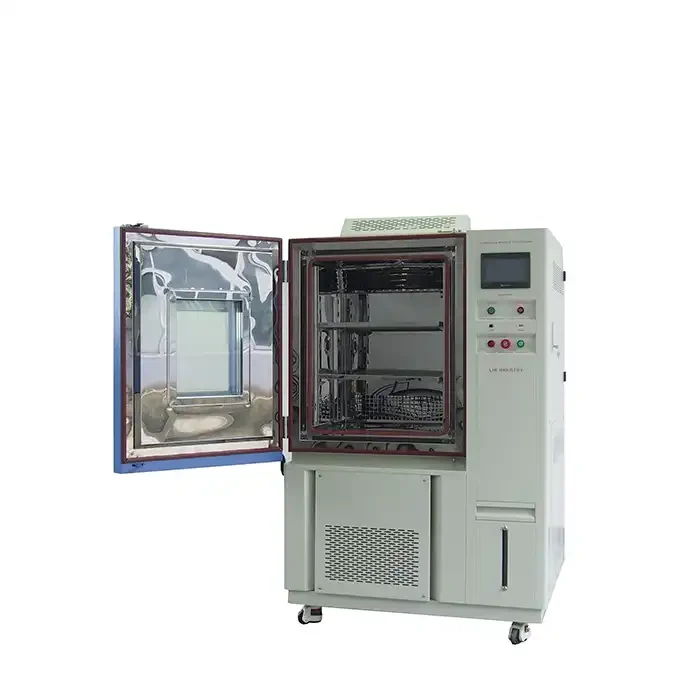

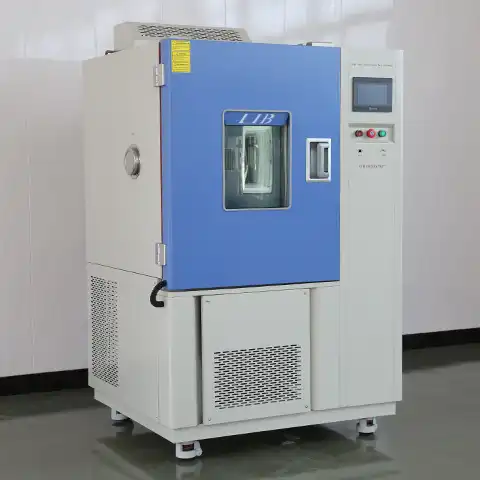

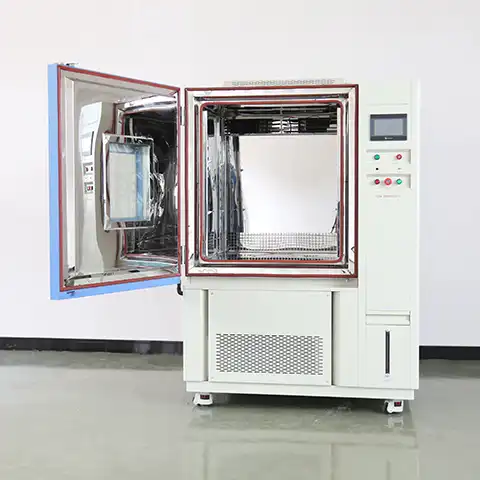

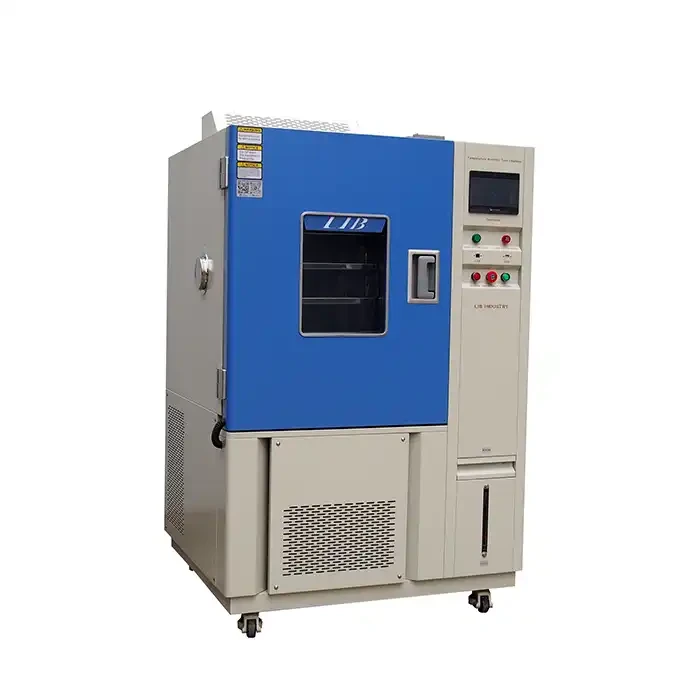

Test Chamber

Our test chamber is suited for environmental testing, accelerated aging tests, and 85/85 tests according to IEC 60068.
Lowest Temperature: -20℃/-40℃/-60℃/-86℃;
Temperature Range:-86℃~+150 ℃;
Humidity Range:20% ~ 98% RH;
Safety options for testing lithium-ion batteries
Built-in lighting for observing the test
Water purification and recirculation system
Product Description

Test Chamber Manufacturer & Supplier

LIB Test chambers can also be used for other purposes such as vibration testing, corrosion testing, altitude testing, and thermal cycling. The versatility and accuracy of test chambers make them essential tools in research and development, quality control, and compliance testing.

Technical Specifications

Model

TH-100

TH-225

TH-500

TH-800

TH-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

800*1000*1000

1000*1000*1000

Overall Dimension (mm)

900*1050*1620

1000*1140*1870

1200*1340*2020

1300*1540*2120

1500*1540*2140

Interior Volume

100L

225L

500L

800L

1000L

Heat load

1000W

Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Heating Element

Nichrome heater

Controller

Programmable color LCD touch screen controller, Ethernet connection

Water supply system

Automatic water supply, Water purification system

Humidifier

External isolation, stainless steel surface evaporation humidifier

Safety Device

Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Thermal Insulation

Polyurethane foam and insulation cotton

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

1 Cable hole with plug; 2 shelves

Product Attributes

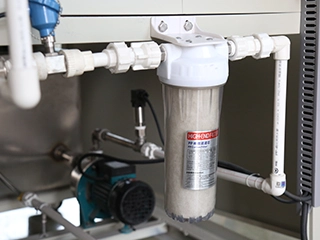

Water Re-circulation

Water purifier: mainly purification from water source to water tank.

Water re-circulation system

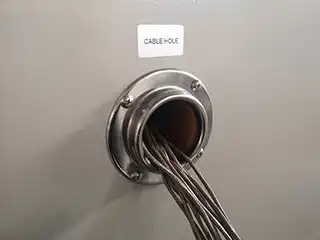

Cable hole

A standard test hole with plugs

The standard inner hole diameter is 50mm/100mm/200mm

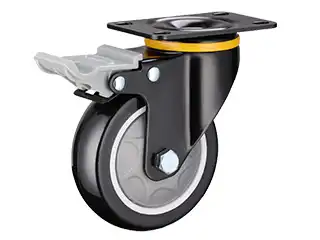

Castors

Install 4 castors for ease moving, and with brakes function.

Caster height adjustable.



Key Features and Advantages

1. Versatility: LIB Industry chambers offer unparalleled versatility, making them ideal for a diverse array of environmental tests. Whether you are conducting temperature-related experiments, humidity assessments, or specialized tests for lithium-ion batteries, our chambers provide the flexibility needed for various testing scenarios.

2. Precision: Experience precise control over temperature and humidity levels with LIB Industry chambers. Our advanced technology ensures accurate and consistent testing conditions, allowing you to conduct experiments with confidence in the reliability of your results. Precision is at the core of our chamber design, guaranteeing trustworthy outcomes for your testing processes.

3. Safety: Safety is a top priority in testing environments, especially when dealing with sensitive components like lithium-ion batteries. LIB Industry Weather Simulation Chambers are equipped with built-in safety options specifically designed for testing lithium-ion batteries. This feature ensures secure and controlled testing, minimizing risks and enhancing the overall safety of your laboratory or testing facility.

4. Observation: Enhance your testing experience with built-in lighting features. LIB Industry chambers come equipped with lighting options that provide enhanced visibility within the chamber. This facilitates easy observation of tests, enabling researchers and technicians to monitor processes with clarity. The built-in lighting is a valuable tool for maintaining visibility and ensuring accurate data collection during testing.

Applications

LIB Industry chambers are versatile solutions that find applications across a wide range of industries, including:

1. Electronics: Ideal for testing electronic components and devices under controlled environmental conditions, ensuring product reliability and performance.

2. Aerospace: Critical for aerospace applications, where precise environmental testing is crucial to ensuring the durability and functionality of components in varying conditions.

3. Automotive: Used in the automotive industry for testing the impact of temperature and humidity on vehicle components, ensuring compliance with industry standards.

4. Research and Development: Crucial for R&D activities, providing scientists and researchers with a controlled environment to conduct experiments, validate hypotheses, and develop innovative technologies.

5. Quality Control: Essential for maintaining high-quality standards in manufacturing processes by subjecting products to rigorous environmental tests, identifying weaknesses, and ensuring compliance with industry regulations.

FAQ

1. Can I customize a Weather Simulation Chamber according to my specific testing needs?

Yes, the LIB Industry offers custom models as required.

2. What safety features are included for testing lithium-ion batteries?

Our chambers come equipped with advanced safety options to ensure secure testing of lithium-ion batteries.
