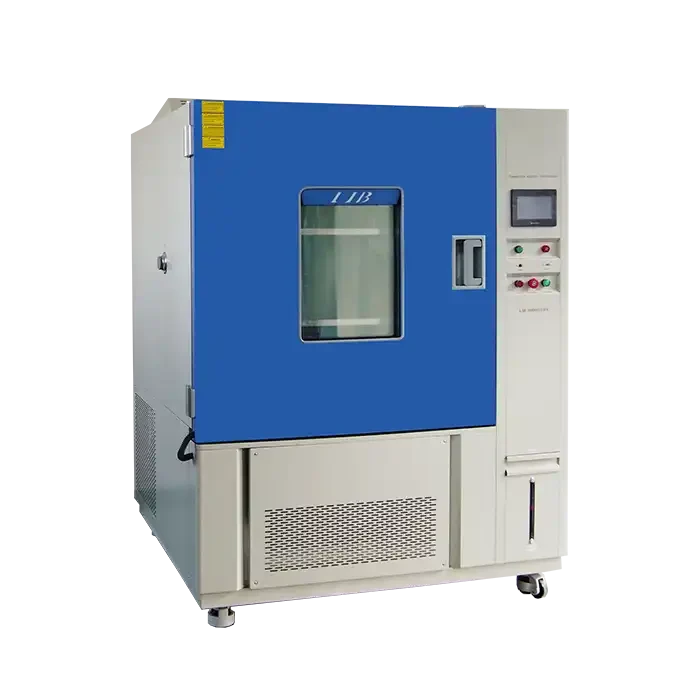

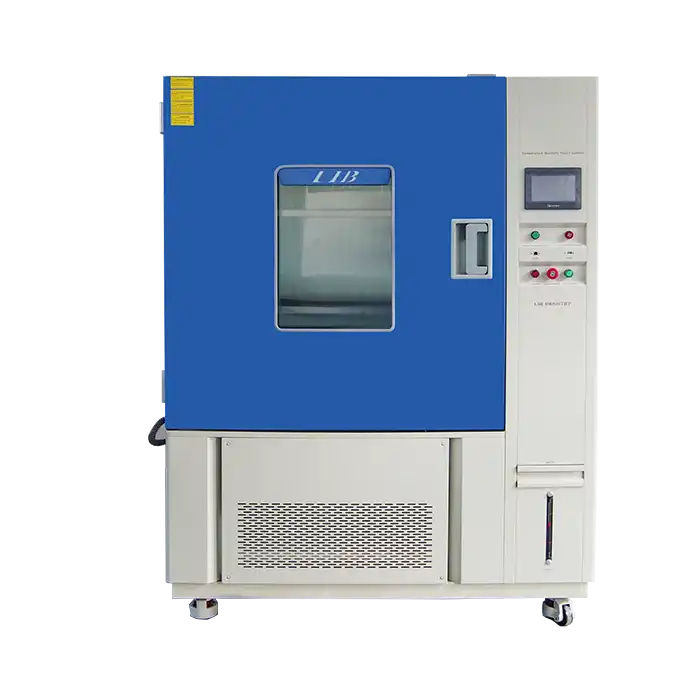

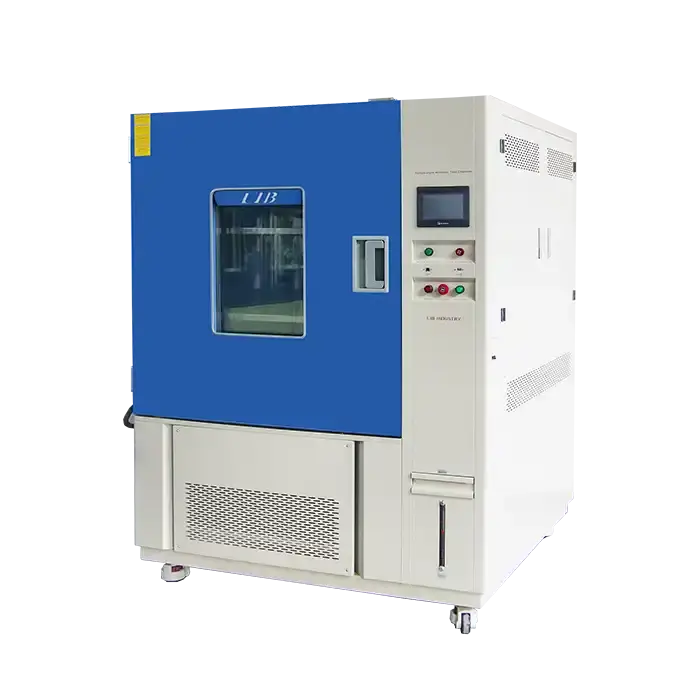

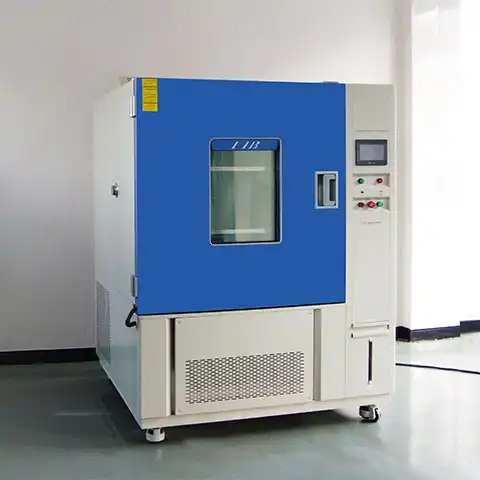

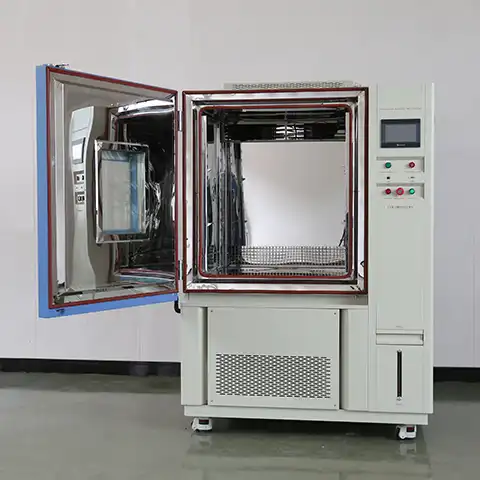

Environmental Thermal Chamber
Model: TH-800
Lowest Temperature: -20℃/-40℃/-60℃/-120℃;
Temperature Range:-120℃～+150 ℃;
Humidity Range:10% ~ 98% RH;
Cooling Type: Air cooled
What is an Environmental Thermal Chamber
LIB Industry, a renowned manufacturer and supplier, takes pride in presenting its state-of-the-art Environmental Thermal Chamber, a cutting-edge solution designed for precision in environmental testing. With a commitment to quality and innovation, LIB Industry stands as a trusted partner for various industries seeking reliable testing equipment.
Product Basic Details
The chamber by LIB Industry is a sophisticated testing apparatus engineered to simulate a wide range of environmental conditions. With a focus on versatility and accuracy, this chamber is equipped to meet the diverse testing needs of industries such as electronics, aerospace, automotive, and more.
Product Standards
Environmental Thermal Chamber adheres to stringent industry standards, ensuring that every unit meets the highest quality benchmarks. With certifications and compliance reports readily available, users can trust the reliability and accuracy of the chamber for their testing requirements.
Technical Specifications
Model | T-100 | T-225 | T-500 | T-800 | T-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 3 ℃ / min | ||||
Heating Rate | 1 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
Air Circulation | Centrifugal wind fan | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Product Details
|
|
|

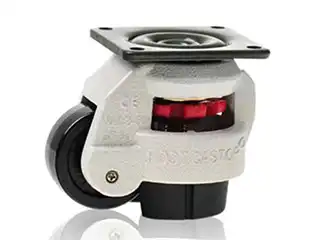

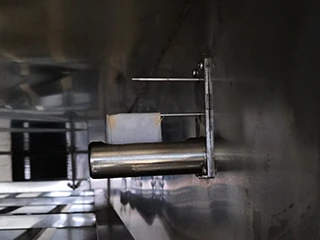

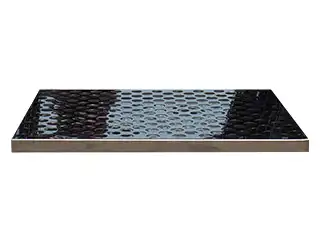

Sample shelf The height of the shelf is adjustable and can be removed Conducive to the air circulation | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable. | Sensor PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees. |
|
|
Features
1. Precise Temperature and Humidity Control
2. User-Friendly Interface
3. Modular Design for Customization
4. Robust Construction for Longevity
5. Rapid Heating and Cooling Rates
6. High Uniformity Across the Chamber
Why Choose Our Chamber
Accuracy: The chamber delivers precise and reliable testing results.
Customization: Modular design allows users to tailor the chamber to their specific needs.
Durability: Built with high-quality materials for long-lasting performance.
Efficiency: Rapid heating and cooling rates streamline the testing process.
Applications
The chamber finds applications in various industries, including:
1. Electronics Testing
2. Aerospace Component Validation
3. Automotive Component Testing
4. Pharmaceutical Stability Testing
5. Environmental Stress Screening
FAQ
1. What is the temperature range of the Environmental Thermal Chamber?
The temperature range is from -70°C to +150°C.
2. Can the chamber be customized for specific testing needs?
Yes, we have customized chamber for special test.
3. How quickly does the chamber heat up and cool down?
The chamber boasts a heating rate of 5°C/minute and a cooling rate of 3°C/minute on average.
