Environmental Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-70℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Access port to power the sample
Standard and Custom Chambers
Temperature, climate, vibration, corrosion, altitude, pressure, or combined test
Environmental Chamber Manufacturer & Supplier
LIB industry supply the right solution and Environmental Chamber for temperature, climate, vibration, corrosion, altitude, pressure or combined test. Our standard and customized models can meet you requirements under different conditions.
Extended choice of options fitted to your testing. You can select your chamber from the door, refrigeration system, controller, language and so much more. Please contact us for further information.
Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details
|
|
|

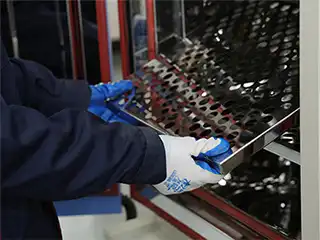

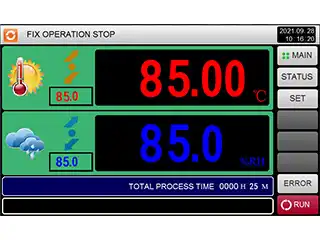

| Explosion-proof system Explosion-proof door and viewing window Water spray against fire Smoke is discharged through the ventilation duct. | Sample shelf SUS304 stainless steel punching sample shelf 2pcs; Standard load of 50KGS for each layer of sample shelf | Controller PID programmable color touch screen controller network connection computer. English/French/Spanish/German/Russian |
|
|
Environmental Chamber Key Features
LIB's Environmental Chamber offer a myriad of functions, including:
●Temperature Control: Precise temperature regulation for consistent and repeatable testing.
●Humidity Control: Accurate humidity adjustments to simulate real-world conditions.
●Customization: Tailored solutions to meet specific testing needs.
●Environmental Chamber for temperature, climate, vibration, corrosion, altitude, pressure or combined test.
Environmental Chamber Applications
LIB's controlled environment chamber cater to a broad spectrum of applications across different industries:
Electronics: Ideal for testing electronic components, ensuring they meet performance standards and can withstand varying environmental conditions.
Pharmaceuticals: Used for drug stability testing by simulating storage conditions, helping ensure the efficacy and safety of pharmaceutical products.
Aerospace: Critical for evaluating materials and components under extreme conditions, simulating the challenges they may face during aerospace applications.
Automotive: Essential for assessing the performance of automotive components,
FAQ
Q1: What industries can benefit from LIB machines?
A1: LIB's chambers cater to a wide range of industries, including electronics, pharmaceuticals, aerospace, and automotive.
Q2: Can LIB provide custom solutions?
A2: Yes, we offer costom models, You can select your chamber from the door, refrigeration system, controller, language and so much more.
Q3: Are certification and testing reports provided with the chambers?
A3: Yes, with CE, ROHs, ISO17025 and more others.
