Humidity Environmental Chamber
Name: Temperature Humditiy Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-20℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Temperature,climate,vibration,corrosion,altitude, pressure or combined test
Type: Benchtop, Floor Stand & Walk In
Humidity Environmental Chamber Manufacturer & Supplier
LIB industry's Humidity Environmental Chamber allows for precise control of humidity levels, typically ranging from 10% to 98% relative humidity (RH), and temperature. This enables researchers and manufacturers to evaluate the performance, durability, and reliability of their products under different humidity conditions.
Humidity chambers are equipped with sensors and controls to monitor and regulate humidity levels, as well as temperature and other environmental factors. They also have features such as adjustable shelves, viewing windows, and data logging capabilities.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details
|
|
|

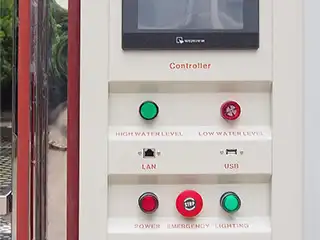

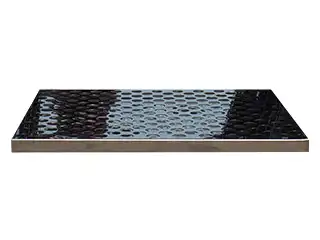

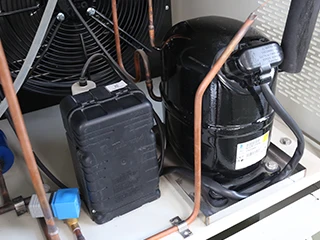

| Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant | Controller Can create120 programs 100 segment. Language can be selected, English/French/Spanish/German/Russian | Sample shelf SUS304 stainless steel punching sample shelf 2pcs; Standard load of 50KGS for each layer of sample shelf |
|
|
Humidity Environmental Chamber Advantages
●Precise and uniform temperature control within ±0.5°C for consistent and repeatable test results.
●Compact, space-saving design with small footprint to fit limited laboratory spaces.
●User-friendly programmable controller allows easy entry of temperature setpoints and automated test profiles.
●Quiet operation (<65 dBA noise level) allows use in noise-sensitive laboratory environments.
●Robust stainless steel interior withstands corrosion and contamination during testing.
●Compliance with international certification standards like CE ensures product quality and safety.
●Data acquisition for recording temperature data and generating test reports for analysis.
●Alarm functions alert test operators in case of cycle failure or temperature deviations.
Humidity Environmental Chamber Applications
LIB's Humidity Environmental Chamber facilitate precise humidity testing for:
Electronics - Environmental stress screening, HAST
Pharmaceuticals - Accelerated stability studies
Food - Shelf-life evaluations, packaging testing
Materials Testing - Coatings, composites, plastics
Corrosion Testing - With added salt spray capabilities
Aerospace - Testing of avionics and components
FAQ
Q: What temperature and humidity range can the Humidity Environmental Chamber achieve?
A: We offer a wide operating envelope from -70°C to +180°C, 10% to 98% RH.
Q: What sizes are available?
A: We offer benchtop and walk-in chambers, with custom sizes on request.
Q: What aftersales services do you provide?
A: Installation, training, maintenance contracts, calibration services.
