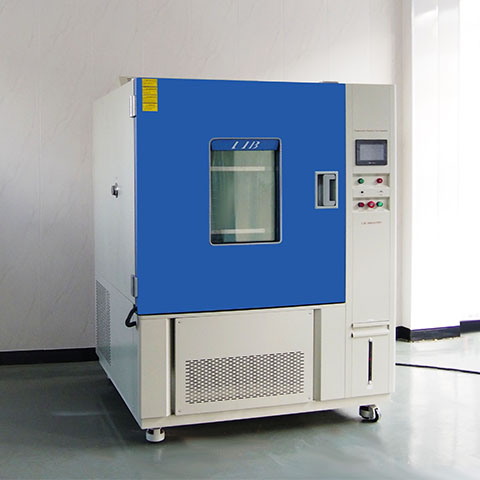

Humidity Climate Chamber
Model: TH-100
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-20℃～+150 ℃;
Cooling Type: Air cooled
Refrigerant: Environmental refrigerant;
Temperature and Humidity condition
Humidity Climate Chamber Manufacturer & Supplier
LIB industry is professional humidity climate chamber manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now.
LIB humidity climate chambers simulate a wide range of temperature and humidity conditions for product testing and evaluation. Inside the chamber, systems for heating, cooling, humidification, and airflow circulation work together to maintain precise temperature and humidity control.
The refrigeration system uses a compressor and evaporator coils to provide cooling for low temperature conditions. Electric heaters allow rapid and accurate heating to achieve high temperatures. A humidification system injects steam to control humidity levels from 10% RH to 98% RH inside the chamber.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||

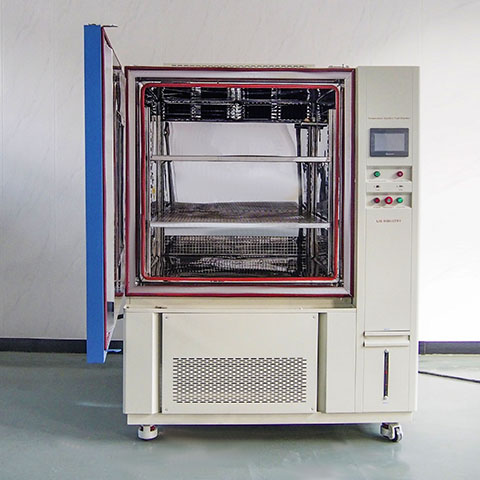

Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details
|
|
|

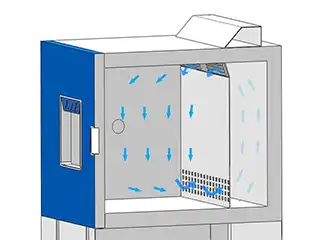

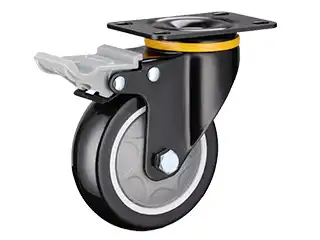

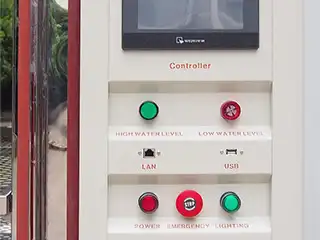

Controller PID programmable color touch screen controller network connection computer. Can create120 programs 100 segment. | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable. | Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom |
|
|
Applications
The humidity climate chamber has wide applications across industries:
●Automotive - Testing electronic auto parts under temperature and humidity stresses. Ensuring reliability under extreme conditions.
●Aerospace - Evaluating avionics under altitude simulation for high/low temperature, humidity and pressure.
●Defense - Testing ammunitions and explosives under environmental conditions.
●Pharmaceuticals - Stability testing of drugs and medicines under ICH guidelines.
●Food - Testing food storage under freezing, chilling and thawing conditions.
●Electronics - Testing functioning of electronic devices under varied humidity levels.
●Packaging - Testing packaging materials under conditions of humidity and condensation.
Features
The cold humidity chamber offers precise temperature and humidity control across a wide range from -40°C to +180°C and 10% to 98% RH.
PID microprocessor control allows excellent temperature stability within ±0.1°C and humidity stability within ±1% RH.
Rapid heating and cooling rates up to 3°C/min and 2°C/min respectively to perform various testing.

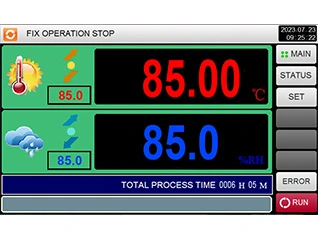

The large touchscreen interface enables easy programming of complex temperature-humidity profiles.
Customized shelving, trays and fixtures cater to diverse test requirements.
After-sales services include warranty, technical support and preventive maintenance to ensure optimal performance.
The combination of wide operating range, precise control, flexible programming, energy efficiency and reliability
Humidity Climate Chamber for Electronics's Environmental Test
A humidity climate chamber for electronics is an environmental test chamber specifically designed to simulate and control humidity levels for testing electronic devices or components. This chamber helps evaluate the performance, reliability, and durability of electronic products under various humidity conditions.
1. Moisture resistance testing: This test evaluates the ability of electronic devices to withstand exposure to moisture or high humidity environments without performance degradation or damage.
2. Accelerated aging: By subjecting the devices to high humidity levels, the chamber can simulate the effects of long-term exposure to moisture, helping manufacturers assess the durability and longevity of their products.
3. Thermal cycling: Combining humidity control with temperature control, the chamber can simulate the effects of thermal cycling on electronic devices.
