Battery Climatic Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-70℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Standard and Custom Chambers
Temperature, climate, vibration, corrosion, altitude, pressure or combined test
Type: Benchtop, Floor Stand & Walk In

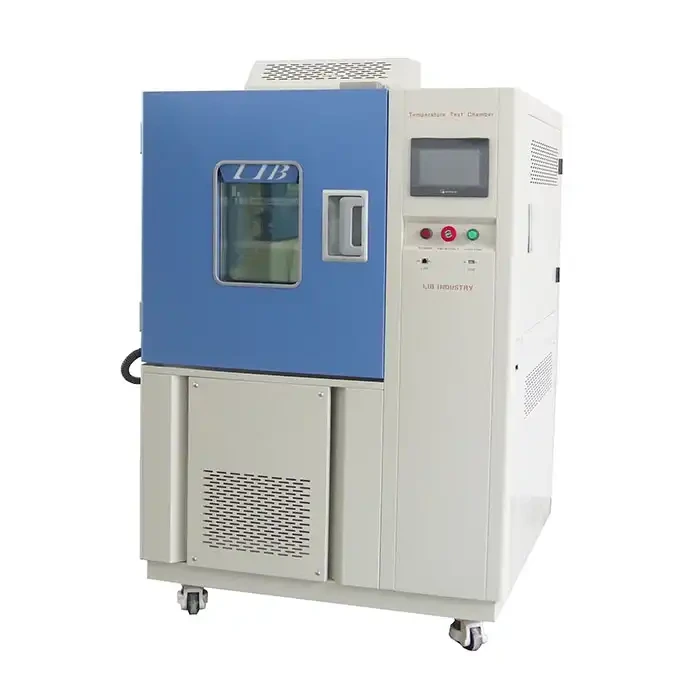

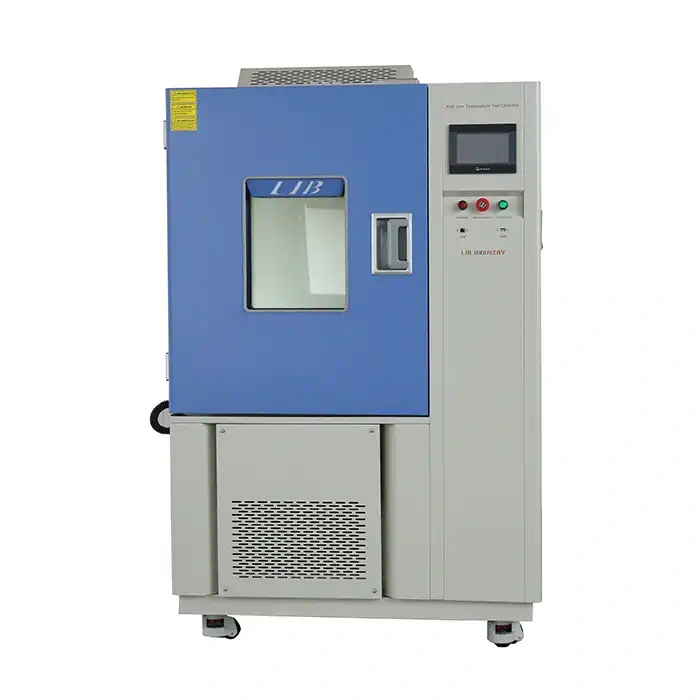

Battery Climatic Chamber Manufacturer & Supplier
Battery Climatic Chamber is a controlled environment chamber designed specifically for testing the performance and durability of batteries under various environmental conditions. These chambers provide precise control over temperature, humidity, pressure, and other environmental factors to simulate real-world conditions and evaluate the battery's performance, safety, and reliability.
Technical Specifications
Model | TR5-100 | TR5-225 | TR5-500 | TR5-800 | TR5-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 5 ℃ / min | ||||
Heating Rate | 5 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
Air Circulation | Centrifugal wind fan | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||

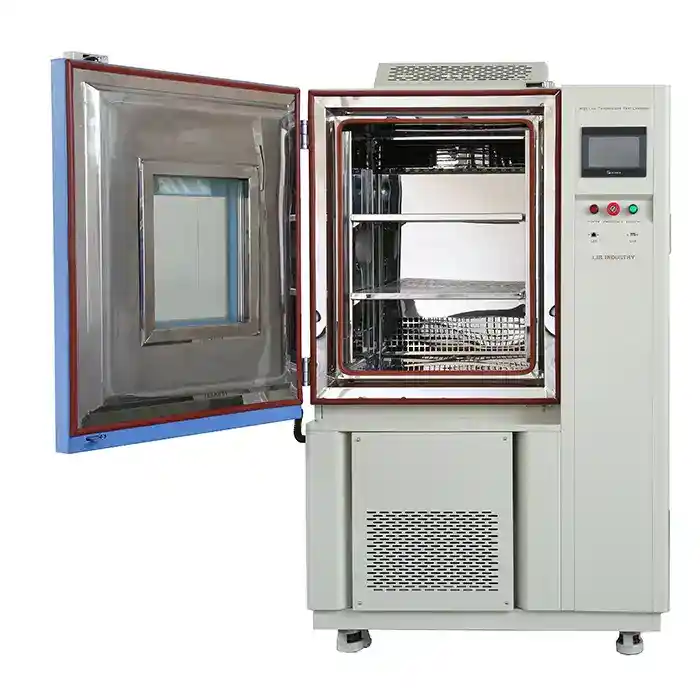

Product Details
|
|
|
Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant | Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom | Explosion-proof system Explosion-proof door and viewing window Equip with smoke detector and buzzer Water spray against fire |
|
|
Functions
1. Battery Performance Testing: The primary function of our chamber is to facilitate precise and controlled testing of battery performance. Whether evaluating discharge characteristics, cycle life, or capacity retention, the chamber provides a stable environment for accurate and reliable results.
2. Environmental Simulation: Simulating real-world environmental conditions is essential for assessing how batteries perform in varying climates. Our chamber replicates temperature and humidity profiles, enabling researchers and engineers to study the effects of environmental factors on battery behavior.
3. Thermal Cycling: Thermal cycling is a critical aspect of battery testing, especially for applications in electric vehicles and renewable energy systems. The chamber's ability to rapidly and accurately cycle through temperature changes allows for in-depth analysis of thermal stress on batteries over time.
4. Humidity Exposure Testing: Understanding how batteries respond to different humidity levels is crucial for ensuring performance in diverse operating conditions. Our chamber provides the capability to expose batteries to varying humidity levels, allowing for comprehensive humidity testing.
Features
●Explosion-proof system
●Explosion-proof door and viewing window
●Equip with smoke detector and buzzer
●Water spray against fire
●Safety Features: Overheat and overpressure protection.
FAQ
Q: Can the chamber accommodate different battery sizes?
A: Yes, our chambers are customizable to accommodate various battery sizes.
Q: What safety features are included?
A: Our chambers include explosion-proof system, overheat and overpressure protection for enhanced safety.
