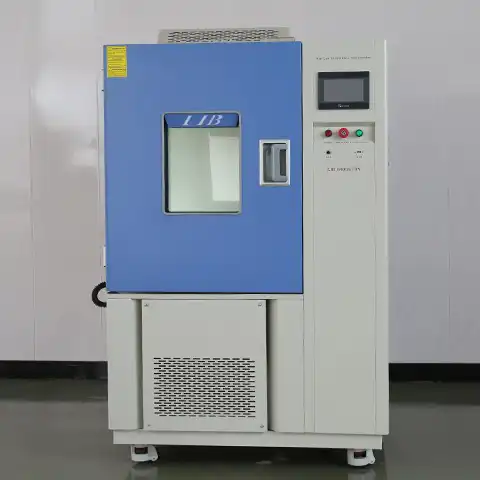

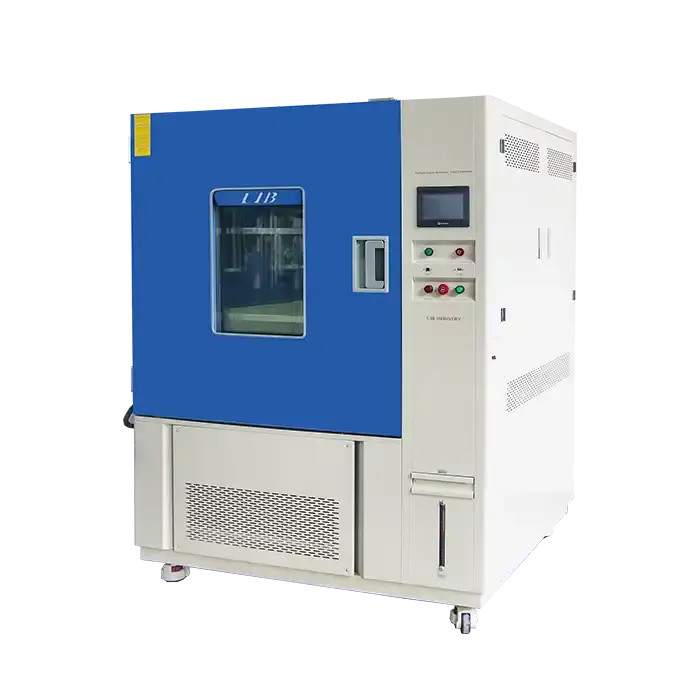

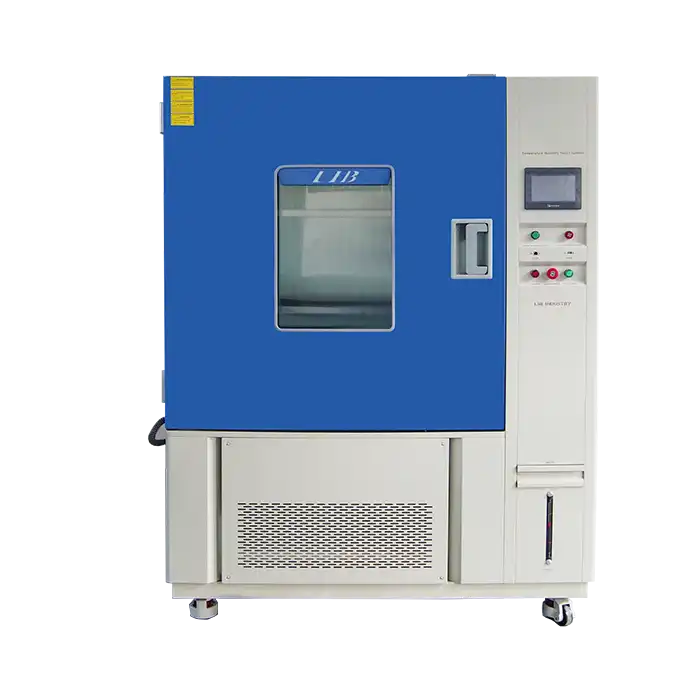

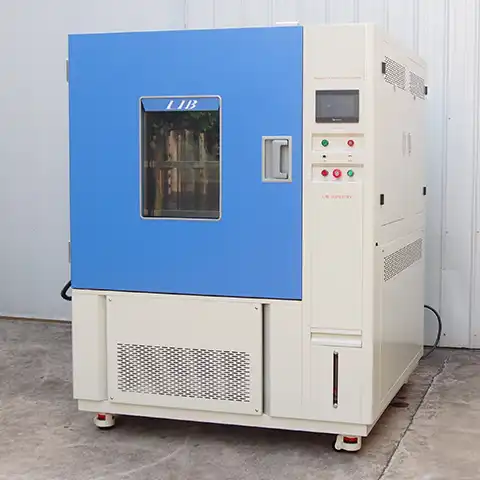

Climatic Test Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-86℃;
Temperature Range:-86℃～+150 ℃;
Humidity Range:10% ~ 98% RH;
Built-in lighting for observing the test
Water purification and recirculation system
Access port to power the sample
Climatic Test Chamber Manufacturer & Supplier
Our climatic test chambers are engineered to provide a controlled environment for testing the impact of temperature and humidity on diverse products. These chambers are equipped with advanced features to meet the rigorous demands of quality assurance, research, and development across industries.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details
|
|
|

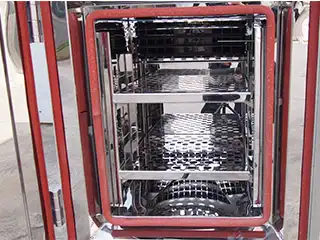

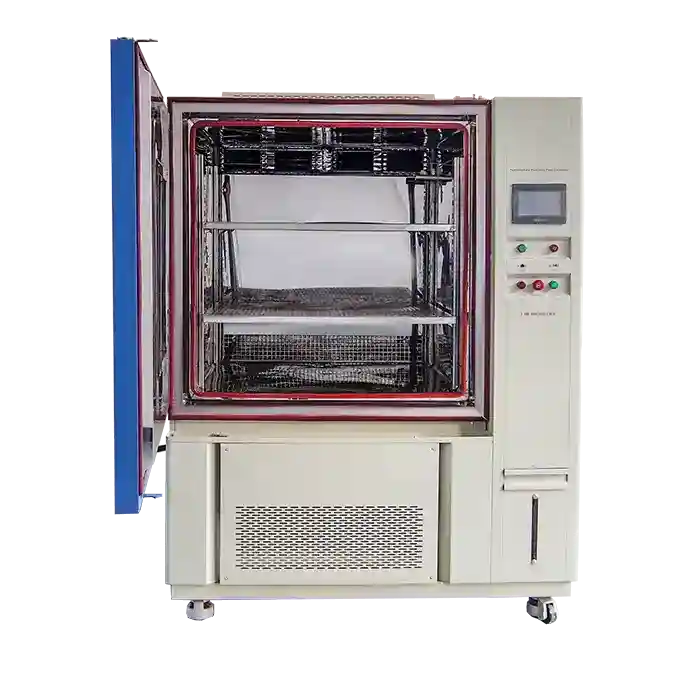

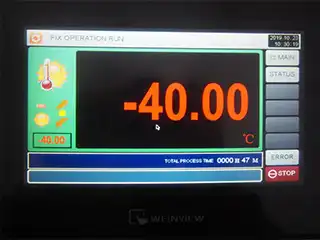

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; | Controller Can create120 programs 100 segment. Language can be selected, English/French/Spanish/German/Russian | Viewing Window Double layer insulating glass 8cm thick, made of tempered glass. Built-in LED light for the work room lighting |
|
|
Key Features
●Versatility: Our climatic simulation chamber comes in various sizes and temperature ranges, providing versatility for different testing requirements.
●Precision: With a temperature range from -86℃ to +150 ℃ and humidity control from 10% to 98% RH, our chambers ensure precise testing conditions.
●Observation: The built-in lighting allows for easy observation of the test, ensuring accurate monitoring.
●Sample Access: The access port facilitates easy power connection for the test sample.
●Efficiency: The water purification and recirculation system enhances efficiency, maintaining the integrity of the testing environment.
●Built-in Lighting: Ensures clear observation during testing.
●Water Purification System: Maintains the purity of water used in the testing process.
●Access Port: Facilitates easy power connection for the sample.
●Temperature and Humidity Control: Precise control for accurate testing.
Advantages
Diverse Applications: Climatic Test Chamber is suitable for a wide range of industries, including electronics, automotive, pharmaceuticals, and more.
1. Reliability: Built to meet and exceed international standards, ensuring reliability in testing results.
2. Customization: Available in various sizes and configurations to meet specific testing needs.
3. Quick Delivery: We prioritize timely delivery to meet the demands of our clients.
4. Secure Packaging: Our products are securely packaged to prevent any damage during transportation.
Applications
LIB Industry's Climatic Test Chamber find applications in:
Electronics testing
Automotive component testing
Pharmaceutical research and development
Aerospace industry testing
Material testing
