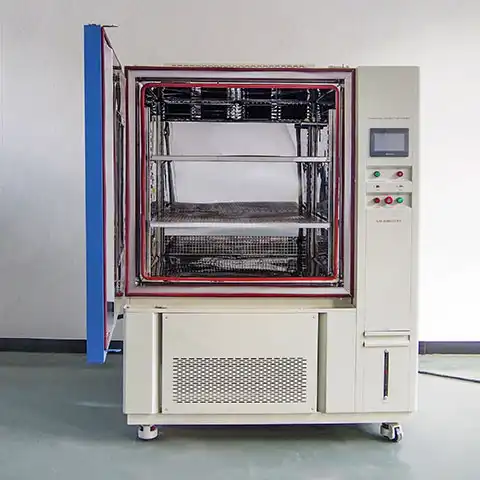

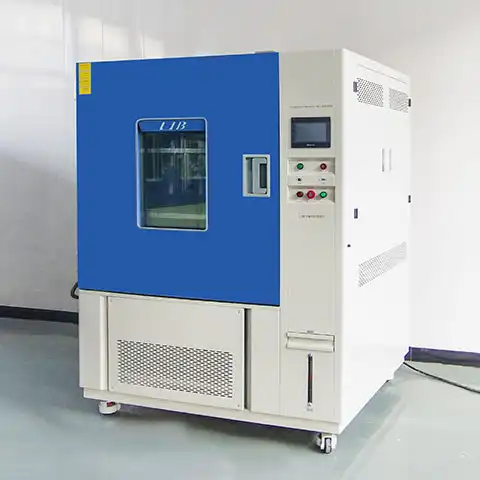

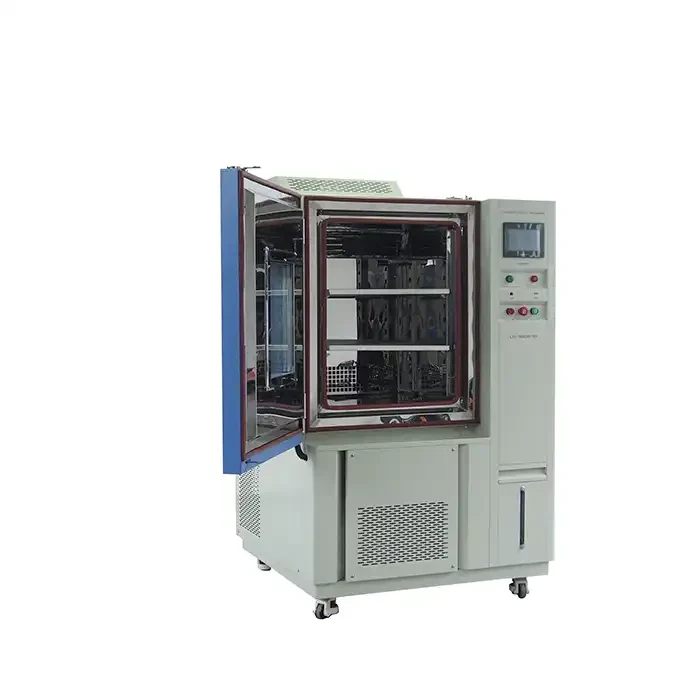

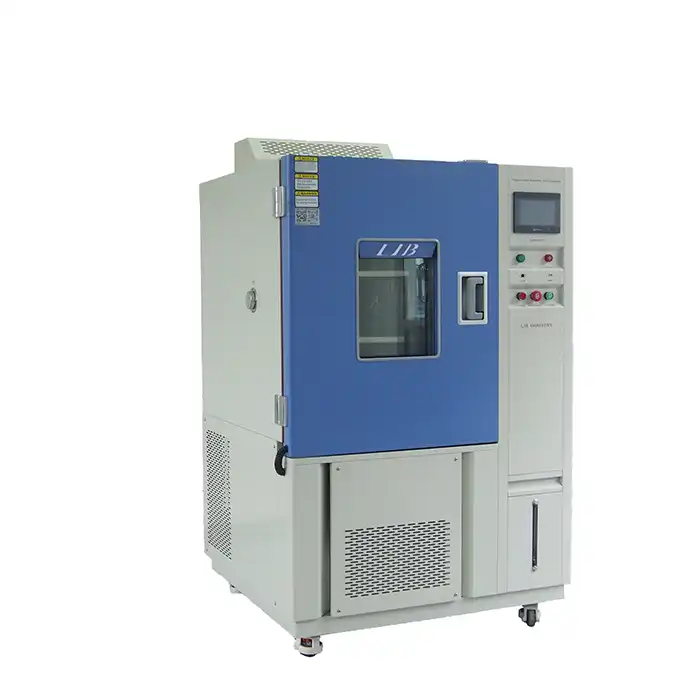

Cold Temperature Test Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-20℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Access port to power the sample
Standard and Custom Chambers
Temperature,climate,vibration,corrosion,altitude, pressure or combined test
Cold Temperature Test Chamber Manufacturer & Supplier
The cold temperature test chamber, by subjecting materials and products to sub-zero temperatures within a controlled setting, the chamber empowers researchers, engineers, and quality control professionals to assess and validate the resilience, functionality, and durability of diverse substances and items when exposed to cold environments. This critical analysis ensures that products meet rigorous standards and regulatory requirements for cold-weather applications. thereby bolstering confidence in their reliability and operational effectiveness.
The temperature range can vary depending on the specific requirements of the test, but it typically ranges from -70°C to -40°C.
Technical Parameters
Model | T-100 | T-225 | T-500 | T-800 | T-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 3 ℃ / min | ||||
Heating Rate | 1 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
Air Circulation | Centrifugal wind fan | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Product Details
|
|
|

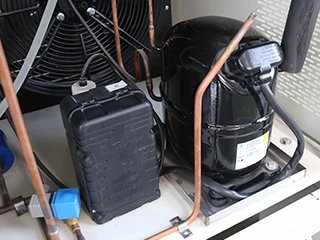

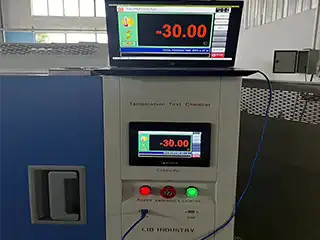

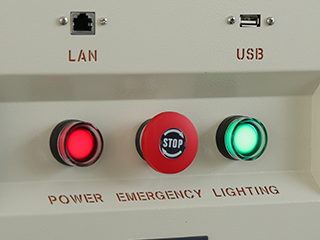

Security Settings Emergency stop button Earth leakage protection, phase sequence protection and multiple security protection | Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
|
|
Key Features
The high low temperature test chamber stands out due to its:
Precise and uniform temperature control for accurate simulation
Robust construction with reliable safety features
Customizable sizes and configurations to accommodate diverse testing needs
User-friendly interface for easy operation and monitoring
Comprehensive technical support and responsive after-sales service
Cold Temperature Test Chamber Function
A cold temperature test chamber is a controlled environment used to simulate and measure the effects of low temperatures on various materials, components, and products. The main function of a cold temperature test chamber is to subject the test specimen to extreme cold temperatures and monitor its performance, durability, and functionality under such conditions.
1. Testing electronic components and devices: Cold temperatures can affect the performance and reliability of electronic components.
2. Testing automotive components: Cold temperatures can impact the performance of various automotive components such as batteries, fuel systems, lubricants, and materials used in the interior and exterior of vehicles.
3. Testing materials and coatings: Cold temperatures can cause materials and coatings to become brittle, shrink, or crack.
4. Testing medical and pharmaceutical products: Cold temperature test chambers are used to evaluate the stability and performance of medical and pharmaceutical products, such as vaccines, drugs, and medical devices, in cold storage or transportation conditions.
5. Testing aerospace components: Cold temperature test chambers are used to assess the performance and reliability of aerospace components, such as avionics systems, fuel systems, and materials used in aircraft construction, in extreme cold conditions experienced at high altitudes.
