Altitude Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-120℃;
Temperature Range:-120℃~+150 ℃;
Humidity Range:10% ~ 98% RH;
Type: Benchtop, Floor Stand & Walk In
Comprehensive Line of Environmental Chambers
50L/80L/100/225L/500/1000/1500L

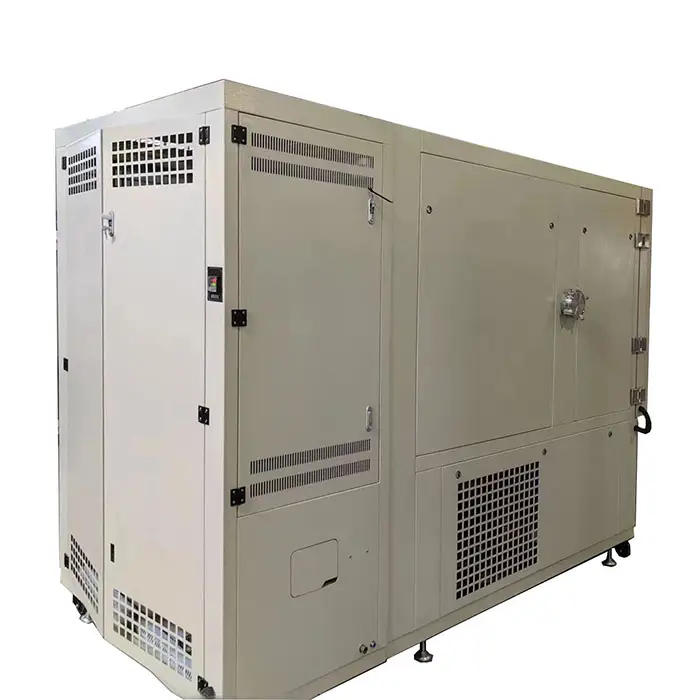

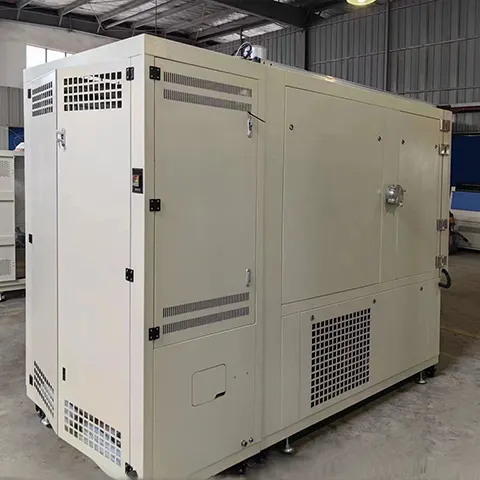

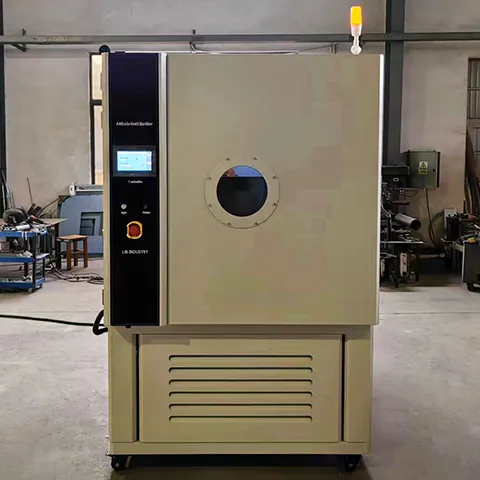

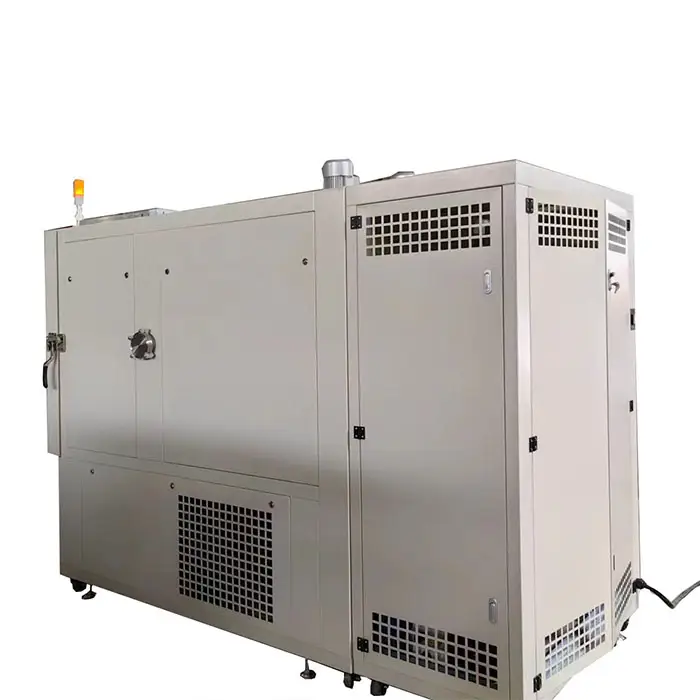

Altitude Chamber Manufacturer & Supplier
Lib industry's altitude chamber represents a environmental simulation system engineered to replicate high-altitude conditions for a wide testing and research purposes. Emulating altitudes reaching up to 30,000 meters (100,000 feet) by exerting meticulous control over pressure, temperature, and humidity parameters.
From compact workout areas and converted bedrooms to expansive gyms and even swimming pools, we specialize in constructing altitude chambers of any size and purpose.
Our chambers are designed for safety, ease of operation, and do not require any specialized building materials. They allow for free entry and exit without affecting the simulated altitude.
Each of our altitude chambers is fully customizable, ensuring that the design, installation, and operation meet the unique needs of every client.
Technical Specifications
Product model | A-1000 |
Internal dimensions | D 1500 W 1000 H 970 mm |
External dimensions | D 2050 W 1300 H 2200 mm |
Temperature range | —40℃ to +150℃ |
Humidity range | 20% ~ 95% (more than 50Kpa can be controlled) |
Temperature fluctuation | ≤ ±0.5℃ |
Temperature deviation | ≤ ±2.0℃ |
Temperature uniformity | ≤ 2.0℃ (under normal pressure and no load) |
Heating rate | 3℃/min |
Cooling speed | 2℃/min |
Pressure range | Atmospheric pressure to 0.5kPa |
Pressure deviation | ± 2Kpa |
Depressurization time | Atmospheric pressure to 0.5k ≤30min |
Pressure enclosure | Manganese steel, surface spray treatment |
Other outer wall materials | Double-sided galvanized steel plate, surface spray treatment |
Inner wall material | SUS304 stainless steel plate |
Vacuum system | Vacuum pump, air pumping regulating valve, inflation regulating valve |
Product Details

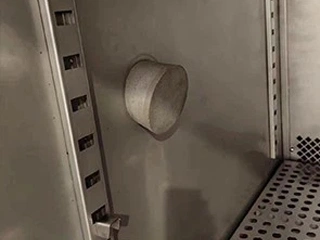

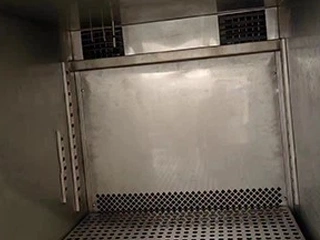

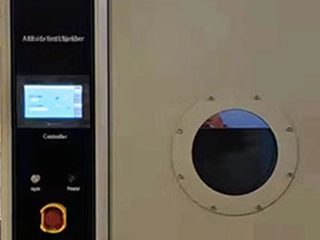

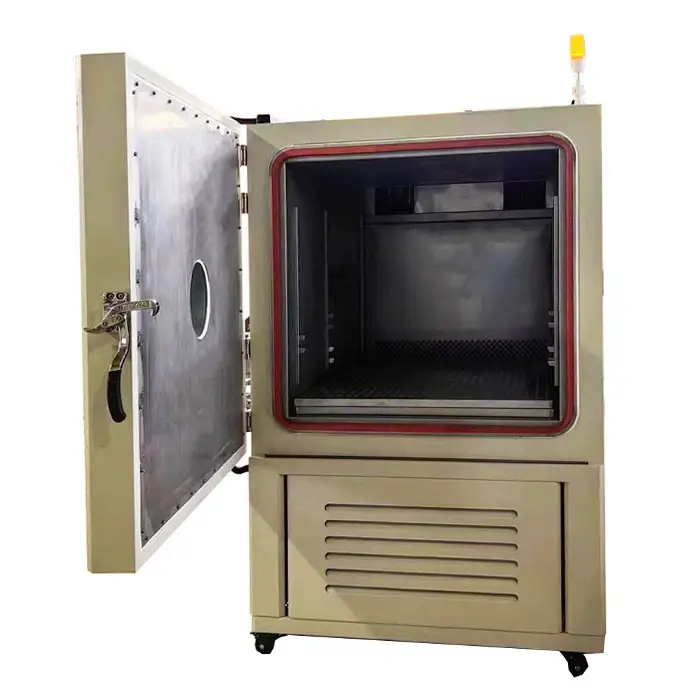

Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm | Workroom The internal material is 304 stainless steel Rust-proof to high and low temperature and moisture corrosion; | Viewing Window Explosion-proof glass Small round window design, can withstand greater pressure |
Key Features
1. Precision Altitude Simulation: The chamber offers unparalleled precision in simulating extreme altitudes
2. Pressure Control: With its advanced pressure control mechanisms, the chamber can replicate the reduced atmospheric pressure characteristic of high-altitude regions, allowing for comprehensive testing of the effects of low pressure on materials
3. Temperature Regulation: Ensuring that the simulated high-altitude conditions align with the temperatureconditions.
4. Humidity Management: By effectively managing humidity levels within the enclosure, the altitude chamber facilitates investigations into the impact of low-humidity environments on materials.
5. Versatile Testing Capabilities: The chamber accommodates a wide range of testing and research applications, including aerospace and aviation research.
6. Safety and Reliability: Designed with a focus on safety and reliability, the chamber incorporates robust construction, precise monitoring systems, and safety controls
Applications
Altitude Chambers are widely used in the aerospace industry for:
●Testing Aircraft Systems: The chambers are extensively utilized for testing various aircraft systems and components under simulated high-altitude conditions.
●Pilot and Aircrew Training: The chambers are extensively used for training pilots and aircrew members to handle emergency situations that may arise during high-altitude flights.
●Aviation Equipment Testing: Altitude Chamber is employed for testing and validating various aviation equipment and safety gear used in high-altitude conditions. This includes evaluating the performance of rescue gear, such as parachutes and emergency escape systems, as well as testing the effectiveness of protective suits and equipment under simulated high-altitude environments.
Quality and Safety
Our manufacturing facility is ISO 9001certified for quality and environmental management. Humidity chambers comply with international safety standards such as CE, CSA, ISO17025 etc. They meet EMC regulations for electromagnetic compatibility.
