Weatherometer
Name:xenon test chamber
Model:XL-S-750
Specimen Capacity:42pcs
Irradiance Range:35~150 W/㎡
Bandwidth Measurement:300nm~400nm (340nm or 420nm)
Chamber Temperature Range:Ambient ～ 100 ℃ ±2℃
Weatherometer Manufacturer & Supplier
The LIB industry's Weatherometer is equipped with advanced control systems that offer exceptional precision in simulating various environmental stressors. It allows for precise control of parameters like temperature, humidity, and sunlight radiation, ensuring accurate and consistent testing conditions. This level of control precision enables manufacturers to evaluate materials with high accuracy and reliability.
The weatherometers should have a xenon arc, air/water cooled, and rotating rack type at their own axis/static type, Xenon arc lamp as light source having an emission spectrum
close to solar radiation. The lamp/s with total power of 4500 Watt or better, to provide the required radiation levels will be preferred.
We provide standard and cusomized weatherometers to meet different test.
Technial Parameters
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Humidification System | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Product Details
|
|
|

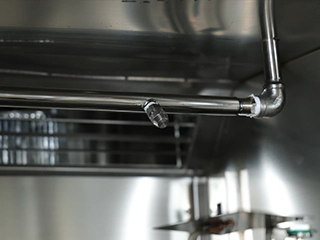

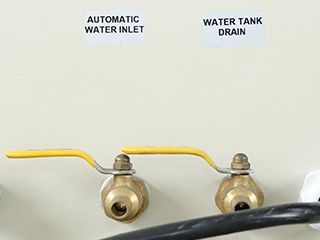

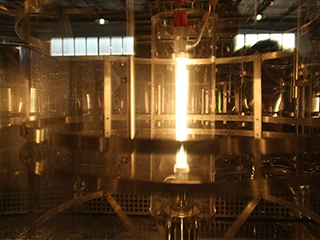

Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing | Water Spray Water spray pipe is equipped with nozzles Simulates the outdoor moisture to the material | Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion |
|
|
Features
Precision Control: Ensures consistent and repeatable testing conditions
Versatile Testing: Accommodates various material types and shapes
Data Logging: Allows comprehensive recording of test parameters
Longevity: Built with durable materials for extended use
Weatherometer Application
●Automotive industry: Weatherometer is used to test the durability and colorfastness of automotive paints, interior materials, and exterior components.
●Aerospace industry: In the aerospace industry, xenon weathering chambers are used to simulate the harsh conditions that aircraft components may encounter during their operational lifespan.
●Building materials: Xenon weathering chambers are used to test the durability and color stability of various building materials, such as roofing materials, exterior cladding, and window frames.
●Textile industry: Test the colorfastness and durability of textiles, such as clothing, upholstery, and outdoor fabrics.
●Paint and coatings industry: Xenon weathering chambers are widely used in the paint and coatings industry to evaluate the long-term performance and color stability of various coatings, including architectural paints, industrial coatings, and automotive finishes.
FAQ
Q: How often should the lamp be replaced?
A: The usable time is 1200 hours. After more than 1200 hours of exposure, the lamp needs to be replaced with a new one.
Q: Can this weatherometer simulate specific weather conditions?
A: Yes, it can replicate various environmental factors like sunlight, humidity, water spray and temperature fluctuations.
