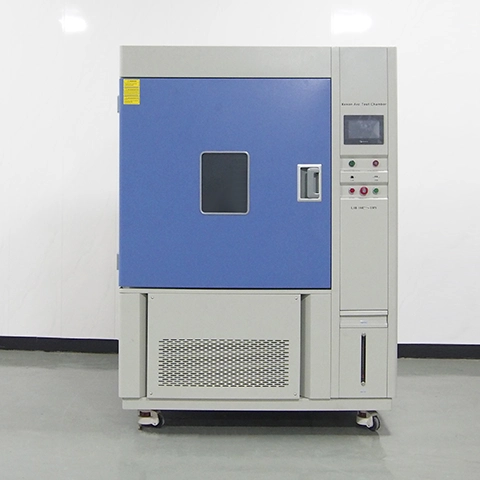

Xenon Arc Tester
Irradiance Range:35~150 W/㎡
Bandwidth Measurement:300nm~400nm (340nm or 420nm)
Radiometer: UV Radiometer, Tolerance: ±5%
Cooling System: Mechanical compression refrigeration system
Exterior Material: Steel plate with protective coating
Interior Material:SUS304 stainless steel

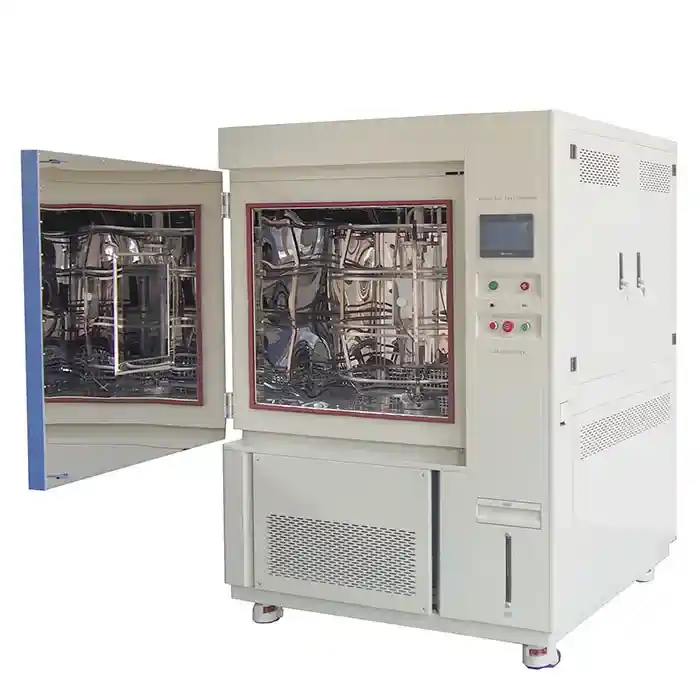

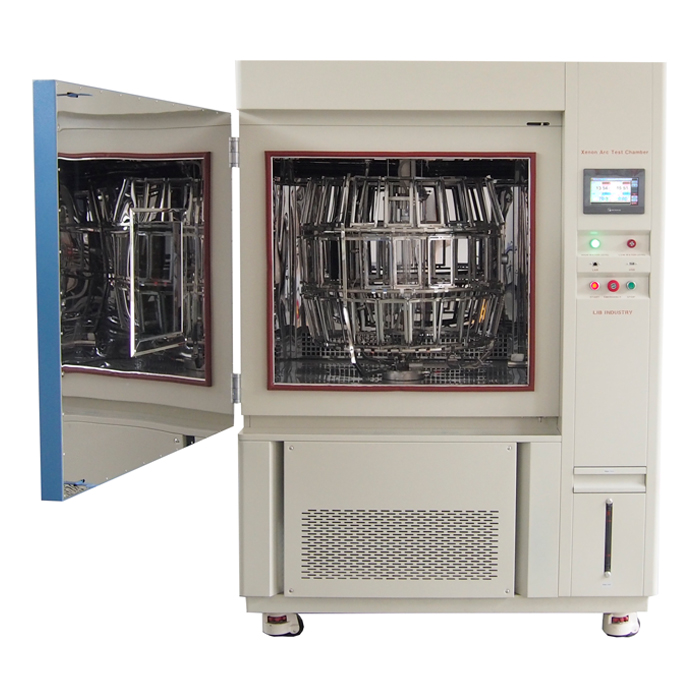

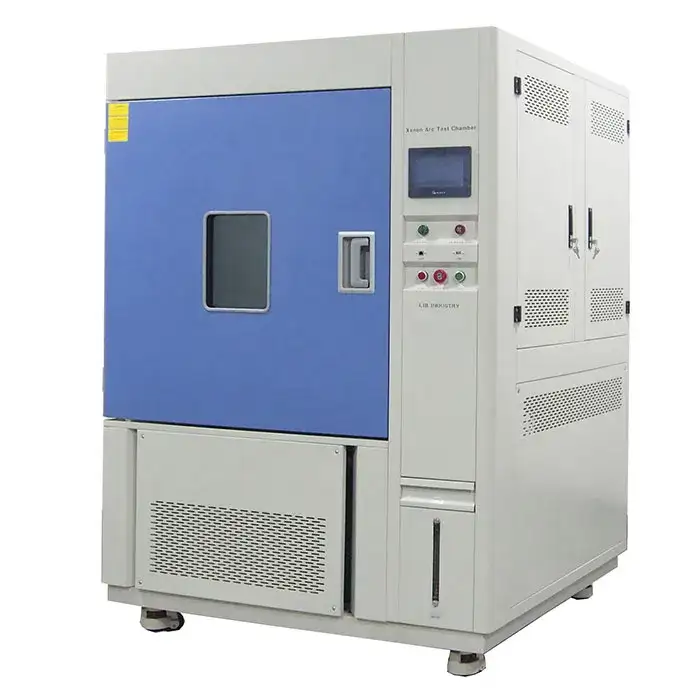

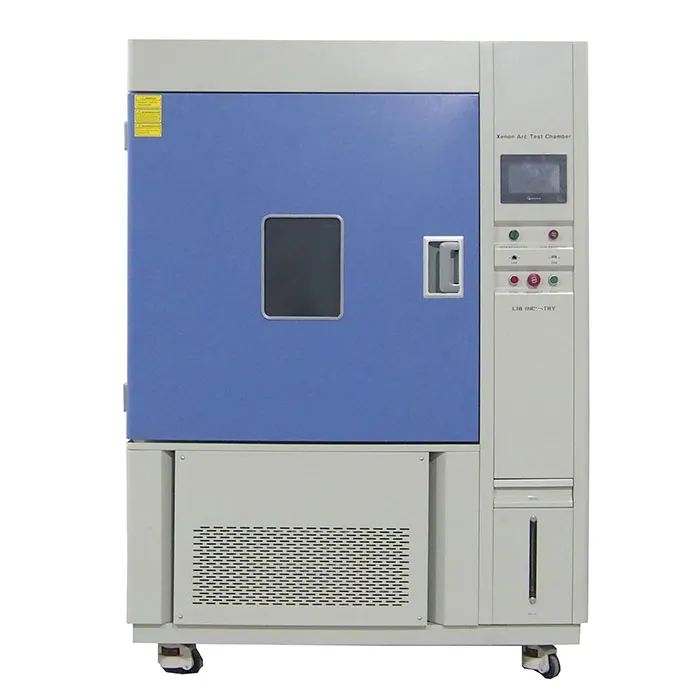

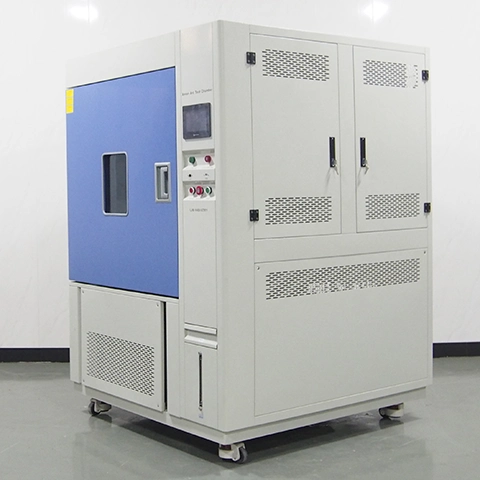

Xenon Arc Tester Manufacturer & Supplier
LIB industry is a leading manufacturer and supplier of xenon arc tester, It is designed to accurately simulate and assess the effects of sunlight exposure, including UV radiation, on various materials and products.
These xenon testers are essential for assessing the impact of sunlight radiation, temperature, and moisture on the aging and degradation of materials. We offer standard models as well as customized solutions to meet specific testing requirements.
Technical Specifications
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Humidification System | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Product Details
|
|
|

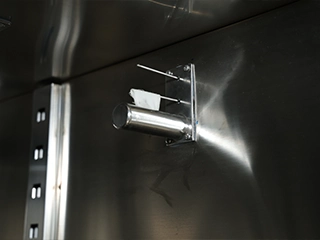

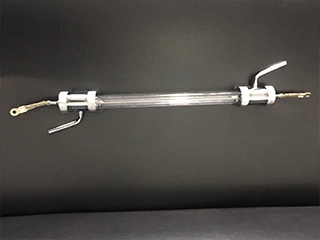

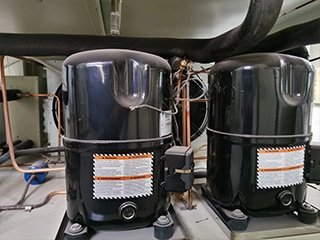

| Sensor PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees. | Irradiation Source Irradiation Source with 1 piece of 4500 W water-cooled xenon lamp Various filters available for choose | Cooling system Mechanical compression refrigeration system French TECUMSEH compressor |
|
|
Xenon Arc Tester Features
Our xenon testers offer precise control of irradiance, temperature, and humidity for accurate simulation of sunlight exposure, customizable exposure areas to accommodate different sample sizes, user-friendly interface for easy operation and monitoring, compliance with international standards for reliable testing, and comprehensive testing capabilities for evaluating material durability.
Application Fields
Our Xenon Arc Tester find applications across industries such as automotive, aerospace, coatings, plastics, textiles, and outdoor equipment. They are used to test a wide range of products, including automotive components, exterior coatings, plastic materials, textile fabrics, and outdoor furniture.
FAQ
Q: Can the xenon arc tester accommodate specific sunlight exposure simulation requirements?
A: Yes, our testers can be customized to simulate specific sunlight exposure conditions, including spectrum, temperature, and humidity, to meet specific testing standards.
Q: What is the lead time for ordering testers?
A: 2 weeks, we provide door to door service.
