Accelerated Weathering Chamber
Irradiance Range:35~150 W/㎡
Bandwidth Measurement:300nm~400nm (340nm or 420nm)
Water Spray Cycle:1~9999H59M (Adjustable)
Automatic water supply
Radiometer:UV Radiometer, Tolerance: ±5%
Cooling System:Mechanical compression refrigeration system
Accelerated Weathering Chamber Manufacturer & Supplier
LIB industry Accelerated Weathering Chamber, our xenon accelerated weathering test chambers offer customization options to meet a wide range of testing requirements. Whether it's specific light sources, exposure areas, or additional features, we provide tailored solutions to ensure accurate simulation of weathering conditions for different materials and applications.
Technical Specifications
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Humidification System | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Product Details
|
|
|

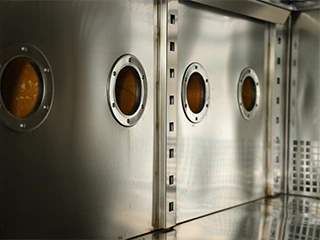

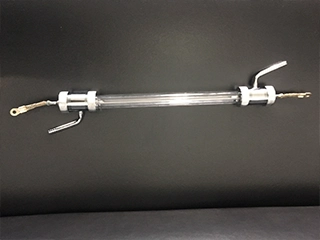

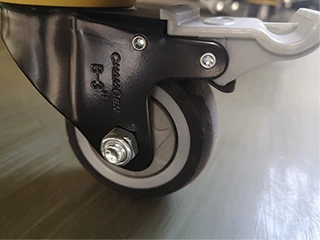

| Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm | Irradiation Source Irradiation Source with 1 piece of 4500 W water-cooled xenon lamp Various filters available for choose | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable |
|
|
Accelerated Weathering Chamber Features
Our Accelerated Weathering Chamber offer customization options to meet a wide range of testing requirements. Whether it's specific light sources, exposure areas, or additional features, we provide tailored solutions to ensure accurate simulation of weathering conditions for different materials and applications.
●Accuracy:
Our chambers accurately replicate a variety of weathering conditions, including UV radiation, temperature, and humidity. This ensures reliable and consistent results, allowing for accurate assessment of material durability, colorfastness, and performance under accelerated aging.
●Ease of Use:
Our products feature user-friendly interfaces and intuitive controls, making them easy to operate.
●Durability:
Our chambers are designed for long-term usage and durability. The sturdy design ensures reliable performance even in demanding testing environments.
Application
1. Automotive industry: Xenon weathering chambers are used to test the durability and colorfastness of automotive paints, interior materials, and exterior components.
2. Aerospace industry: In the aerospace industry, xenon weathering chambers are used to simulate the harsh conditions that aircraft components may encounter during their operational lifespan.
3. Building materials: Xenon weathering chambers are used to test the durability and color stability of various building materials, such as roofing materials, exterior cladding, and window frames.
4.Textile industry: Test the colorfastness and durability of textiles, such as clothing, upholstery, and outdoor fabrics.
5. Paint and coatings industry: Xenon weathering chambers are widely used in the paint and coatings industry to evaluate the long-term performance and color stability of various coatings, including architectural paints, industrial coatings, and automotive finishes.
FAQ
Q: What warranty does the Accelerated Weathering Chamber come with?
A: 36 months long warranty and long life service.
Q: What parameters can this xenon chamber control??
A: This xenon lamp test chamber can control irridiance, temperature, humidity and water spray. It is a reliable accelerated aging equipment.
