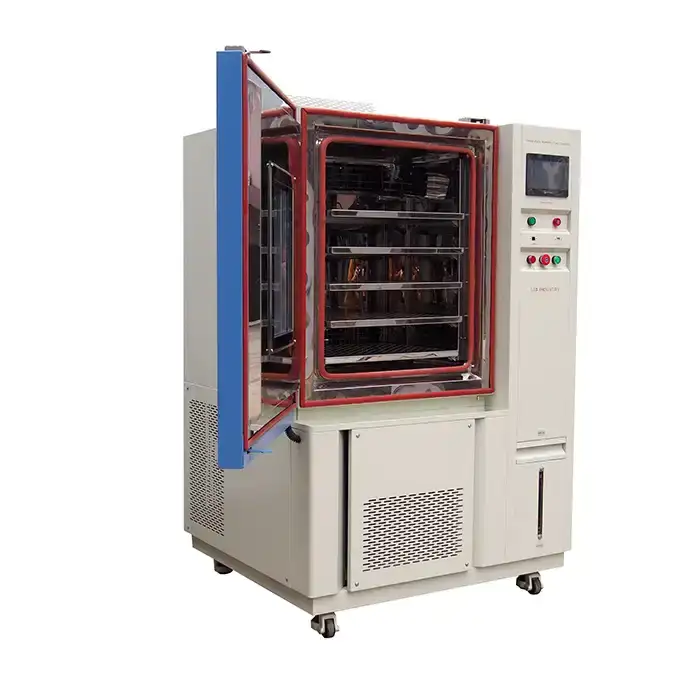

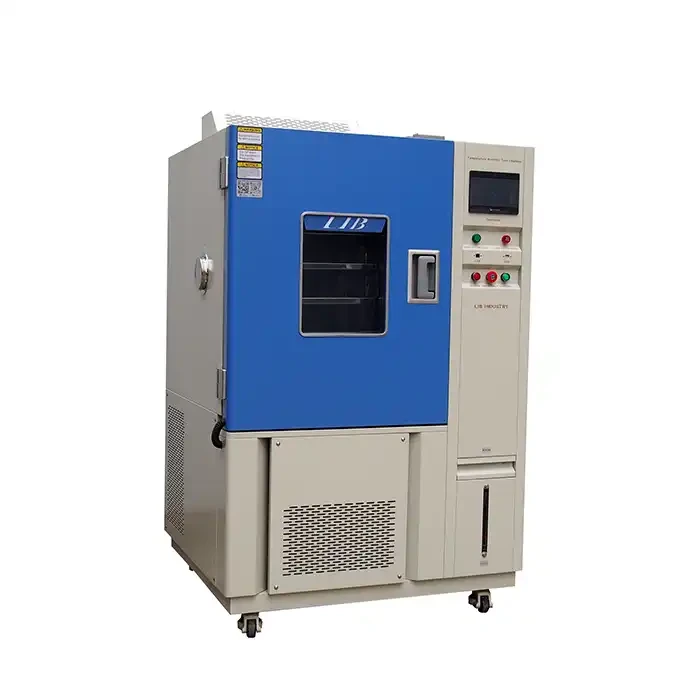

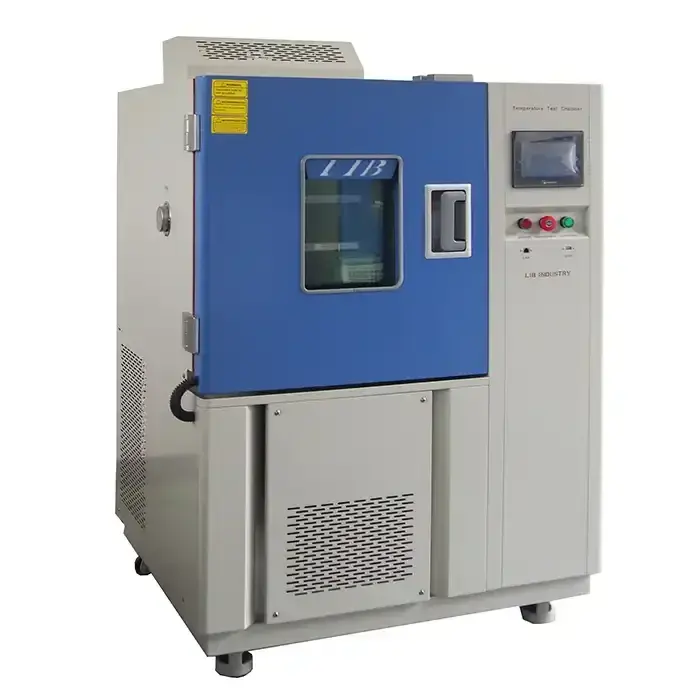

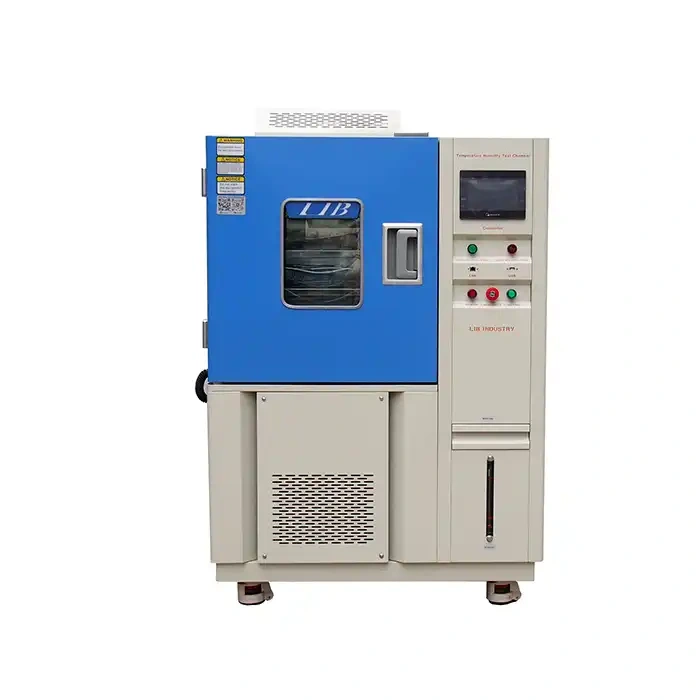

temperature cycle test chamber
Model:TR5-500
Lowest Temperature:-20℃/-40℃/-60℃/-70℃;
Cooling Rate:10 ℃ / min （average）
Heating Rate:10 ℃ / min （average)
The temperature ramp rate is controllable at 5℃ / 10℃ / 15℃ per minute.
Volume:100L, 225L, 500L, 800, 1000L, 2000L, 3000L
LIB Industry's Ttemperature cycle test chamber
LIB Industry temperature cycle chamber is used to simulate extreme temperature conditions for testing the performance and reliability of various products. It is commonly used in industries such as aerospace, automotive, electronics, and pharmaceutical.
What is temperature cycle test chamber?
The temperature cycle test chamber, also known as a Thermal Cycling Chamber, is a specialized equipment designed for rigorous temperature and humidity testing. Equipped with a powerful compressor, it can rapidly alter temperatures at impressive rates, ranging from 5 to 25 °C per minute or even higher.
This chamber is particularly useful for applications requiring swift, uniform, and consistent temperature changes. It enables operators to assess the resilience of test subjects to extreme temperature variations and cyclical exposures. Similar to thermal shock testing, this process uncovers fatigue failures that conventional temperature and humidity chambers might not detect.
Technical Specifications
Model | TR5-500 |
Internal Dimension (mm) | 700*800*900 |
Overall Dimension (mm) | 1200*1340*2020 |
Interior Volume | 500L |
Heat load | 1000W |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Cooling Rate | 5 ℃ / min |
Heating Rate | 5 ℃ / min |
Cooling system | Mechanical compression refrigeration system |
Refrigerating unit | French TECUMSEH compressor |
Heating Element | Nichrome heater |
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Air Circulation | Centrifugal wind fan |
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves |
Product Details
|
|
|
| Explosion-proof system Explosion-proof door and viewing window Equip with smoke detector and buzzer Water spray against fire | Cable hole A standard test hole with plugs 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
Key Features
The temperature cycle test chamber is equipped with the following key functions:
1. Temperature Cycling: Mimics rapid temperature changes for assessing product performance under extreme conditions.
2. Humidity Control: Humdity system as option
3. Data Logging: Captures and records test data for comprehensive analysis and reporting.
4. Safety Features: Overheat protection, door alarms, and emergency shutdown options ensure user safety and equipment protection.
5. Remote Monitoring: Allows users to monitor tests remotely for added convenience.
Applications
The temperature cycle test chamber finds applications in:
●Electronics Testing
●Aerospace Research
●Pharmaceutical Stability Studies
●Automotive Component Testing
Custom Models
LIB Industry offers standard and customized models, allowing clients to customize chambers based on unique specifications. Tell us about your requirements, let us help you.
