TH-225 Temperature Humidity Climate Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-20℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Comprehensive Line of Environmental Chambers
50L/80L/100/225L/500/1000/1500L
Ranging in size from small benchtop units to large walk-in chambers.

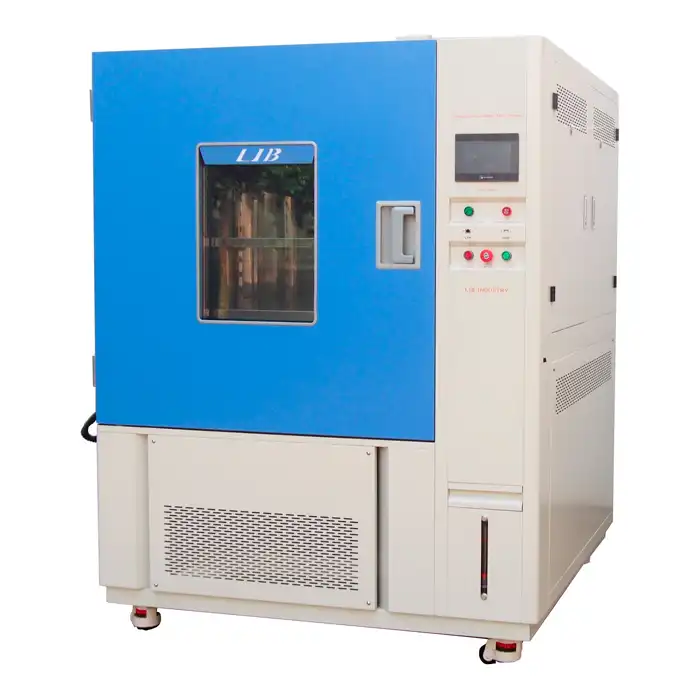

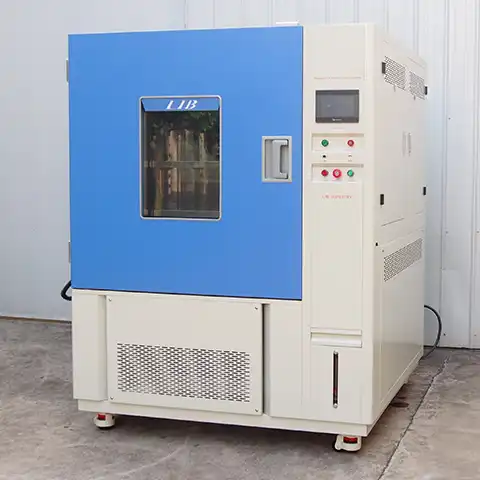

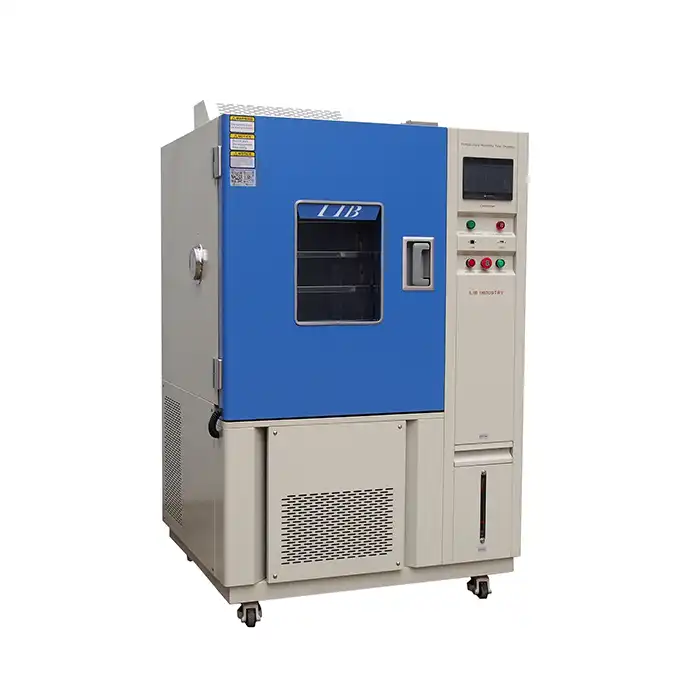

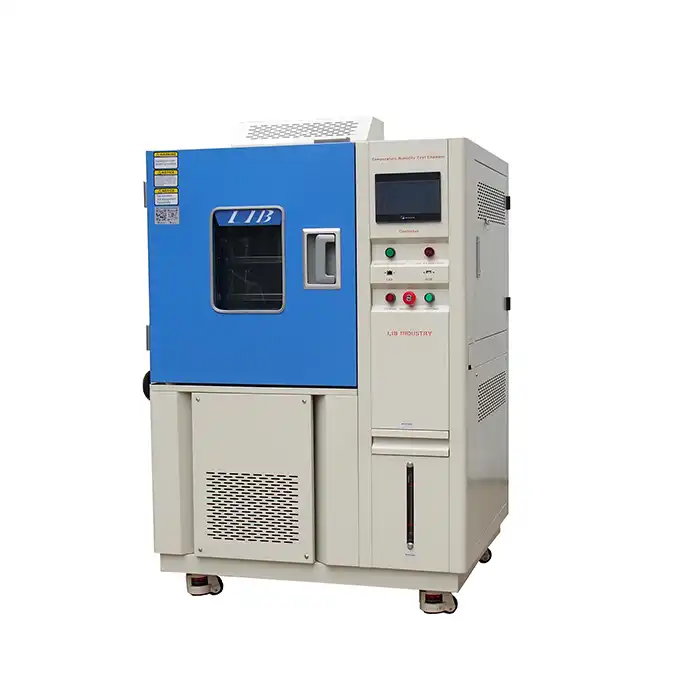

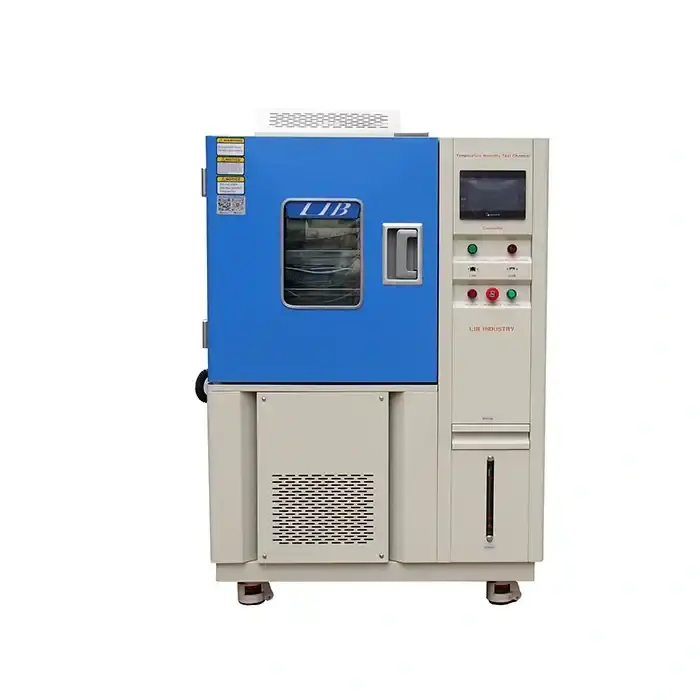

TH-225 Temperature Humidity Climate Chamber Manufacturer & Supplier
The TH-225 Temperature Humidity Climate Chamber simulates a wide range of environmental conditions. The temperature range of the test chamber can vary depending on the model, but it is typically capable of reaching temperatures as low as -70°C and as high as 180°C. The humidity range achieves humidity levels from 10% to 98% relative humidity.
Temperature range, humidity range, volume, temperature change speed, and other special configurations are necessary conditions for testing. Please tell us your needs and let us help you to find a suitable controlled RH 100% Laboratory Climate Chamber.
Technical Parameters
Model | TH-225 |
Internal Dimension (mm) | 500*600*750 |
Overall Dimension (mm) | 1000*1140*1870 |
Interior Volume | 225L |
Heat load | 1000W |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Humidity Range | 20% ~ 98% RH |
Humidity Deviation | ± 2.5% RH |
Cooling Rate | 1 ℃ / min |
Heating Rate | 3 ℃ / min |
Cooling system | Mechanical compression refrigeration system |
Refrigerating unit | French TECUMSEH compressor |
Heating Element | Nichrome heater |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Water supply system | Automatic water supply, Water purification system |
Humidifier | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |

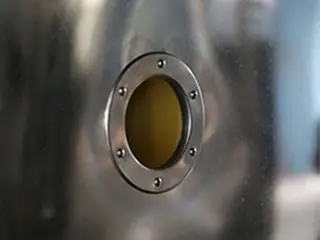

Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |

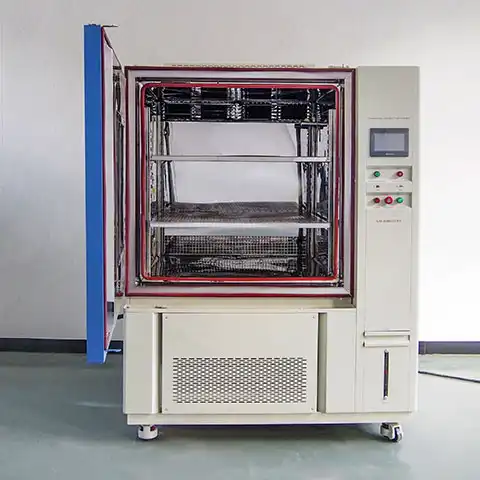

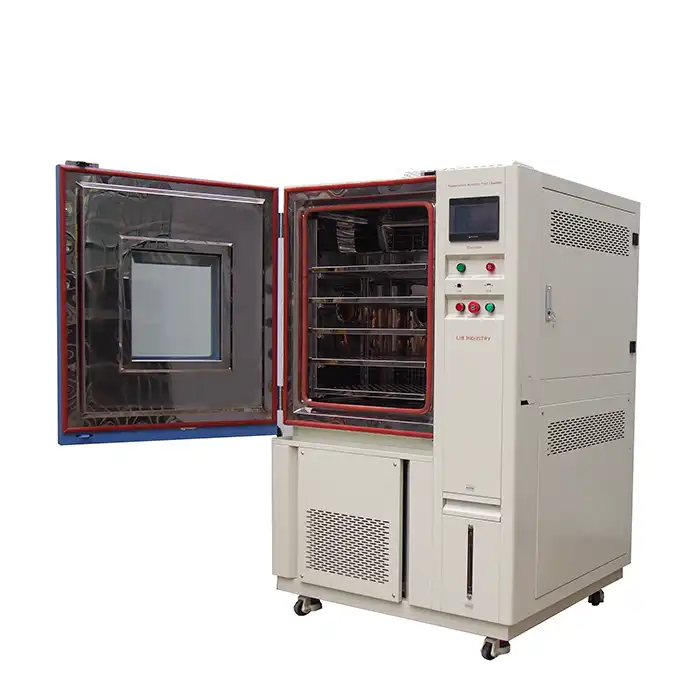

Standard Configuration | 1 Cable hole with plug; 2 shelves |
Performance Details
|
|
|

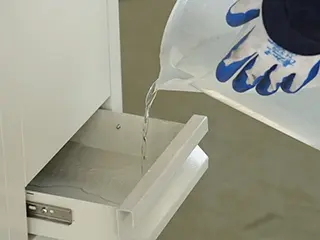

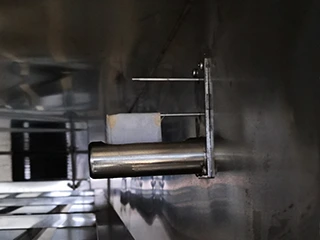

Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm | Add water Fill water manually through the tank Access automatic water intake Water shortage alarm | Sensor PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees. |
|
|
TH-225 Temperature Humidity Climate Chamber Applications
1. Electronic testing: Testing electronic components and devices to ensure their functionality and reliability under different environmental conditions.
2. Pharmaceutical stability testing: Evaluating the stability and shelf life of pharmaceutical products by subjecting them to various temperature and humidity conditions.
3. Automotive testing: Testing the performance and durability of automotive components and materials under extreme weather conditions.
4. Aerospace testing: TH-225 Temperature Humidity Climate Chamber simulating the conditions that aerospace components and materials may experience during flight, such as high altitude and temperature variations.
5. Material testing: Assessing the physical and chemical properties of materials, such as plastics, metals, and composites, under different temperature and humidity conditions.
Key Features
●Low Types: -20℃/-40℃/-60℃/-70℃/-86℃
●Humidity range: 10% - 98% RH
●Temperature change rate: 5℃/10℃/Minute
●50L/80L/100/225L/500/1000/1500L
●Type: Benchtop, Reach-in, Walk In.
Quality and Safety
Our manufacturing facility is ISO 9001certified for quality and environmental management. TH-225 Temperature Humidity Climate Chamber comply with international safety standards such as CE, CSA, ISO17025 etc. They meet EMC regulations for electromagnetic compatibility.
