Accelerated Shelf Life Testing Equipment
Name: Temperature Humditiy Chamber
Model: TH-500
Lowest Temperature: -20℃/-40℃/-60℃/-86℃;
Temperature Range:-86℃～+150 ℃;
Cooling Type: Air cooled
Refrigerant: Environmental refrigerant;

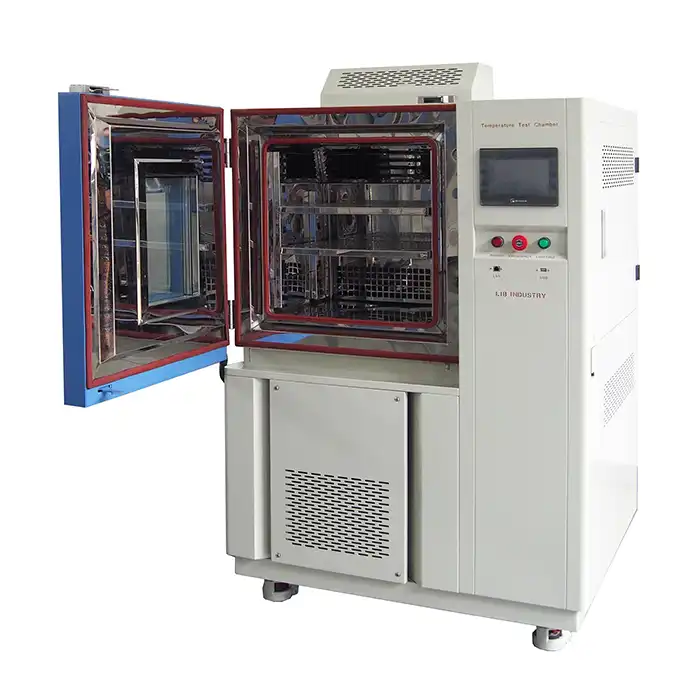

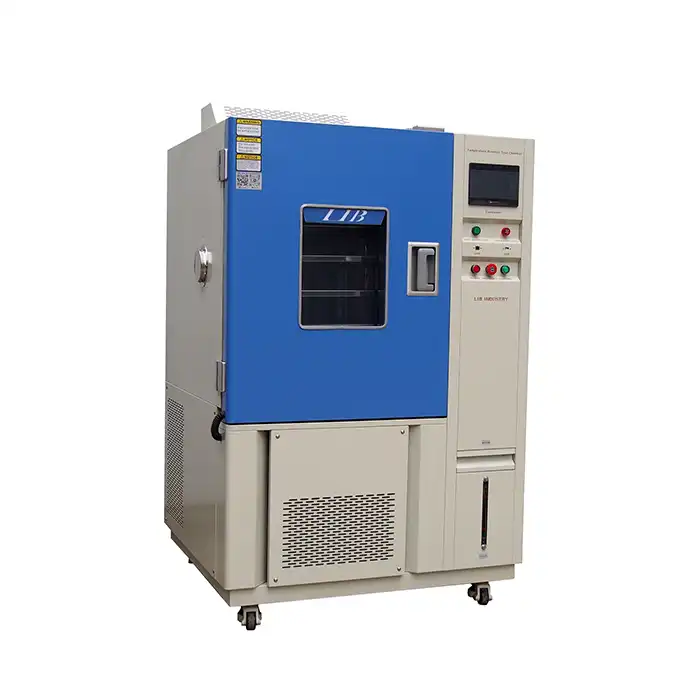

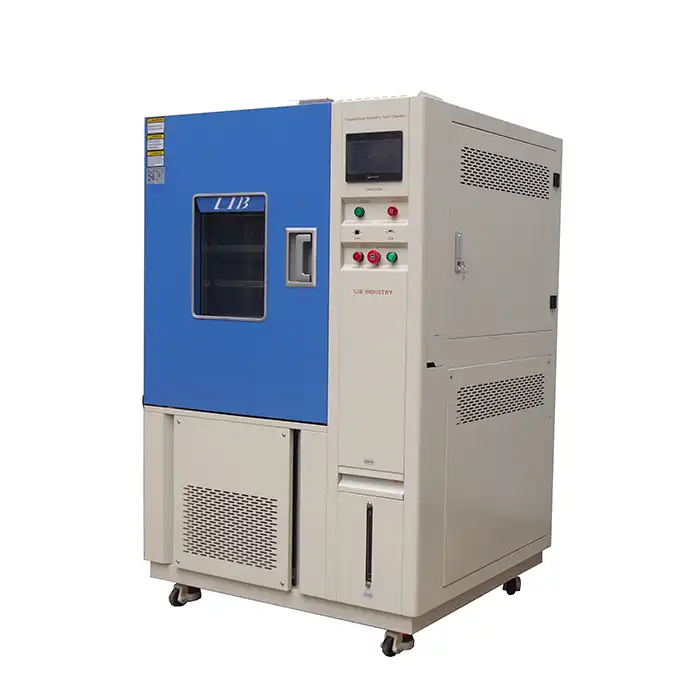

LIB Industry's Accelerated Shelf Life Testing Equipment
The Accelerated Shelf Life Testing Equipment is designed to replicate a wide range of environmental conditions. It consists of a sealed chamber, temperature control unit, humidity control unit, and often includes additional features to simulate other environmental factors such as wind, rain, and sunlight.
The food shelf life testing climate chamber is capable of maintaining a stable environment within the specified temperature and humidity ranges.
Technical Parameters
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Performance Details
|
|
|

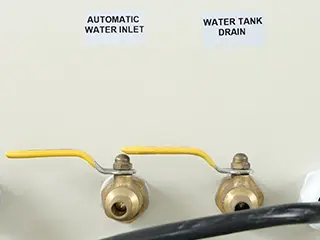

Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing | Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable. |
|
|
Accelerated Shelf Life Testing Equipment Key Features
●Its precise control over temperature and humidity allows for accurate and repeatable testing conditions.
●The chamber’s insulation ensures that the conditions within remain stable, even when the external environment changes.
●The chamber is also designed to be durable and reliable, ensuring that it can withstand the rigors of continuous use.
After-Sales Support
comprehensive onsite training on usage and maintenance
technical queries and troubleshooting
preventive maintenance contracts for regular servicing and annual calibration
36 months warranty
The Application of Accelerated Shelf Life Testing Equipment
Accelerated shelf life testing equipment is specialized devices used in various fields to simulate and study different environmental conditions. Applications of ESCs include:
1. Material testing: food shelf life testing climate chamber is used to test the performance and durability of materials under different environmental conditions. For example, they can simulate extreme temperatures, high humidity, or corrosive environments to assess how materials react and degrade over time. This is particularly useful in industries like automotive, aerospace, and construction.
2. Biological research: Accelerated shelf life testing equipments are used in biological research to create controlled environments for studying the effects of temperature, humidity, and light on various organisms. This includes studying plant growth and development, microbial activity, and the impact of environmental factors on human health.
