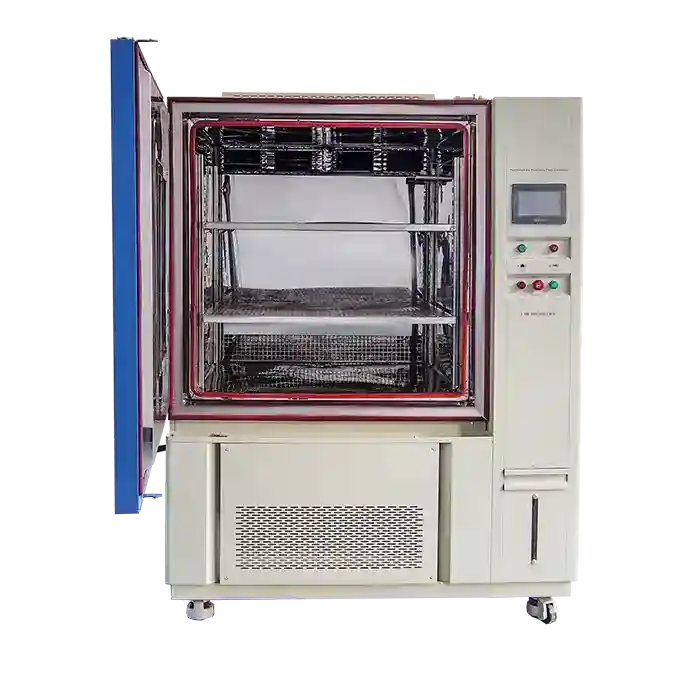

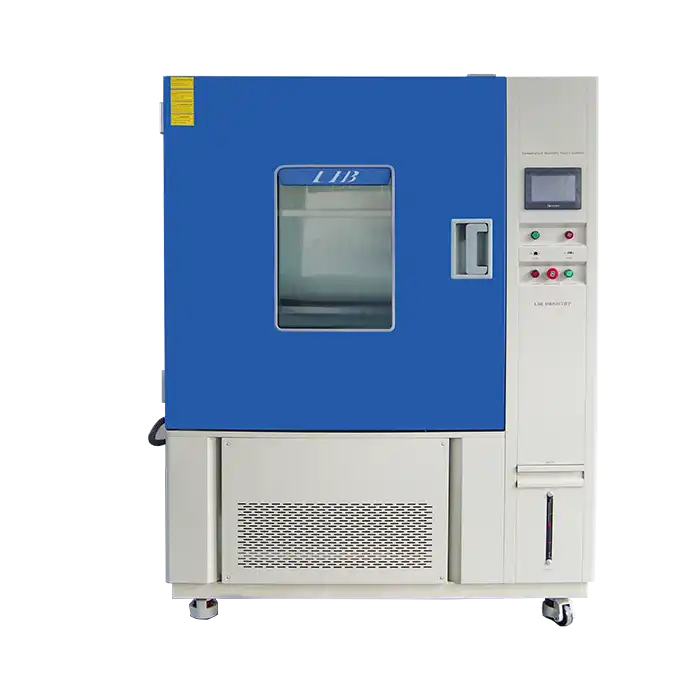

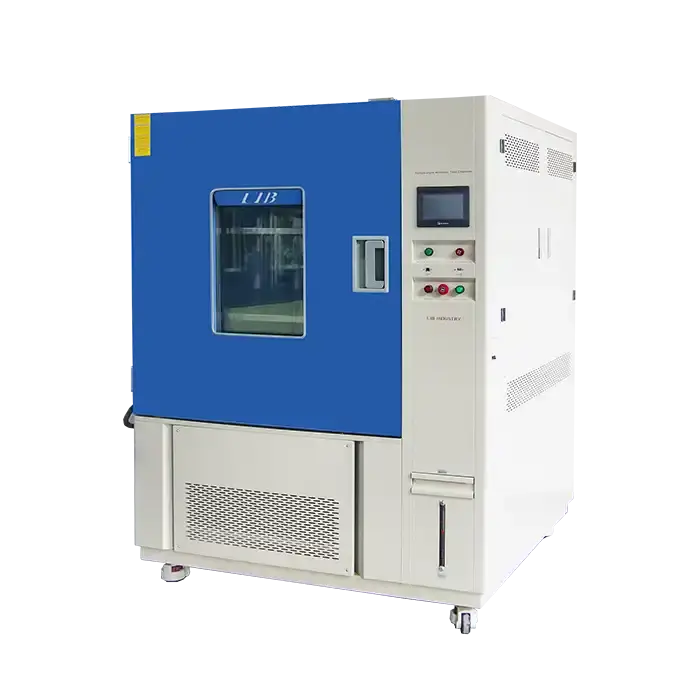

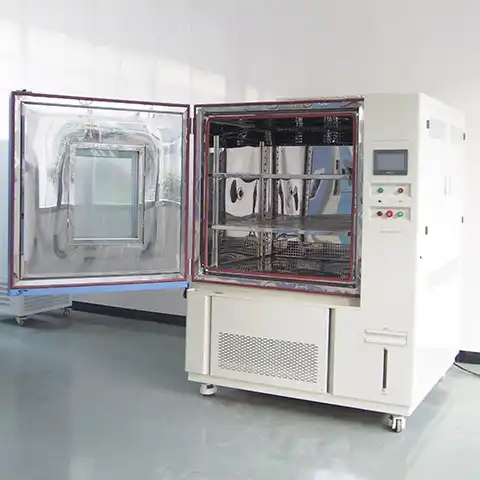

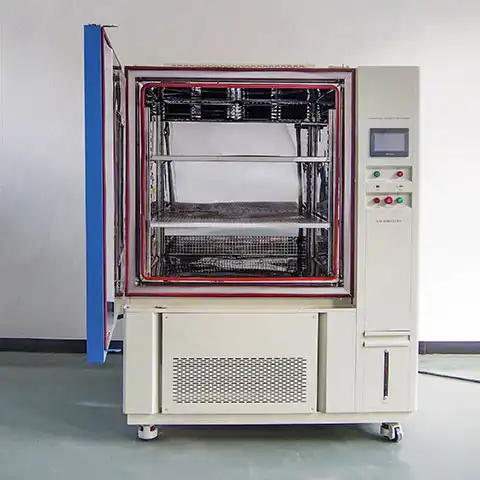

Temperature Calibration Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-70℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Temperature and Humidity condition
Touch-screen programmble controller,Ethernet access
Safety options for testing lithium-ion batteries
Temperature Calibration Chamber Manufacturer & Supplier
lIB industry's temperature calibration chamber is a controlled environment used to calibrate and verify the accuracy of temperature sensors and thermometers. It is a specially designed chamber that can simulate a wide range of temperatures, from extreme cold to high heat, with precise control and stability.
The chamber typically consists of an insulated enclosure with temperature control systems, such as heating elements, cooling systems, and temperature sensors. It also includes a control panel or computer interface to set and monitor the desired temperature.
Technical Specifications
Model | T-100 | T-225 | T-500 | T-800 | T-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 3 ℃ / min | ||||
Heating Rate | 1 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
Air Circulation | Centrifugal wind fan | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Product Details
|
|
|

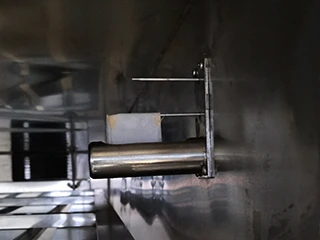

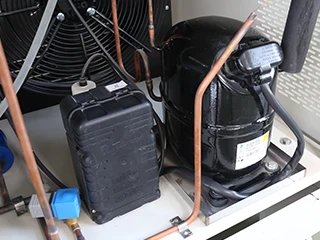

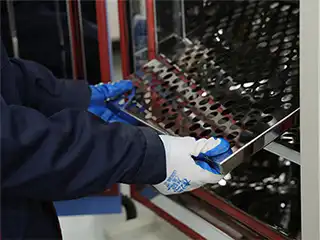

| Sensor PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees. | Sample shelf The height of the shelf is adjustable and can be removed Conducive to the air circulation | Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant |
|
|
Temperature Calibration Chamber Functions
The Temperature Calibration Chamber is designed to provide precise and stable temperature environments for calibrating temperature-sensitive instruments. It offers a reliable platform for calibration processes, contributing to the accuracy of measurements in various applications.
Key Features and Advantages
1. High precision and stability for accurate calibration.
2. Rapid temperature changes for increased efficiency.
3. Customizable options to accommodate diverse calibration needs.
4. User-friendly interface for easy operation.
5. Robust construction ensures durability.
Temperature Calibration Chamber Applications
Our Temperature Calibration Chamber finds applications in industries such as electronics, pharmaceuticals, aerospace, and research laboratories.
Electronics
Pharmaceuticals
Aerospace
Research Laboratories
