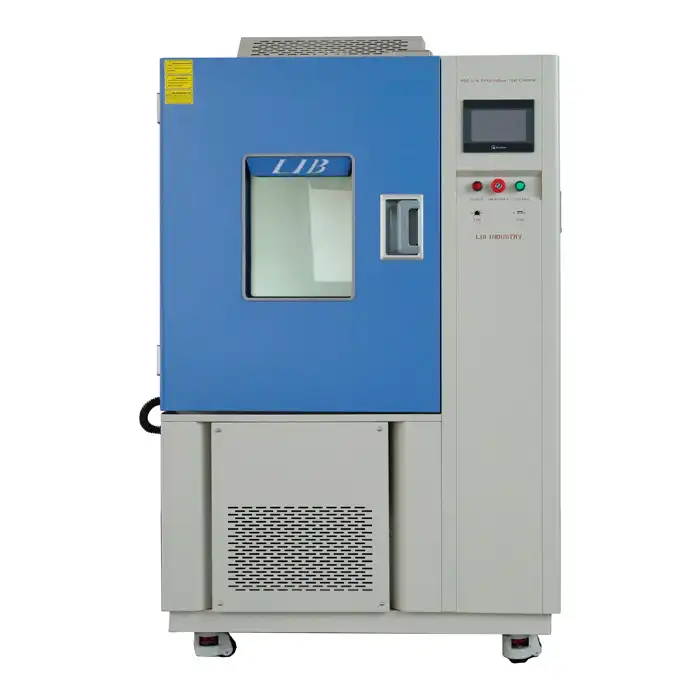

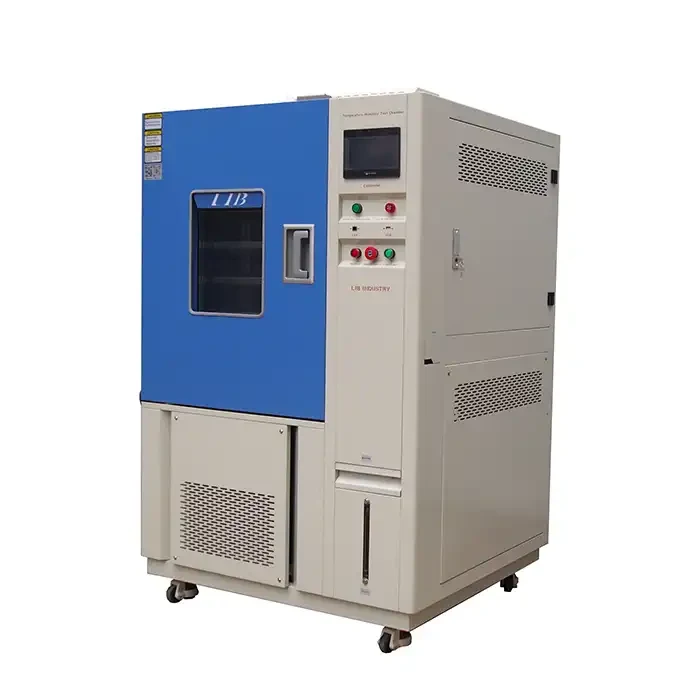

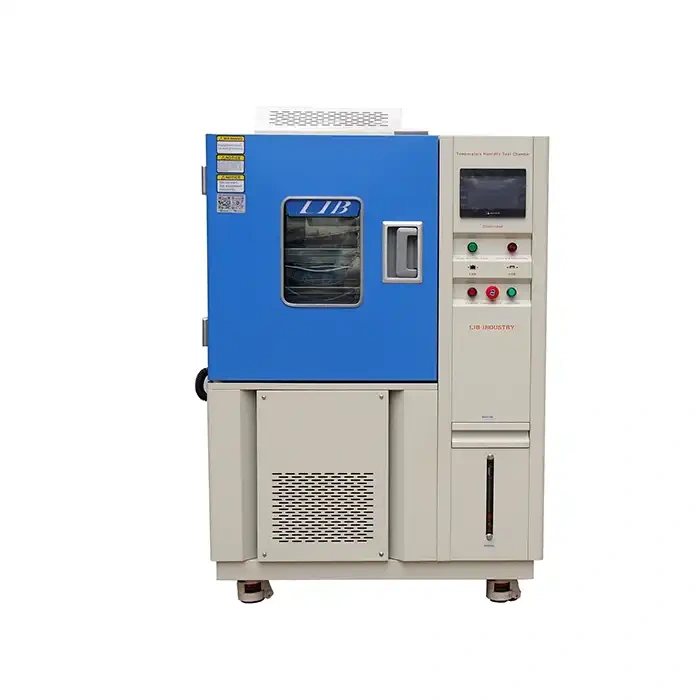

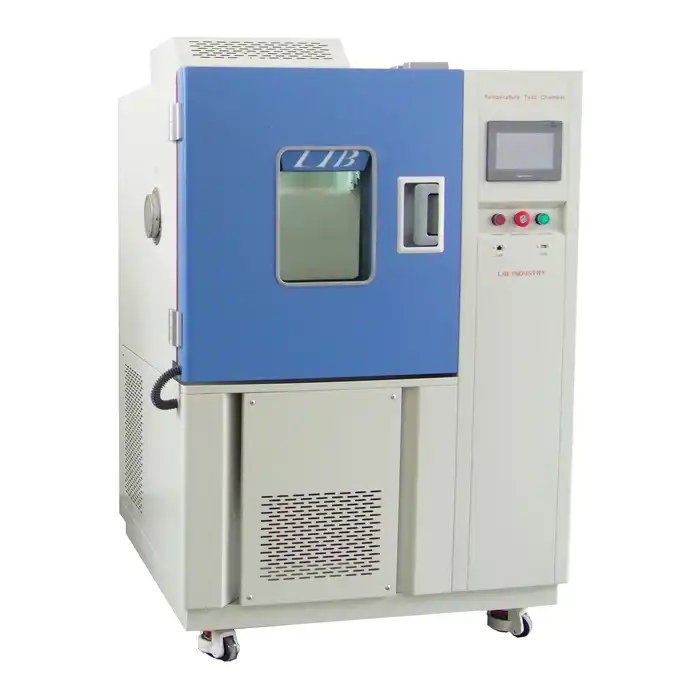

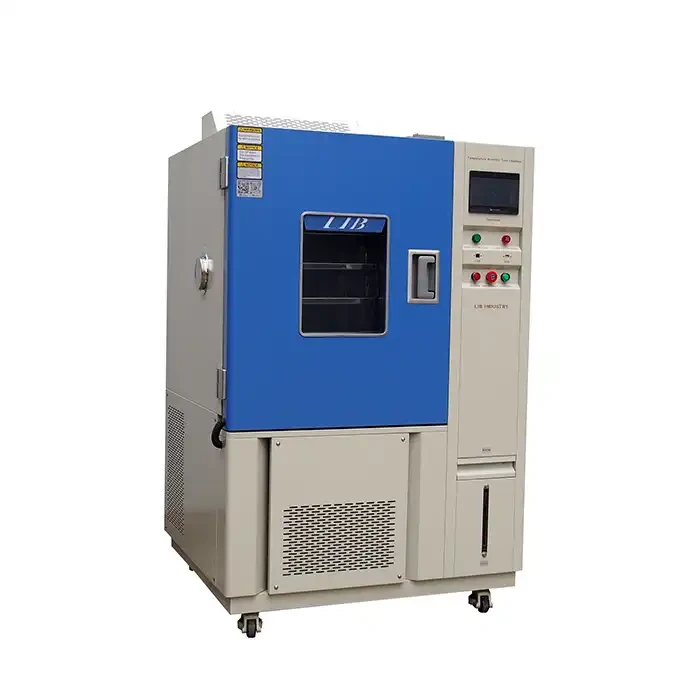

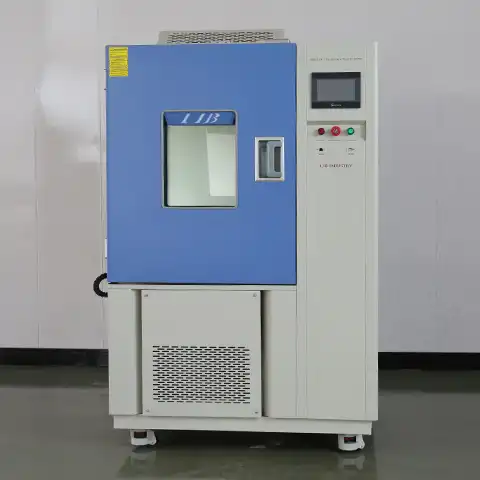

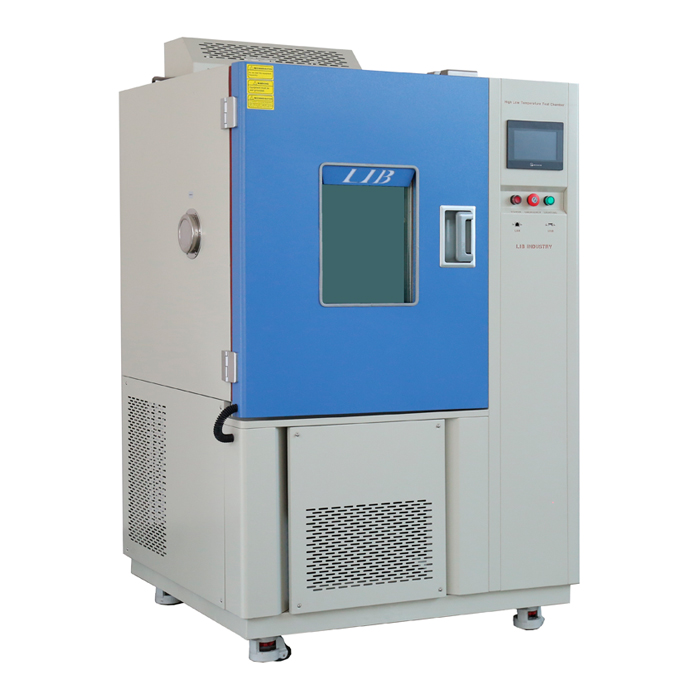

Temperature Humidity Test Chamber
Model: TH-800
Temperature Range:-70℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Water purification and recirculation system
Access port to power the sample
Standard and Custom Chambers
Temperature Humidity Test Chamber Manufacturer & Supplier
LIB industry's temperature humidity test chamber is used to simulate various environmental conditions such as temperature and humidity for testing purposes.The temprature range is from -40℃ to +180℃, and humidity ranging from 20% -98%RH.
The temperature humidity test chamber include temperature control, humidity control, programmable control, air circulationand safety protection systems. more than 73 models for you choose.
Technical Specifications:
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details:
|
|
|

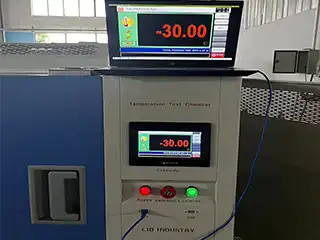

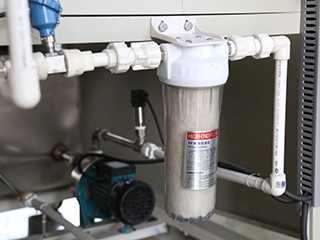

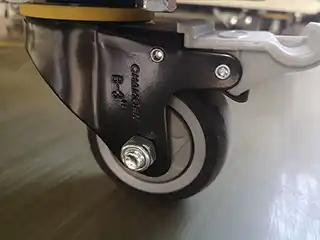

| PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable | Water Re-circulation Water purifier: mainly purification from water source to water tank. Automatic water supply |
|
|

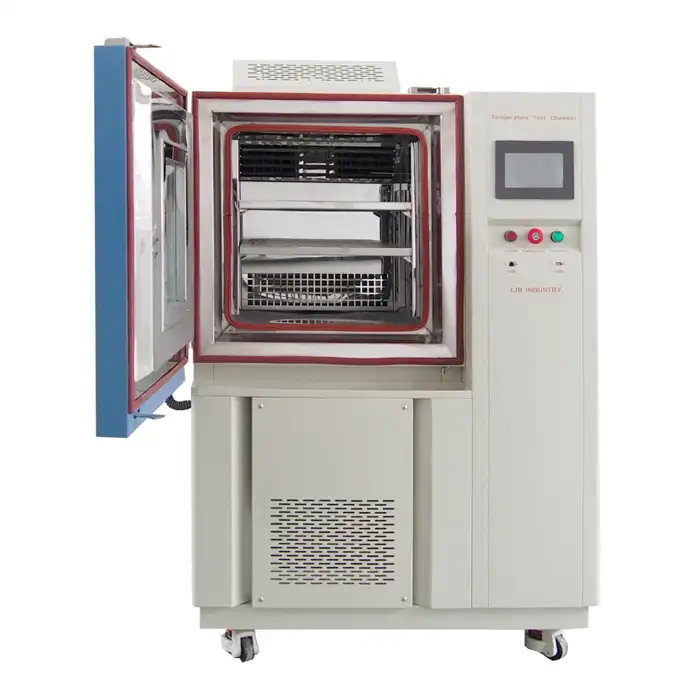

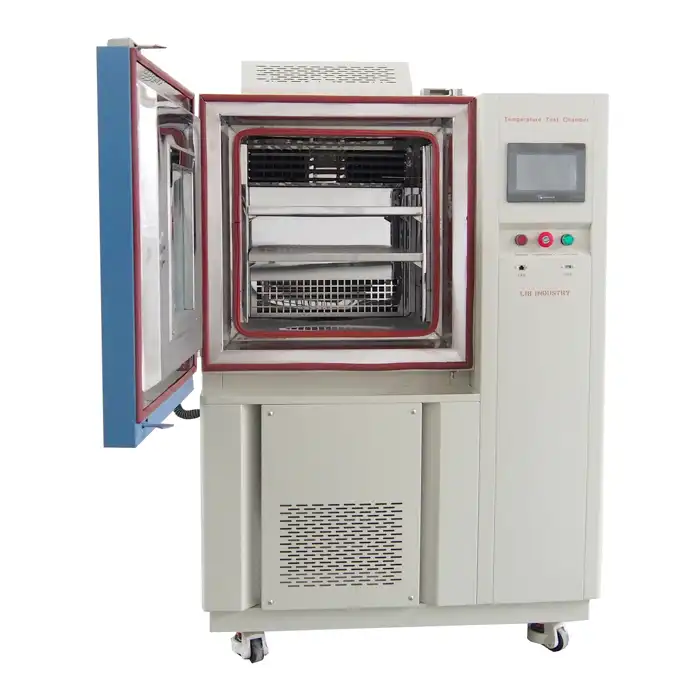

Construction:
ThisTemperature Humidity Test Chamber is constructed with an insulated enclosure that houses several key components:
Humidity System: Responsible for controlling and regulating the humidity levels within the chamber.
Heating and Cooling Devices: These devices enable the adjustment and maintenance of specific temperature settings within the chamber.
Air Circulation Fans: Essential for ensuring uniform distribution of temperature and humidity throughout the chamber, promoting consistent testing conditions.
Control System: Manages and monitors the settings of temperature and humidity to maintain precise and desired conditions for testing.
Interior Material: Typically crafted from stainless steel, providing a durable and corrosion-resistant surface for the chamber's interior, ensuring longevity and cleanliness.
Temperature Humidity Test Chamber Applications:
Our temperature humidity controlled chamber find applications across diverse industries such as pharmaceuticals, automotive, aerospace, electronics, and materials testing. They are ideal for reliability testing, accelerated aging tests, shelf-life studies, and more.
FAQ:
1. What is the purpose of a Temperature Humidity Test Chamber?
A Temperature Humidity Test Chamber is used to simulate and control specific temperature and humidity conditions for testing materials, products, or components. It helps assess their performance, durability, and reliability under various climate scenarios.
2. How accurate are the temperature and humidity settings in these chambers?
These chambers are designed to maintain highly accurate and precise temperature and humidity levels, often within tight tolerances, ensuring reliable and consistent testing conditions.
3. Can different temperature and humidity conditions be simulated simultaneously in a single chamber?
Yes, many modern chambers allow for multiple testing conditions to be simulated simultaneously.
