Stability Test Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-120℃;
Temperature Range:-120℃～+150 ℃;
Humidity Range:10% ~ 98% RH;
Comprehensive Line of Environmental Chambers
50L/80L/100/225L/500/1000/1500L
Ranging in size from small benchtop units to large walk-in chambers
Stability Test Chamber Manufacturer & Supplier
Our Stability Test Chamber from LIB industry sets the industry standard for precision and reliability in stability testing. It serves as an indispensable tool for industries such as pharmaceuticals where the quality and longevity of products are paramount.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details
|
|
|

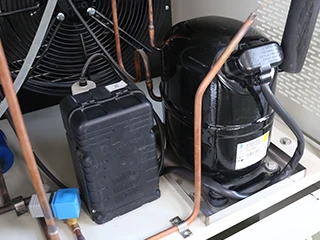

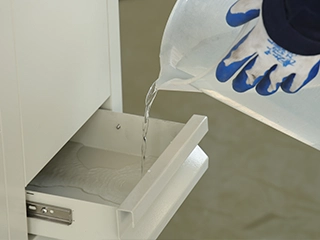

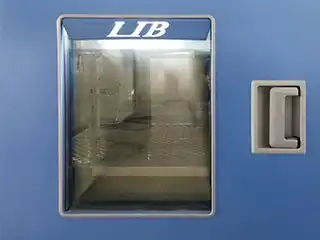

Water tank Located above the level gauge High and low water level alarm, water shortage lights and sound. | Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant | Viewing Window Double layer insulating glass 8cm thick, made of tempered glass. Can clearly observe samples in testing |
|
|
The Functions of Stability Test Chamber
The Stability Test Chamber is equipped with advanced functionalities such as programmable temperature and humidity settings, real-time monitoring, data logging, and remote access capabilities. This ensures accurate and reliable test results, making it an indispensable tool for research and development processes.
Features and Advantages
Robust and durable construction for long-term reliability.
Precise and uniform temperature and humidity control.
User-friendly interface with programmable settings.
Advanced safety features to protect both the chamber and the tested products.
Modular design for easy customization based on specific testing needs.
Applications
Our stability test chamber finds applications across a wide range of industries, including pharmaceuticals, electronics, automotive, and aerospace. It is ideal for stability testing of pharmaceutical drugs, electronic components, and materials subjected to varying environmental conditions.
